30 Culligan® Smart Controller (GBE) for Softeners and Filters
30 Cat. No. 01021161
Installing Accessories
Flow Sensor Meter Connections (Optional)
The Smart Controller is capable of detecting the signal from a Hall effect sensor device to provide flow rate information,
totalization and volume based regeneration initiation.
There are several different types of flow measuring devices and differences in the wiring of the devices to the Smart Con-
troller circuit board do exist. See Figure 17 below.
For all but duplex alternating, a meter needs to be connected to each circuit board at the location shown below in the
drawing. For duplex alternating meter connection, please refer to page 41, Duplex Alternating with Meter Option.
See “Programming the External Flow Meter” on page 31 and “Appendix Flow Device K-Factor Data” on page 95 for K factors.
(optional)
2535 & 2536
Signet
Black
Shield
Red
Black Green Red
Paddle Wheel
(optional)
Seametrics
Green Red Black White
SINGLE OR PROGRESSIVE
Bare
Red Green Black
Red
Black
Wht/Clear
2" Autrol Turbine Meter
(optional)
Black
White
Red
All Clack Meters
(optional)
Connector
located at end
of meter cable
Connector 01010255
included with controller

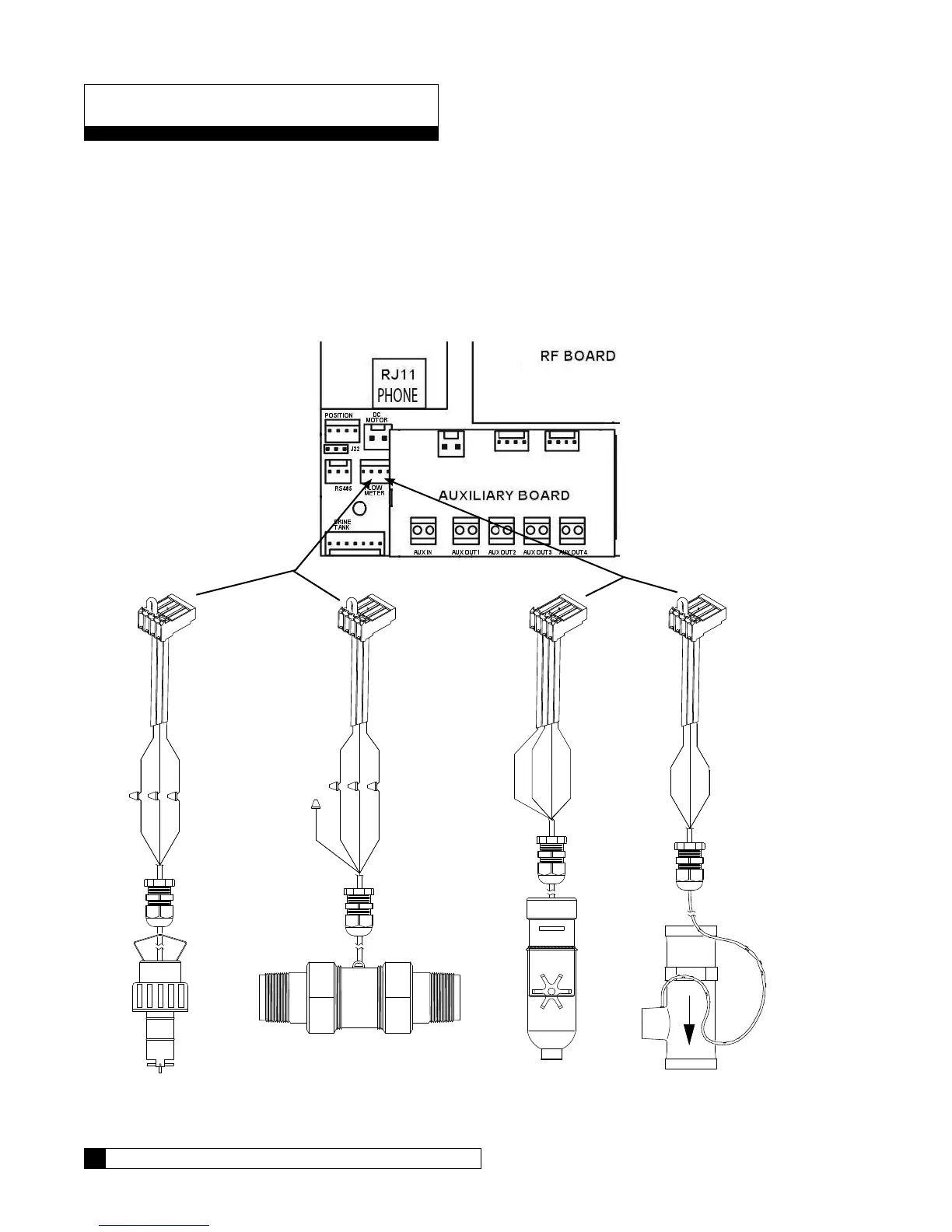

Figure 17. Flow measuring devices.
