Installing Accessories 33

Cat. No. 01021161

2.5V

METAL TABS

Connect to white

connector on main

power cord

24VAC

on TRANSFORMER

Power to circuit

board 2.5VAC

only required

for Aqua-Sensor

installations

Power to circuit

board 24V

POWER SUPPLY

ONE transformer is

required for each Control

Red

Black

Blue

White

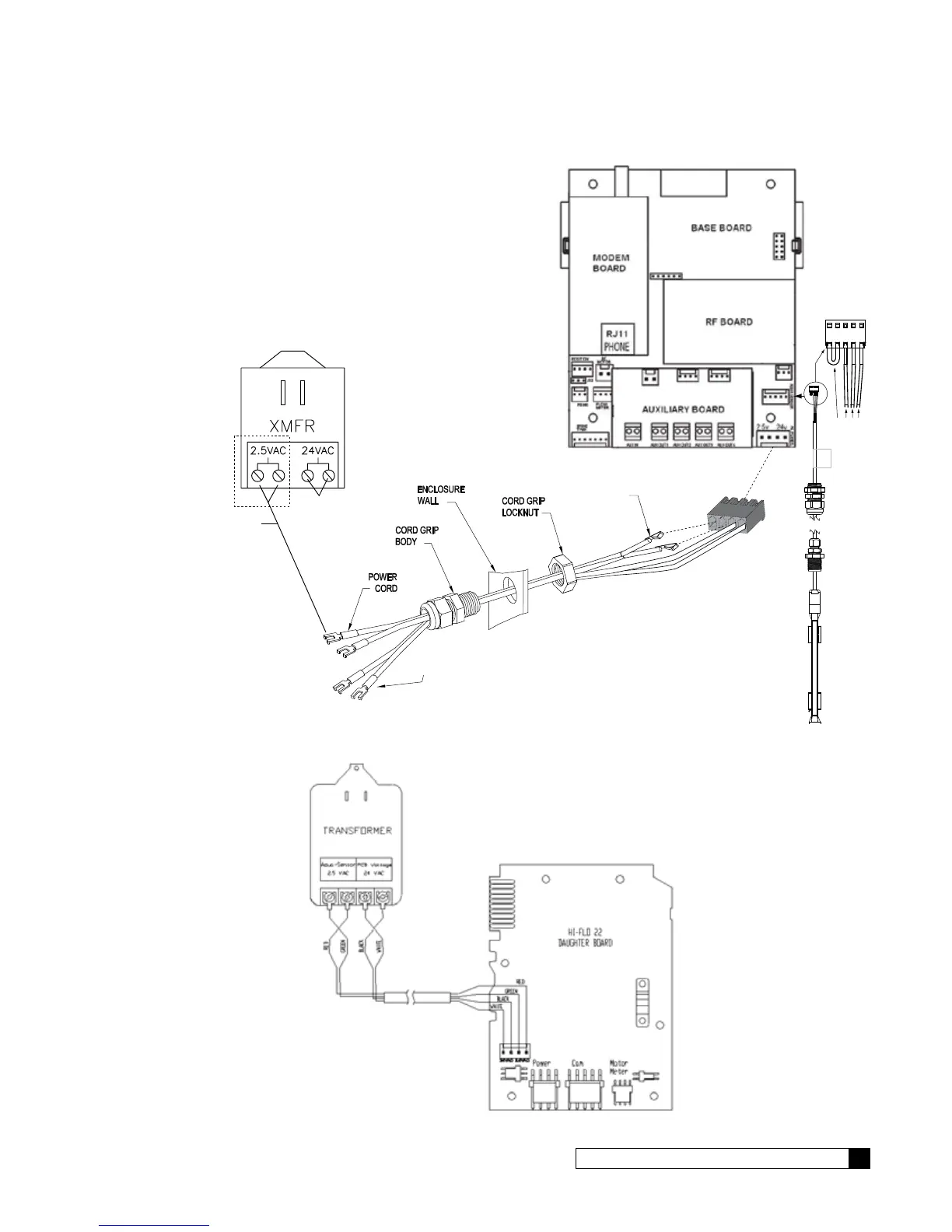

Figure 18. 2.5 VAC Aqua-Sensor

power connection (CSM and Hi-Flo 50).

Figure 19. 2.5 VAC Aqua-Sensor

power connection (Hi-Flo 22).

Table of Contents3
Introduction5
Take Control of Your System and Your Productivity6
Smart Controller Features6
Optional Smart Controller Features7
Basic Principles8
- Modes of Operation9
- Time Clock9
- Flow Meter/Sensor9
Operation9
- Electrical Installation10
- Wiring Procedures and Diagrams11
- Preparation11
- Cable Routing12
- Smart Controller Overview13
Smart Controller Circuit Board Layout14
- 24 V Power Connection15
- Wiring the Smart Controller Power Cord15
- Smart Controller Circuit Board Outputs15
- 24 V Transformer16
- Transformer and Smart Controller Circuit Board16
- Brine Refill Valve Wiring17
- Install the Solenoid Coil and Connector17
- Install the Cord Grip17
- Wire the Valve17
- Program Data Input18
- Single Tank Systems18
- Capacity Settings18
Smart Controller Programming18
Navigating the Menus and Keypad19
- Typical Commercial Setup22
- Pre-Programming Information Checklist22
- First Time Setup Procedure23
- Set up Other Values23
First Time Set up23
- Completed First-Time Setup25
- System Setup26
- Advanced Setup26
- Default Settings26
Customizing Set up26
- Other System Setup Values27
- Regeneration Setup28
- Other Regeneration Setup Values28
- Cycle Times Setup29
- Cycle Times Settings29
- Regeneration Triggers Setup30
- Regeneration Triggers Settings31
- Accessories33
- First Time Setup33
Softener and Filter Program Log33
Flow Sensor Meter Connections (Optional)34
Installing Accessories34
- Programming the External Flow Meter35
- Cat. No.35
- Flow Profiles36
- Programming Flow Profiles for a Hi-Flo 22 WS-9036
- Aqua-Sensor36
- Programming the Aqua-Sensor38
- Configuring the Aqua Sensor38
- Installing the Smart Brine Tank (SBT Probe) in to the Brine Tank39
- Configuring the Smart Brine Tank (SBT) Probe Settings39
- Brine Reclaim41
- Multi-Tank Systems43
- Communication Cable—Multiple Units43
- Blocking Solenoid Connection43
- Progressive Flow or Parallel Flow44
- Setting the Jumpers for Progressive Flow44
- Duplex Alternating with Meter (Optional)45
- Duplex Alternating Cable45
- Setting up a Multi-Tank System46
- Multi-Tank System Settings46
- Progressive Flow Update48
- Blocking Solenoid Valve for Multi-Tank Alternating Operation49
- Sequence of Operation50
- Smart Controller Board with Solenoid Connection50
- Auxiliary Board Activation Timing51
- Auxiliary Outputs51
- Auxiliary Board51
- AUX OUTPUTS Settings52
- Auxiliary Output 2 Example54
- Auxiliary Input (Optional)55
- AUX Input Setup56
- AUX Input Settings56
- Installing the Modem (Optional)57
- Installing on the Smart Controller Board57
- Installing in the Remote57
- GBE Modem Setup58
- GBE Modem Settings58
- Test Modem60
- Possible Results60
- Installing the Wireless Remote61
- Control Valve Setup62
- Control Valve Settings62
- Wireless Remote Setup63
- Wireless Remote Settings63
- Check Signal Strength64
- Chlorinator/Relay Board/Aux5 Setup65
- Alarm Relay Board/Chlorinator Settings66
- Smart Controller Alarm Signal Output67
- Setting the Beeper Mode68
- Beeper Mode Settings68
- Service Phone Number69
- External Filter69
- External Filter Settings70
- Date/Time Settings71
- Set Date/Time71
- Menu Lockout72
- Menu Default—Rerun First Time Setup72
- Control Valve Information73
- Control Valve Information Settings73
Service and Maintenance73
- Quick Manual Regeneration75
- Standard Manual Regeneration75
- Standard Regeneration Manual Mode Settings75
Manual Cycling76
Error and Alert Codes77
- Advanced Statistics79
- Flow Statistics79
Diagnostic Screens79
- Regeneration Statistics80
- Tank Statistics81
- Firmware Version81
- Serial Number81
- Last Power up81
- Check Sensors82
- Check Sensors Settings82
- Test Wireless, Progressive Flow, and Motor Control83
- Test Progressive Flow84
- Motor Control Diagnostic84
- Aux out Status84
- Aux out Test84
- Use Data Port85
- Test Phone Line85
Menu Overview86
Smart Controller (GBE) Parts and Accessories90
First Time Setup with Delayed Regeneration91
Appendix A Programming Examples91
- Duplex Progressive Flow with Aqua-Sensor92
- Duplex Alternating Flow93
- Triplex with Parallel Flow/Brine Reclaim94
- CSM Filter (Single Time Clock Regeneration)95
- Culligan Smart Controller—Data Port Output96
- Single Water Softener or Filter Controlled by the Smart Controller96
Appendix B Data Port Output96
- Progressive Flow System of Smart Controller-Controlled Water Softeners97
- Electrical Connections97
- Test the Data Port98
- Send a Test Message from the Smart Controller99
- Mini Report100
Appendix C Flow Device K-Factor Data101
Culligan Softener and Filter Program Log102
Index103
