The System Log is entered using OBP.
Enter OBP Mode.
Select System from the menu.
Select Diagnostics from the menu.

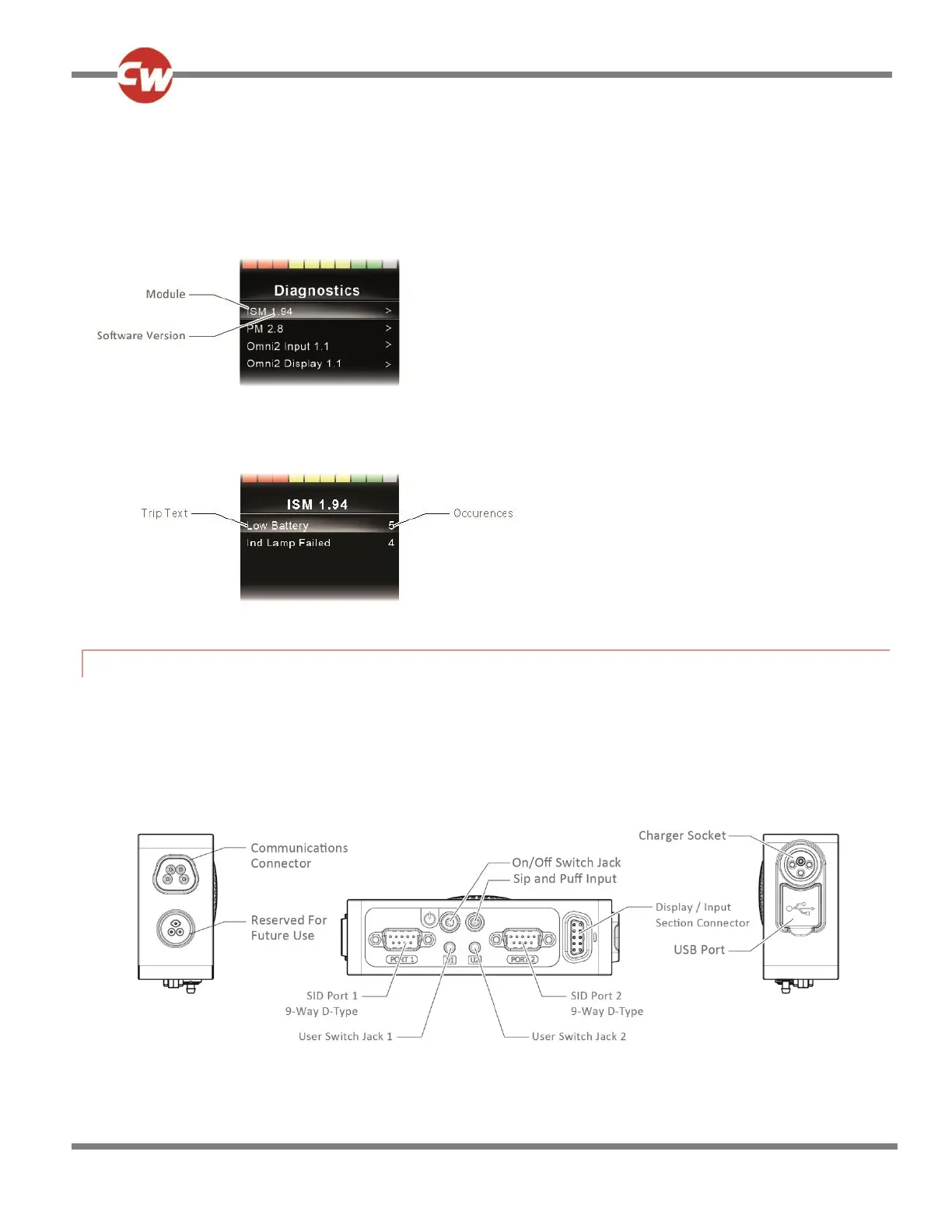

This displays the Diagnostics screen that shows the connected modules and the version history
If a Module has had no trips then the message No Entries will be displayed, otherwise something similar to the
following screen will be displayed when entering the module’s sub-menu.
2.3 CONNECTIONS
The R-net system has various connections that are referred to by the diagnostic text. These connections can be on the Power
Modules (PM / ELPM), Joystick Modules (JSM / JSM-LED), Seating and Lighting Modules (ISM / SM / LM) and the Omni2
Sections (Omni Display / Omni Input). The following diagram shows the Omni2 Section connections. For details of other R-net
module connections, refer to the R-net Technical Manual SK77981.
