R-net Omni2 Technical Manual | Chapter 2 – Operation | 39

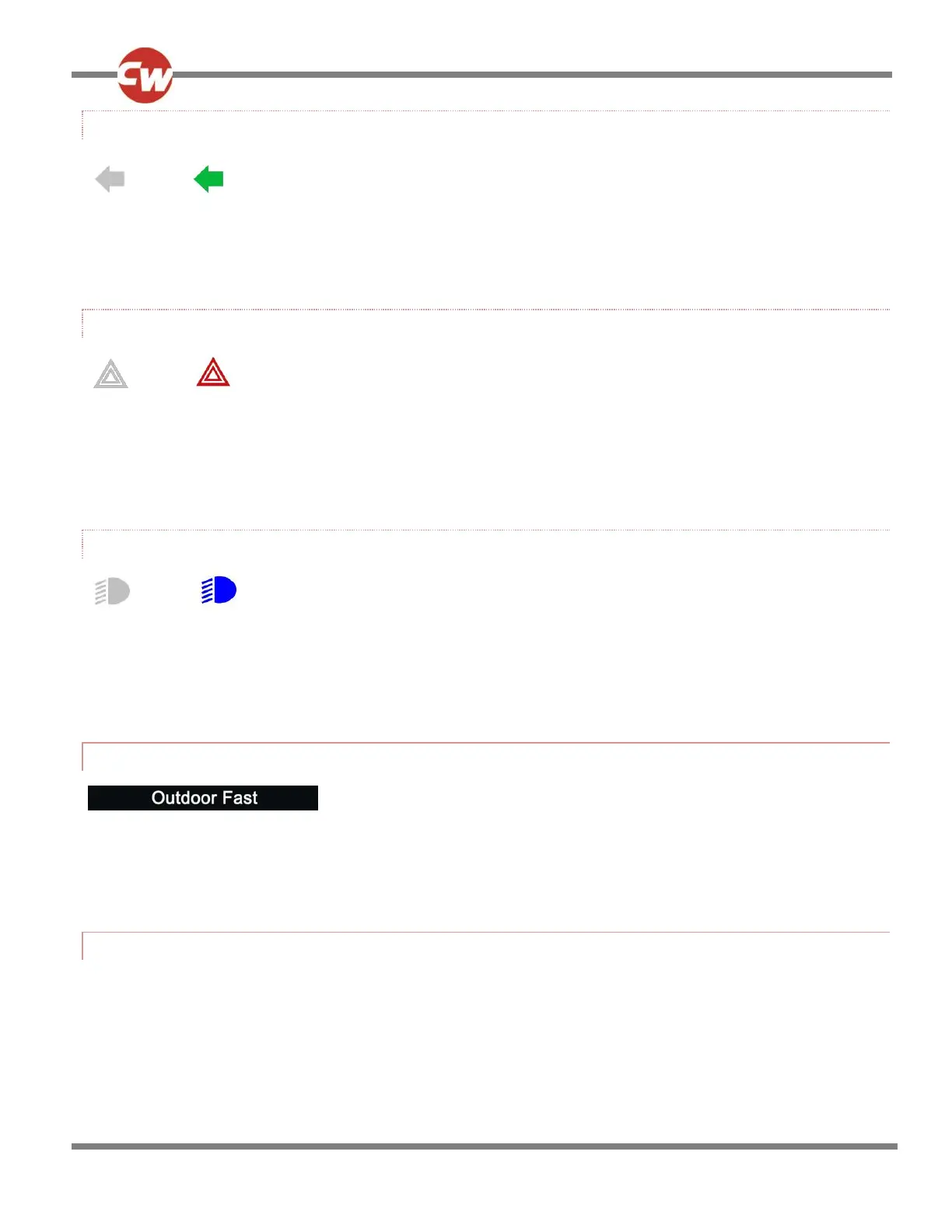

11.2.7 INDICATOR ICONS
Off
On
The Indicator icons will flash when the respective indicators are active.
NOTE (OP, HP, IN)
The Indicator icons will only be visible when a module supporting lighting, e.g. ISM-L, is connected to the system.
11.2.8 HAZARD ICON
Off
On
The Hazard and Indicator icons will flash when the ‘Hazards’ option is activated.
NOTE (OP, HP, IN)
The Hazard and Indicator icons will only be visible when a module supporting lighting, e.g. ISM-L, is connected to the
system.
11.2.9 LIGHTS ICON
Off On
The Lights icon will be switched on when the lights have been activated.
NOTE (OP, HP, IN)
The Lights icon will only be visible when a module supporting lighting, e.g. ISM-L, is connected to the system.
11.3 TEXT BAR
This area of the screen displays text relevant to the operating condition of the control system. Example text strings would be
Profile Name, Mode Name or Axis Name. These text strings are programmable. Refer to the R-net Technical Manual SK77981
– Programming for further details.
11.4 MAIN SCREEN AREA
This area will contain different information dependent on the current operating Mode of the control system. The area is also
used to display general system information, when necessary.
