Curtiss-Wright | PG Drives Technology
12 | R-net Omni2 Technical Manual | Chapter 1 - Installation

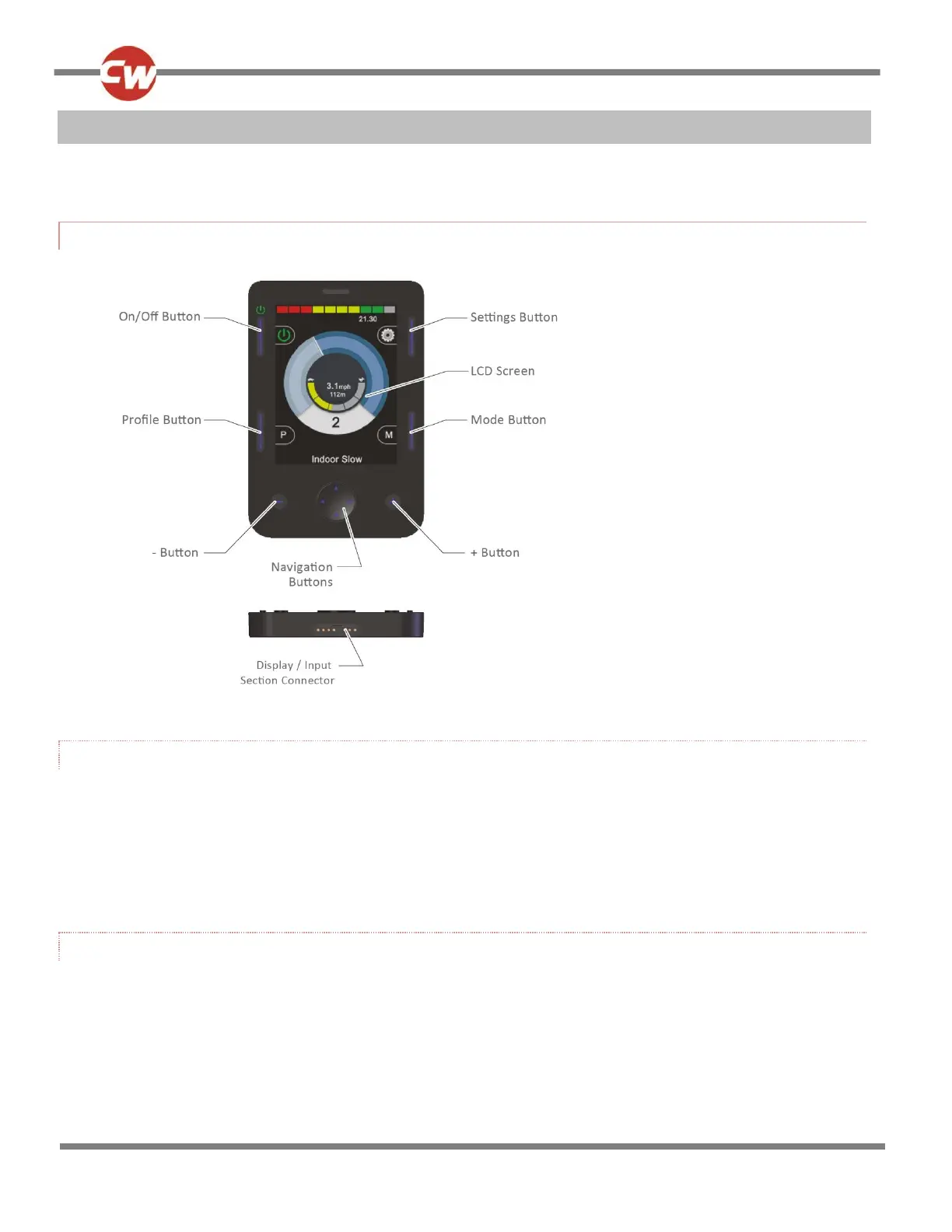

2 CONTROLS AND CONNECTIONS
The Omni2 comprises of two sections a Display Section and an Input Section.
2.1 DISPLAY SECTION
2.1.1 LCD SCREEN
A full color, backlit LCD screen that can show Omni2 configuration details and operating information to the installer and user.
Further details of actual displays are given in the LCD Screen Details section in Chapter 2 and throughout this manual.
WARNING (OP, HP, IN)
Do not attempt to operate the powerchair if the LCD screen is damaged or malfunctioning. Curtiss-Wright accept no
liability for losses of any kind arising from failure to comply with this condition.
2.1.2 ON/OFF BUTTON
The On/Off button provides a complete power-down of the control system electronics. In addition to the button mounted on
the Display Section, there is facility for an optional, externally-mounted User Switch on the Input Section. Refer to the External
On/Off Switch Jack paragraph for further details.
