Configuring a Network with WDS-Managed APs
D-Link Unified Wired and Wireless Access System
July 2012 Page 703
D-Link UWS User Manual
15. From the WLAN > Administration > WDS Configuration > Link Configuration page, click Add to add the
links to the selected group. If multiple WDS groups are configured, make sure you select the appropriate
group ID before you click Add.

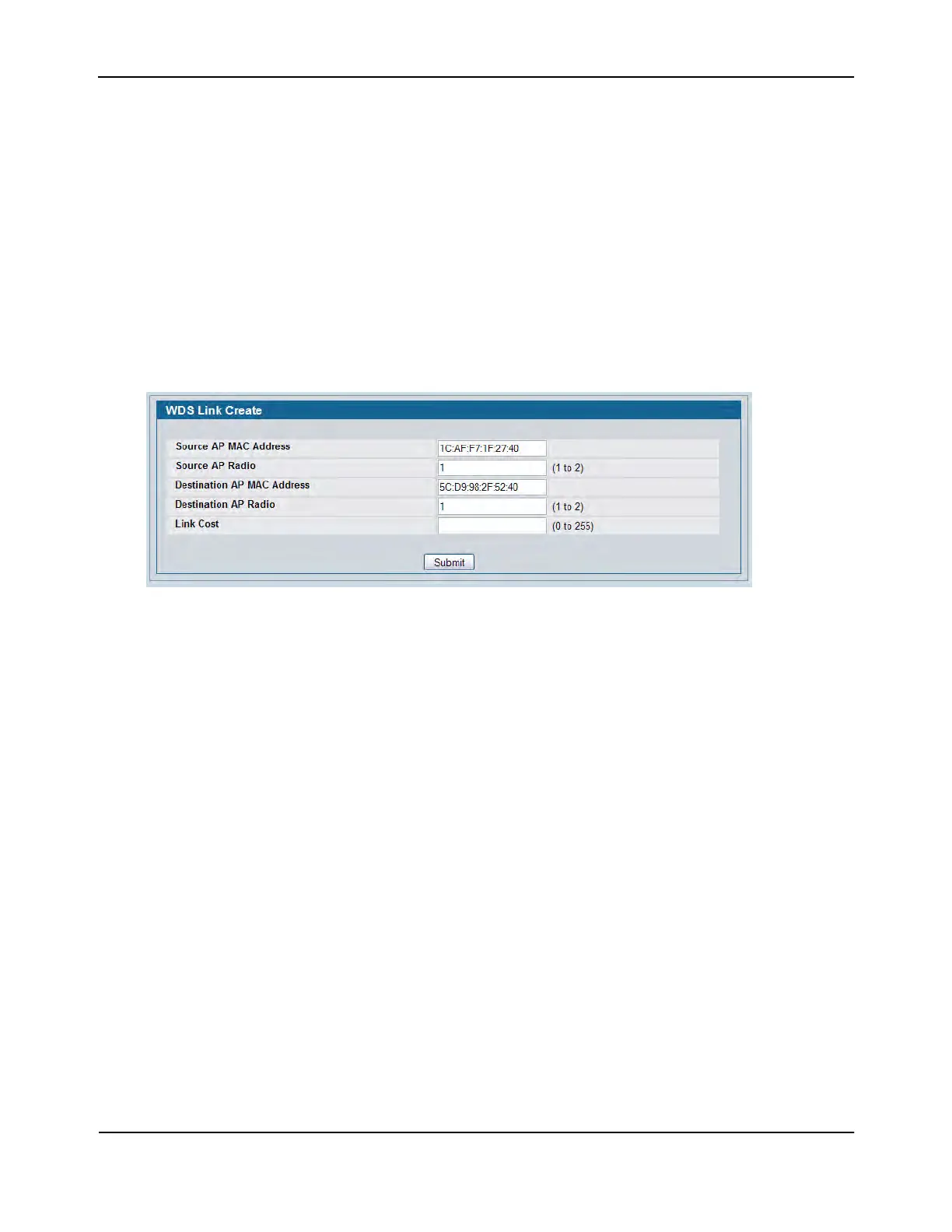

16. On the WDS Link Create page, configure the link between the Root AP and Satellite AP1 with the following
settings:
• Source AP MAC Address: 1C:AF:F7:1F:27:40 (Root AP)
• Source AP Radio: 1
• Destination AP MAC Address: 5C:D9:98:2F:52:40 (Satellite AP1)
• Destination AP Radio: 1
• Link Cost: You do not need to provide a value for this field because is disabled. By default, the link cost
is 40.
17. Click Submit.
18. On the WDS Link Create page, configure the link between the Root AP and Satellite AP2 with the following
settings:
• Source AP MAC Address: 1C:AF:F7:1F:27:40 (Root AP)
• Source AP Radio: 1
• Destination AP MAC Address: 5C:D9:98:2F:3F:00 (Satellite AP2)
• Destination AP Radio: 1
• Link Cost: You do not need to provide a value for this field because is disabled. By default, the link cost
is 40.
19. Click Submit.

D-Link DWL-6600AP Specifications

General

2.4 GHz	Yes
Networking standards	IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	450 Mbit/s
Power consumption (typical)	9.6 W
Internal	No
Placement	Ceiling, Wall
Certification	FCC Class B, CE Class B, C-Tick
Product color	Gray
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
WAN connection	Ethernet (RJ-45)
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	2
Security algorithms	64-bit WEP, 128-bit WEP, WPA, WPA2

Weight and Dimensions

Depth	77.5 mm
Width	156 mm
Height	- mm
Weight	500 g
