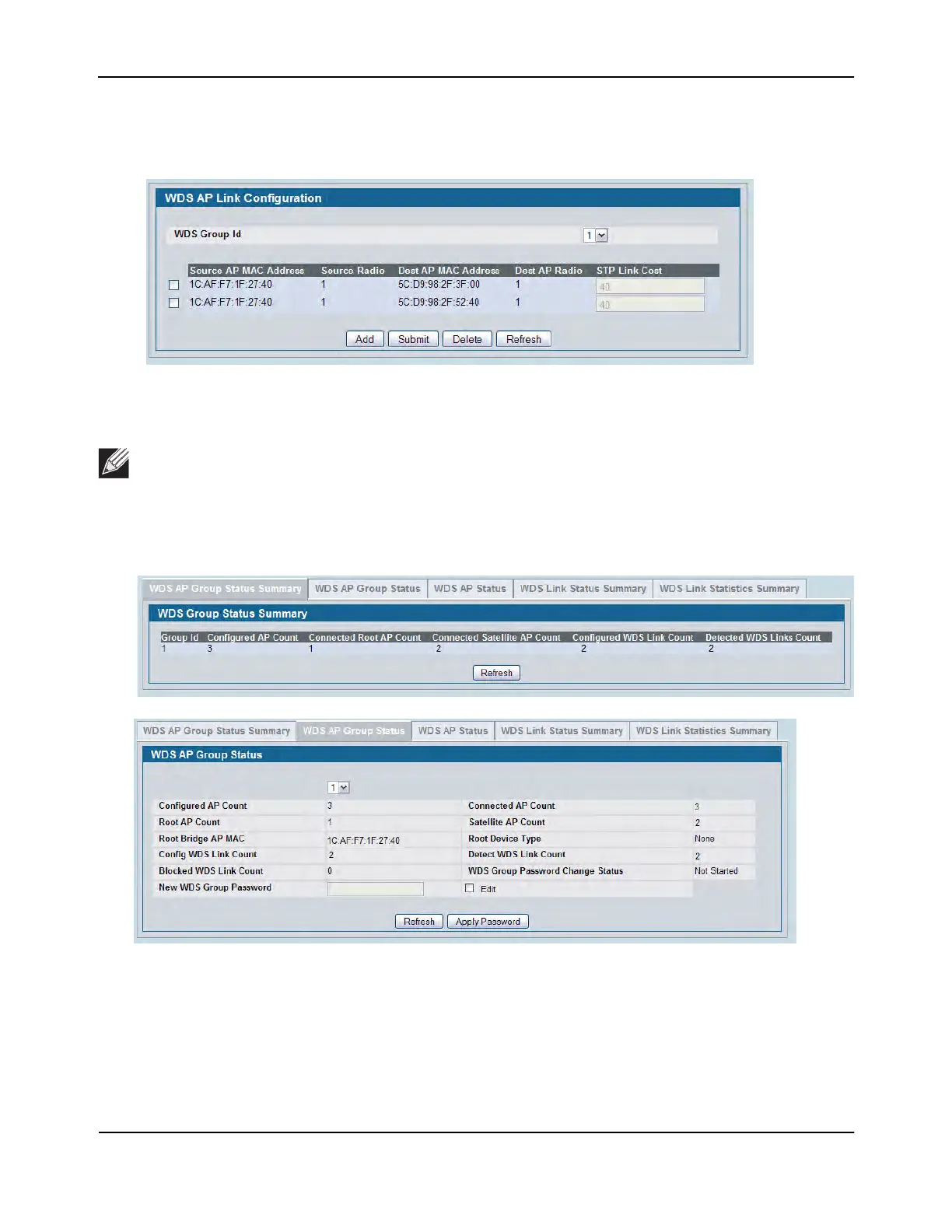

20. Return to the WLAN > Administration > WDS Configuration > Link Configuration page to verify the link
settings.
21. Deploy the APs, if they have not already been deployed. After the Root AP is discovered and has become
managed, it will scan for the Satellite APs. As they are discovered, they will become managed.
22. To verify that the WDS links and APs are operating as expected, navigate to WLAN > Monitoring > WDS
Managed APs.
Note: It might take several minutes for the APs to establish WDS links and to become managed.

D-Link DWL-6600AP Specifications

General

2.4 GHz	Yes
Networking standards	IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	450 Mbit/s
Power consumption (typical)	9.6 W
Internal	No
Placement	Ceiling, Wall
Certification	FCC Class B, CE Class B, C-Tick
Product color	Gray
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
WAN connection	Ethernet (RJ-45)
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	2
Security algorithms	64-bit WEP, 128-bit WEP, WPA, WPA2

Weight and Dimensions

Depth	77.5 mm
Width	156 mm
Height	- mm
Weight	500 g
