2.3 16-HDD Series
●
The Device has an embedded display on select models.
●
The Device has power redundancy on select models.
2.3.1 Front Panel

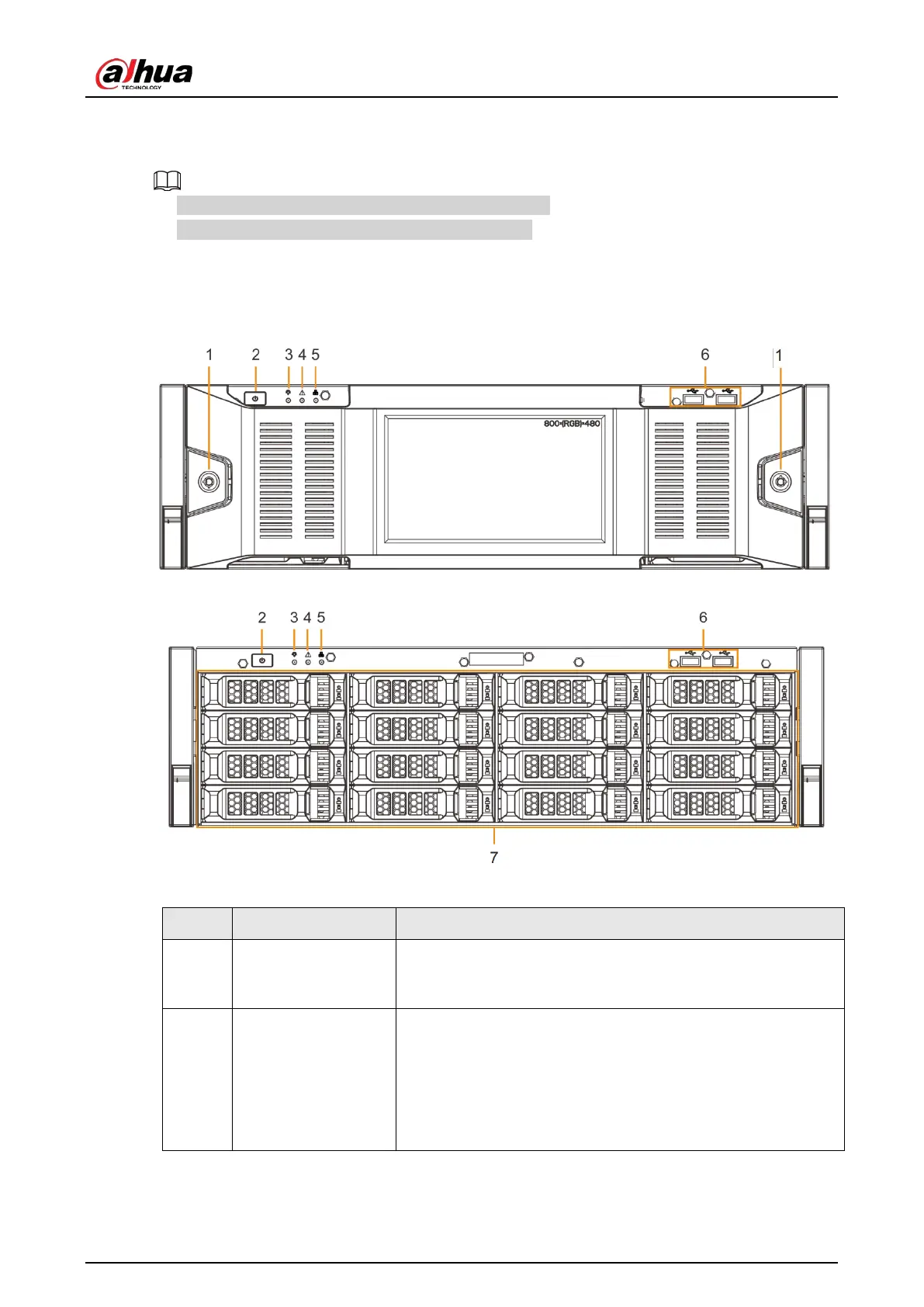

Figure 2-13 Front panel with LCD
Figure 2-14 Front panel without LCD
Table 2-5 Front panel description
No. Button/Port Description
1 Front panel lock
Once the front panel lock is secure, it can prevent HDD from
being stolen or removed by mistake. Unlock the front panel
lock and remove the front panel, you can view 16 HDD slots.
2 Power
Boot up or shut down device. The power on-off button has the
indicator light. It can display device-running status.
●
When device is off (indicator light is off), press the button
for a short period to boot up device.
●
When device is running, (blue indicator light is on), press
the button for at least 4 seconds to shut down the device.
