Step 3 Select a recording method.
Step 4 (Optional) click to disabled the recording schedule configuration of the selected
channel
Step 5 Click
Save.

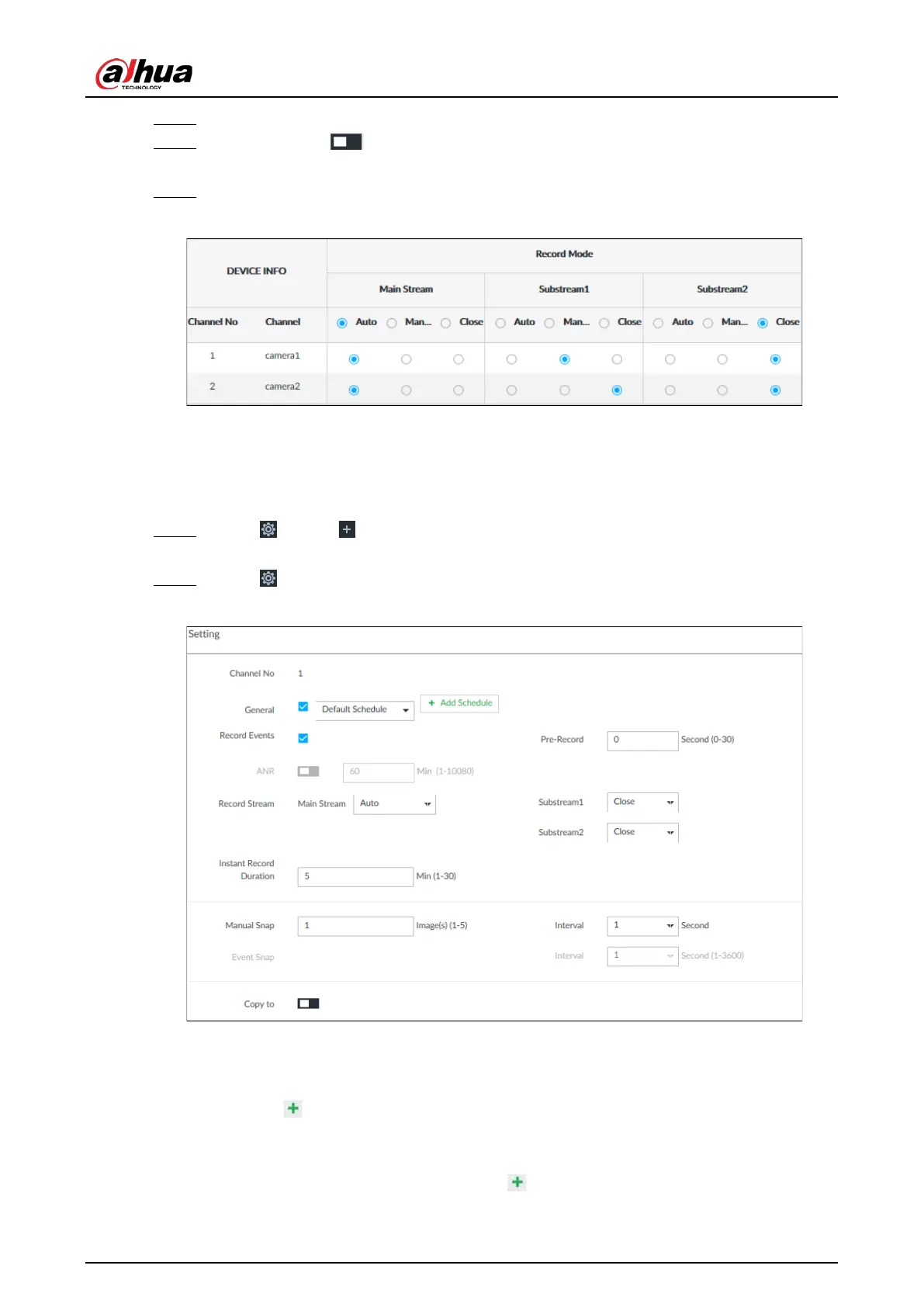

Figure 8-84 Recording Mode
8.5.2.2.2 Recording Schedule
Configure video and picture recording schedules so the Device records and captures pictures as
configured in the specified period.
Step 1 Click , or click on the configuration page, and then select
STORAGE > VIDEO
RECORDING > Schedule.
Step 2 Click , and then set a recording schedule.
Figure 8-85 Set a recording schedule
1. Set General recoding schedule.
2. Select the General checkbox to enable the function.
3. Click
Add Schedule.
4. Click , name the schedule, select a type and then click OK.
5. Specify recording hours by dragging the sliders on the day bars.
●
Always Effective: Records according to the schedule.
●
Customize: Select this option, click to define the validity periods of the
schedule.
