User's Manual
15

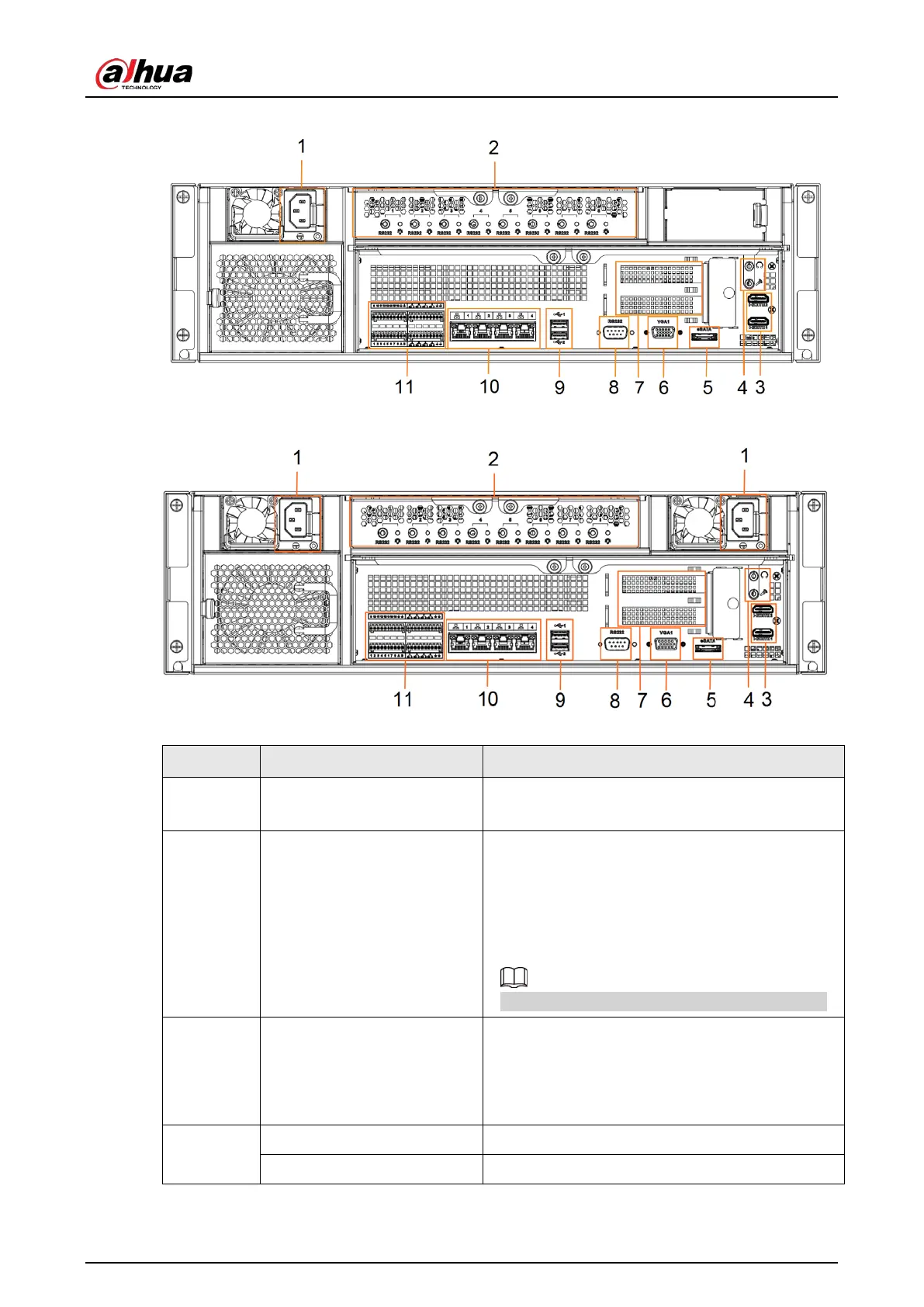

Figure 2-19 IVSS7116 rear panel (single power)
Figure 2-20 IVSS7116 rear panel (redundant power)
Table 2-7 IVSS7116 rear panel description
No. Name Description
1 Power input port
Inputs 100-127 VAC/200-240 VAC power.
Some devices only have one power port.
2 AI module indicator light
Displays AI module status.
●
The yellow light flashes: AI module is running
properly.
●
The yellow light is on: AI module is
malfunctioning.
This function is not available without AI module.
3 HDMI port
High definition audio and video signal output
port. The port outputs the uncompressed high
definition video and multi-channel audio data to
the connected display with HDMI port. The two
HDMI ports are different source output.
4
AUDIO IN Audio input port.
AUDIO OUT Audio output port
