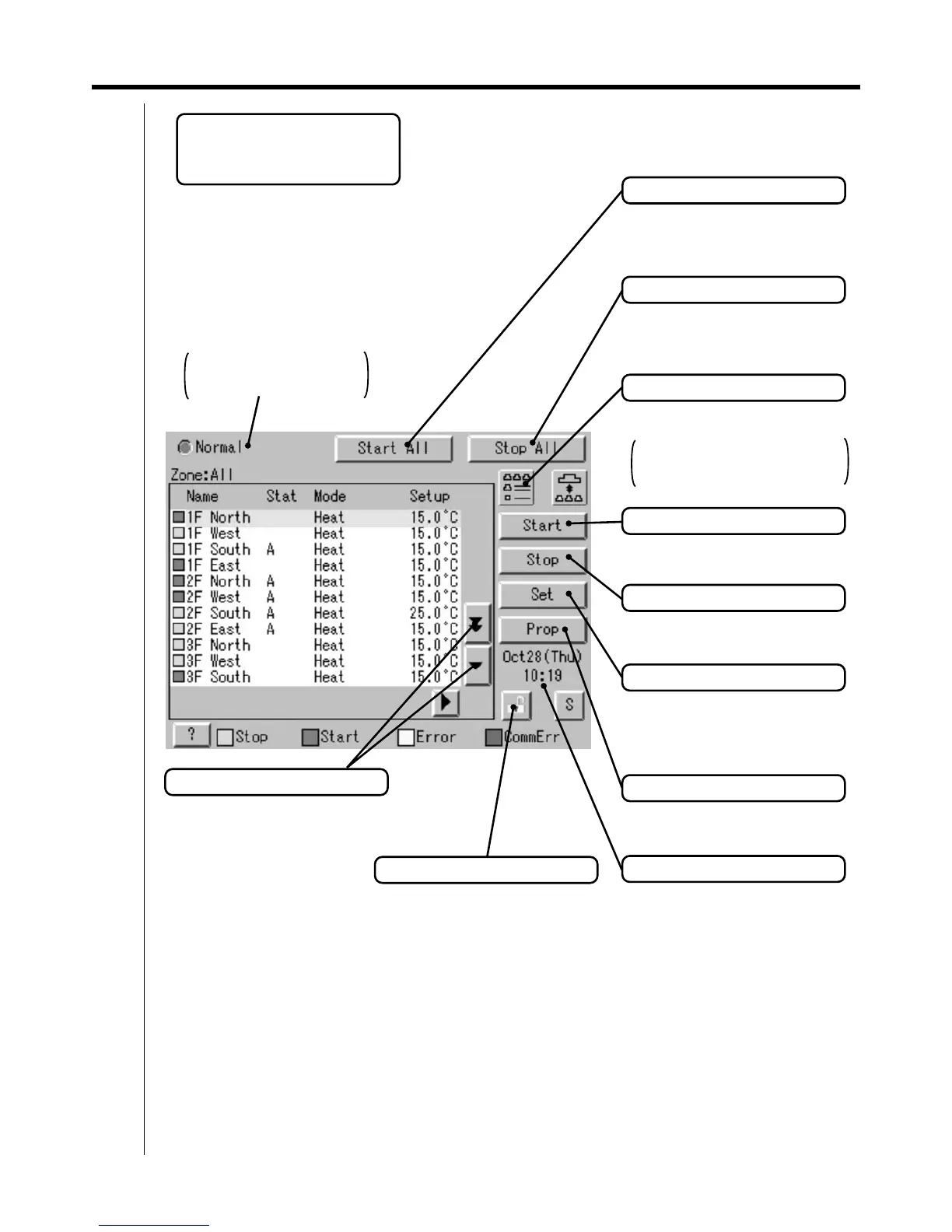

98 1.2 Part Names on the Monitoring Screen and the Functions
intelligent Touch Controller
When operation is normal and any air
conditioner is in operation:
Red/Normal
When operation is normal and all air
conditioners are in stoppage:
Green/Normal
When there is any air conditioner
generating an error:
Yellow/Abnormal
When there is any air conditioner with
communication error:
Blue/Abnormal
Change in color of Start/Stop is
possible by Iconcolor Settings in
System Settings.
Start All Button
Button to collectively start all the
air conditioners connected to
intelligent Touch Controller.
Stop All Button
Button to collectively stop all the
air conditioners connected to
intelligent Touch Controller.
Display Mode Selection
Select the mode among
icon/list/detailed icon.
Displayed in List in the right figure.
Icon display is P92.
Detailed icon display is P95.
Group/Zone Start Button
Button to start operation of the
group/zone selected.
Group/Zone Stop Button
Button to stop operation of the
group/zone selected.
Group/Zone Set Button
Makes settings (temperature
setting, temperature control mode,
etc.) and display of the
group/zone selected.
Current Time Display
Shows the current date and time.
Group/Zone Prop Button
Detailed display of the
group/zone selected
Lock Setting/Cancel Button
Displays possibititiy of monitor
operation.
Scroll Buttons
Up/Down scroll button used when
monitoring zone/group which are
not currently displayed.
Left/Right scroll button used
when monitoring temperature
and errors etc.
Which are not currently
displayed.
EM04A055A
Display for Collective
Monitoring of Air
Conditioners Connected to
intelligent Touch Controller
To Next Page
