186 3.3 Installation
intelligent Manager
3.3 Installation
Don't fail to turn OFF the indoor unit power switch before installing intelligent Processing Unit.
Failure to observe this instruction could result in electric shock.
40
80
Fix the intelligent Processing Unit
firmly with the installation
screws (M4)
260±1
80
70
50
130±1

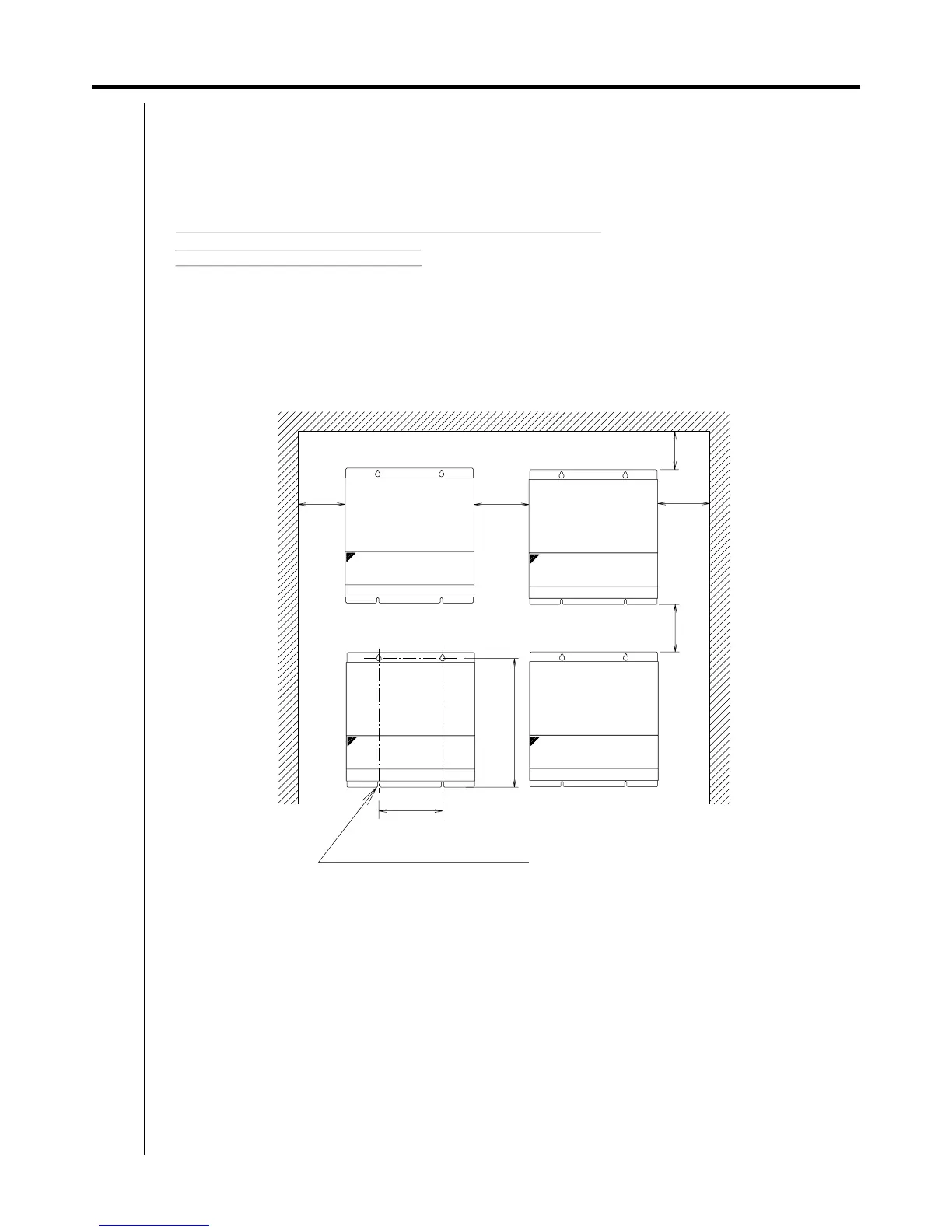

• Required installation space
• Location
Make sure to install the unit on the inside of the inaccessible and lockable
(or needed to use exclusive tools to open)
electrical component box installed indoors
where the effect of electromagnetic wave or dust can be avoided.
The minimum depth required for installation is 100mm
Keep the minimum amount of space indicated in the below drawing from walls, and between units when
installed in series.
DAIKIN D-BACS
DAIKIN D-BACS
DAIKIN D-BACS
DAIKIN D-BACS
