3.4 “DIII-NET master” setting 187
intelligent Manager
1P177851C
3.4 “DIII-NET master” setting
ONOFF
POWER
PCMCIA
BACKUP
ON
OFF
UP
is the location of the knob.
< < CAUTION > >
< < CAUTION > >
Be sure to turn on the battery backup switch.
When this switch is OFF, time data etc.
may be lost at power failure.
OFF
Make sure to install the unit vertically. Do not install
the unit horizontally, because it may cause malfunction.
ON

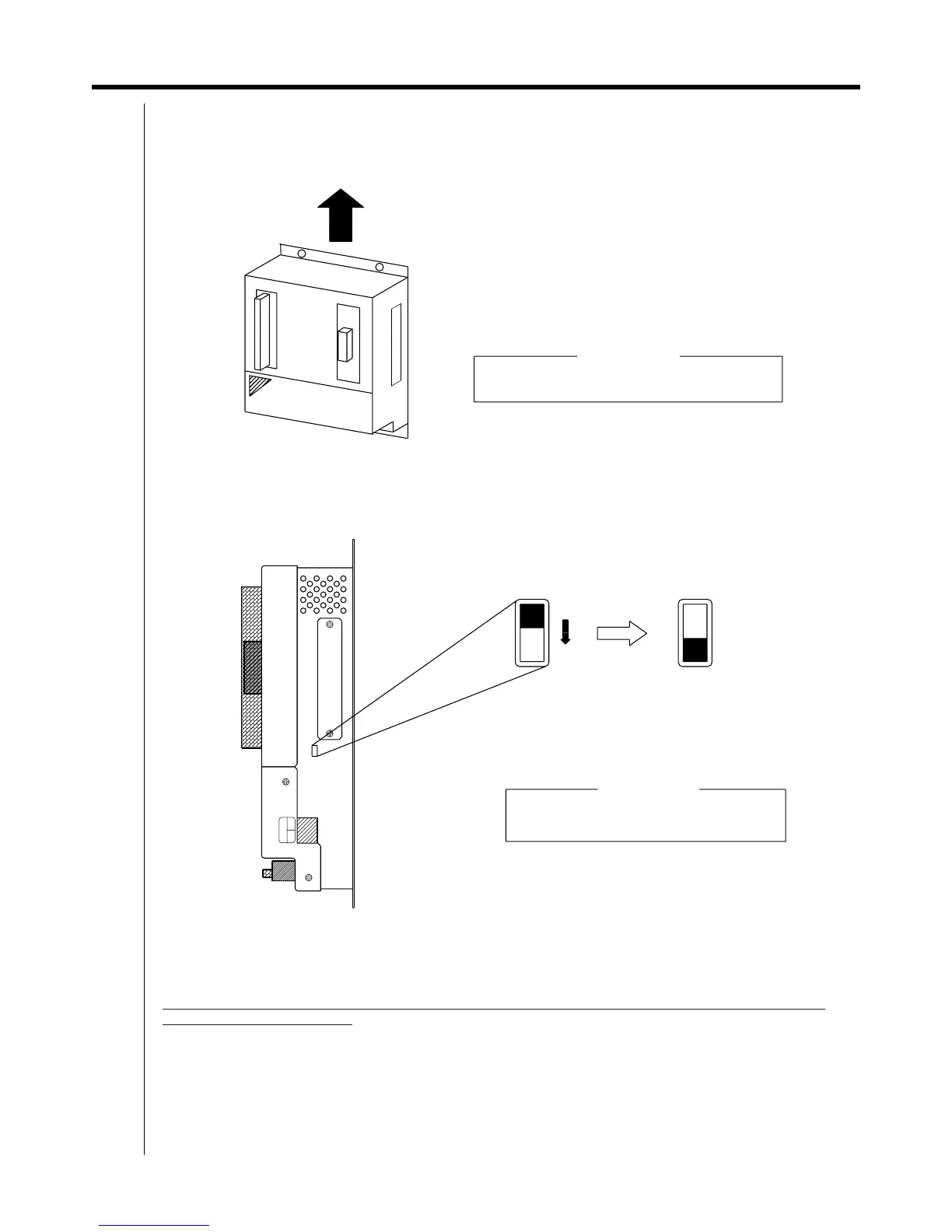

For installation direction follow the drawing shown below.
• How to install
Setting " BACK-UP BATTERY VALIDATE " switch
(shifted to OFF when being shipped from the shop. -- Back-up battery set to INVALIDATE)
For the switch to back up the clock, etc. in case of any power failure, actuate it from OFF side
(knob is located above) to ON side (knob is located below) as shown in the sketch below.
Make sure to connect the unit with “DIII-NET master”
Remove the master central setting connectors of the intelligent Touch Controller or centralized management
controller or ON/OFF controller
When using together with other centralized controllers such as intelligent Touch Controller or centralized
management controller or ON/OFF controller.
