1.8 Electric Wiring 143
Control Devices

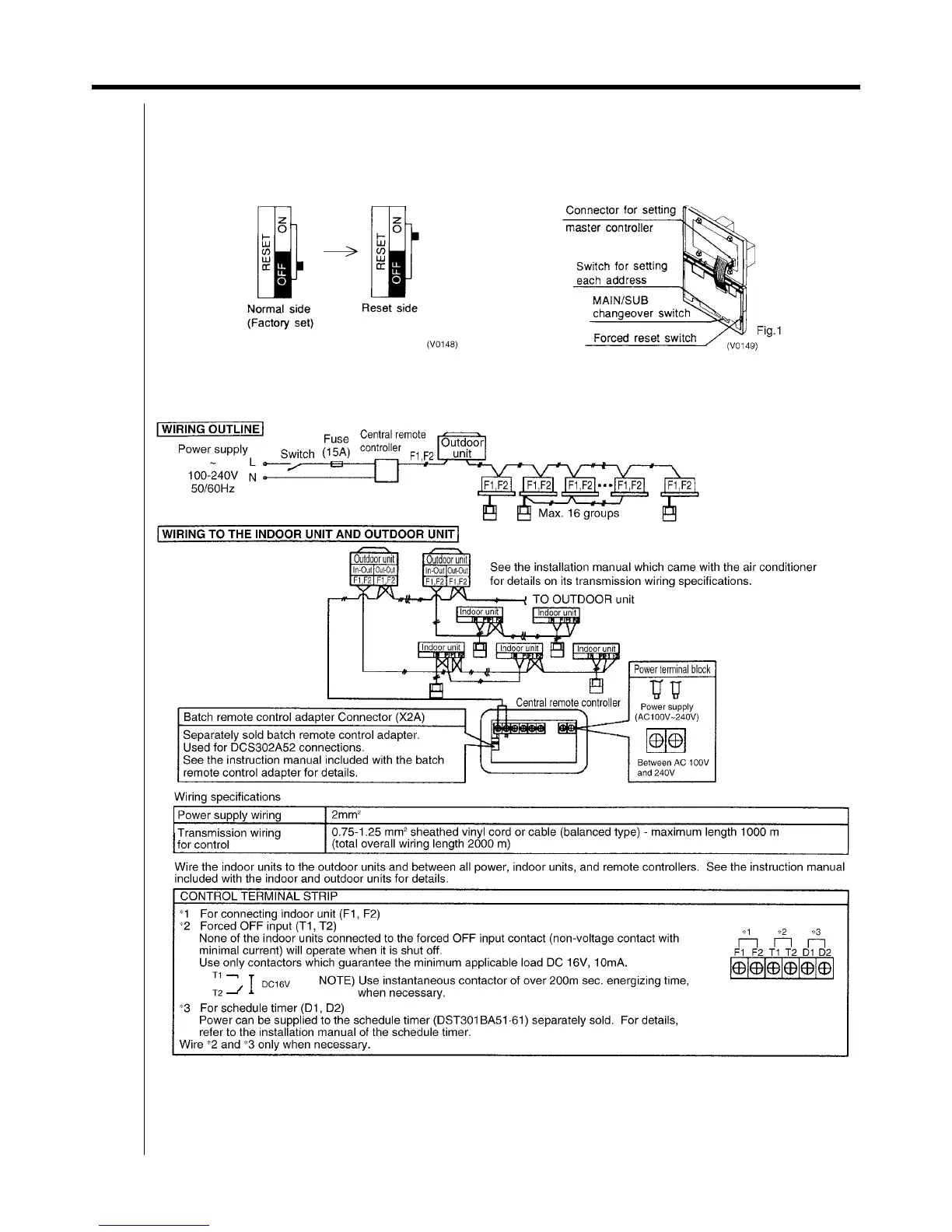

(5) Forced reset switch
When changing the setting of the connector for setting master controller, etc., you can reset simply by setting it to the
reset side once and returning to the normal side, without turning the power OFF.
(For normal operation, set the switch to the normal side.)
C : 2P162816
1.8 Electric Wiring
Note:
Do not connect the power supply wiring (100 to 240V) to the control terminal strip. If connected by mistake, it may
damage or burn electrical parts of optional controllers for centralized control and indoor unit. It may result in serious
danger. Be sure to check wirings before turning the power ON.
C: 2P162816
