156 2.8 Installation
Control Devices
2.8 Installation

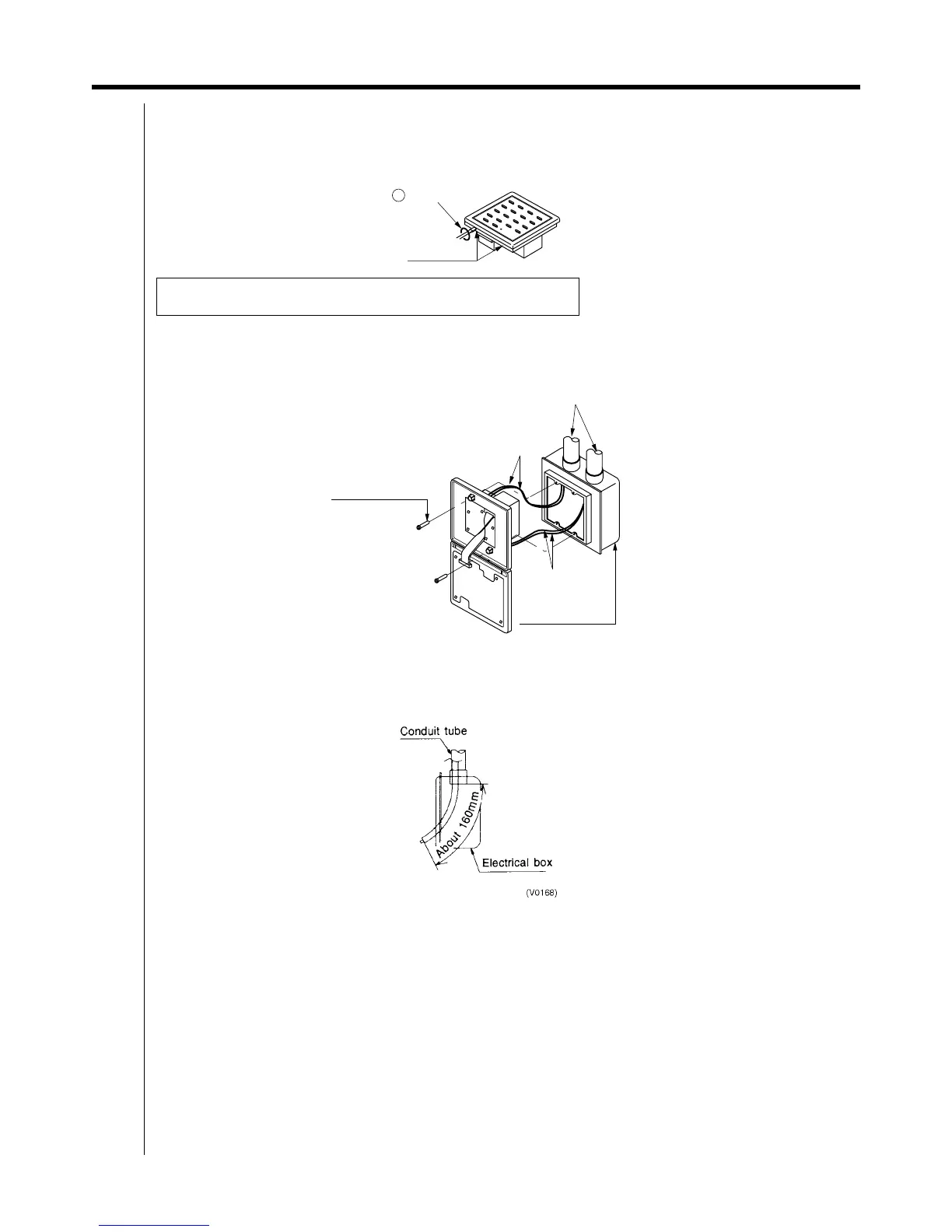

1. Open the upper part of remote controller.
Insert a minus screwdriver (2 locations) into the recess between the upper part and the lower part of remote controller
and twist the screwdriver lightly.
2. Open the upper part of remote controller and install the electrical box (part to be procured in the field) with the
attached installation screws (M4×16).
Note:
Suitable length of the electric wire is about 160mm from the inlet of the electrical box. If it is difficult to contain a long
wiring, strip the sheathed part of the wiring.
C: 1P162827
PC board is attached with both the upper and lower part of remote
controller. Do not damage the board with the screwdriver.
– screwdriver
(2 locations)
Wiring for
transmission
Do not contain the power supply
and the transmission wiring in the
same conduit tube.
Installation screws
(2 screws)
(Part to be procured
in the field)
Electric parts
box
Power supply
wiring
To Next Page
