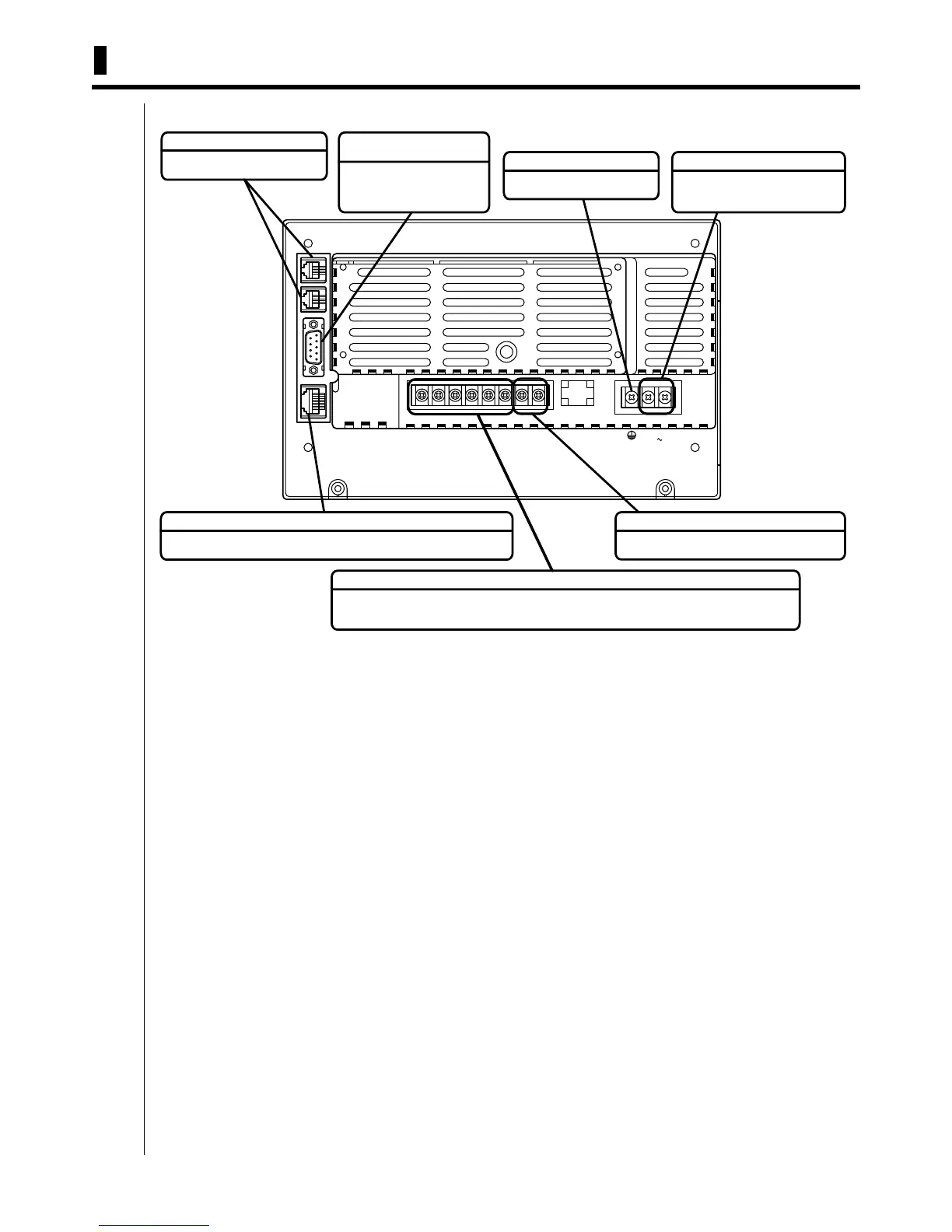

5.1 Terminals on the Back of intelligent Touch Controller
3P073677-12R
Using DIII-NET Plus adapter
being sold as an accessory,
you can increase the number
of indoor units to be controlled.
RS232-C connector for
DIII-NET Plus adapter
When using AIRNET service,
connect it to the telephone line.
Modem connector for AIRNET
This is used when distributing the power supply to indoor units using optional Power Proportional
Distribution software sold separately and when stopping the indoor units compulsorily by contact input.
The size of terminal block is M3.5.
Terminal block for watt hour meter and force stop input of indoor units
When monitoring and operating the indoor units using the optional Web and
E-mail function software sold separately, connect to LAN via Ethernet cable.
Ethernet connector for web
Securely connect the earth wire.
Terminal size is M4.
Earth terminal block
Connect to AC100-240V power
supply.
Terminal size is M4.
Terminal block for power supply
The terminal size of the terminal block for
communication with indoor units is M3.5.
Terminal block for DIII-NET communication
LINE
COM L0Dil Pi3 COM Pi2 Pi1 F2 F1 N L
PHONE
RS-232C LAN
100 - 240V
