5.4 Connection to Public Telephone Line 107
intelligent Touch Controller

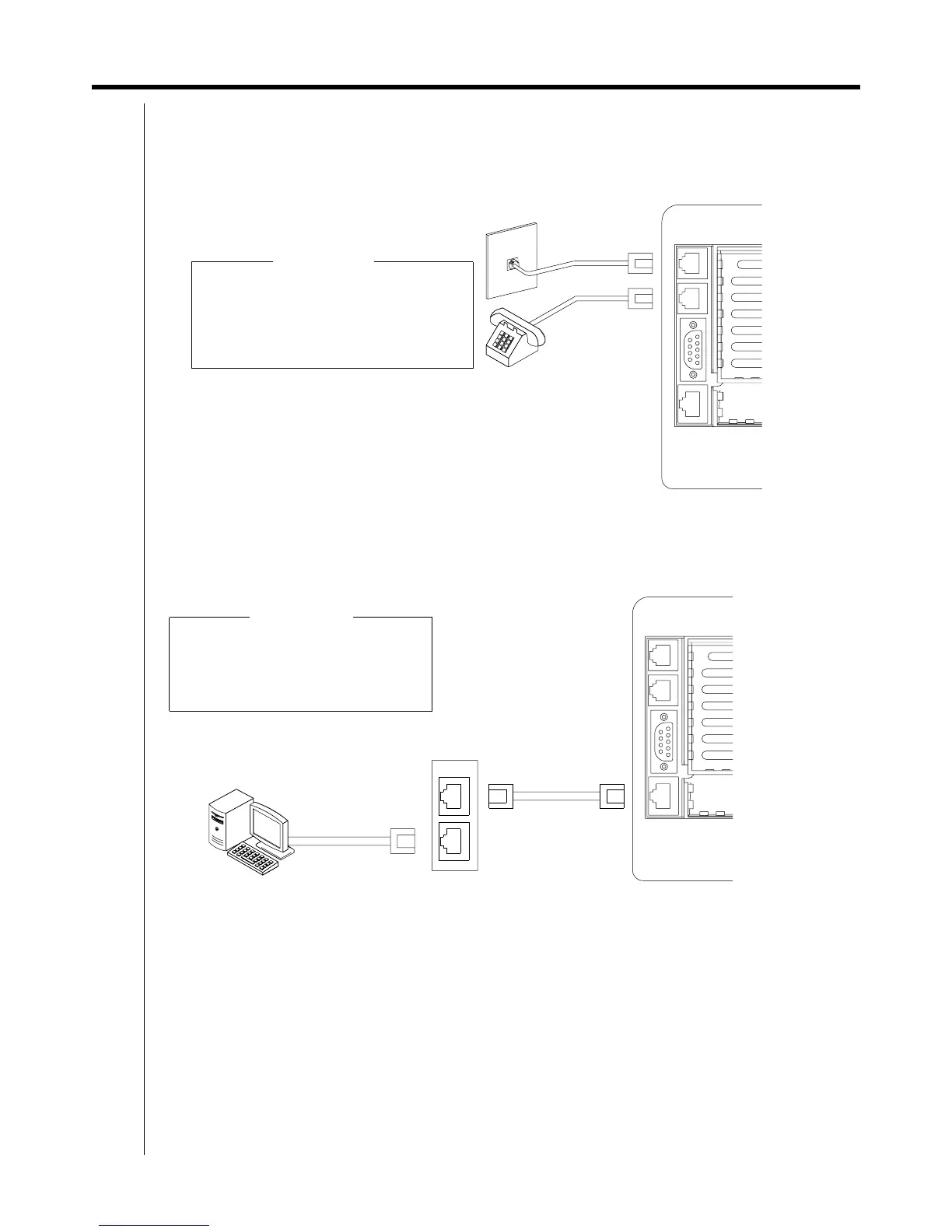

5.4 Connection to Public Telephone Line
Connect to the telephone line in order to monitor the air-conditioner via AIRNET service.
Connect to modular cable from the public telephone line to the upper connector with a
stamping of LINE, and connect the modular cable of the telephone to the lower connector with a
stamping of PHONE, as shown in the sketch below.
5.5 Connection to LAN
• Don't clamp these cables together with high
voltage cables. Failure to observe this
instruction would cause control error.
• When using AIRNET service, it is necessary
to use a separate modem specified by us and
enter into Maintenance Agreement with charge.
PHONELINE RS-232C LAN
<< CAUTION >>
HUB
Field supplied
• Don't clamp these cables together with high
voltage cables. Failure to observe this
instruction would cause control error.
• For connecting to LAN, consult with the
network system administrator.
PHONE RS-232C LANLINE
In order to monitor/control the air-conditioner using optional Web and E-mail function software sold separately,
use a UTP cable to connect to LAN.
Connect the UTP cable to the Ethernet connector with a stamping of LAN.
<< CAUTION >>
