1.12 Installation 149
Control Devices
1.12 Installation

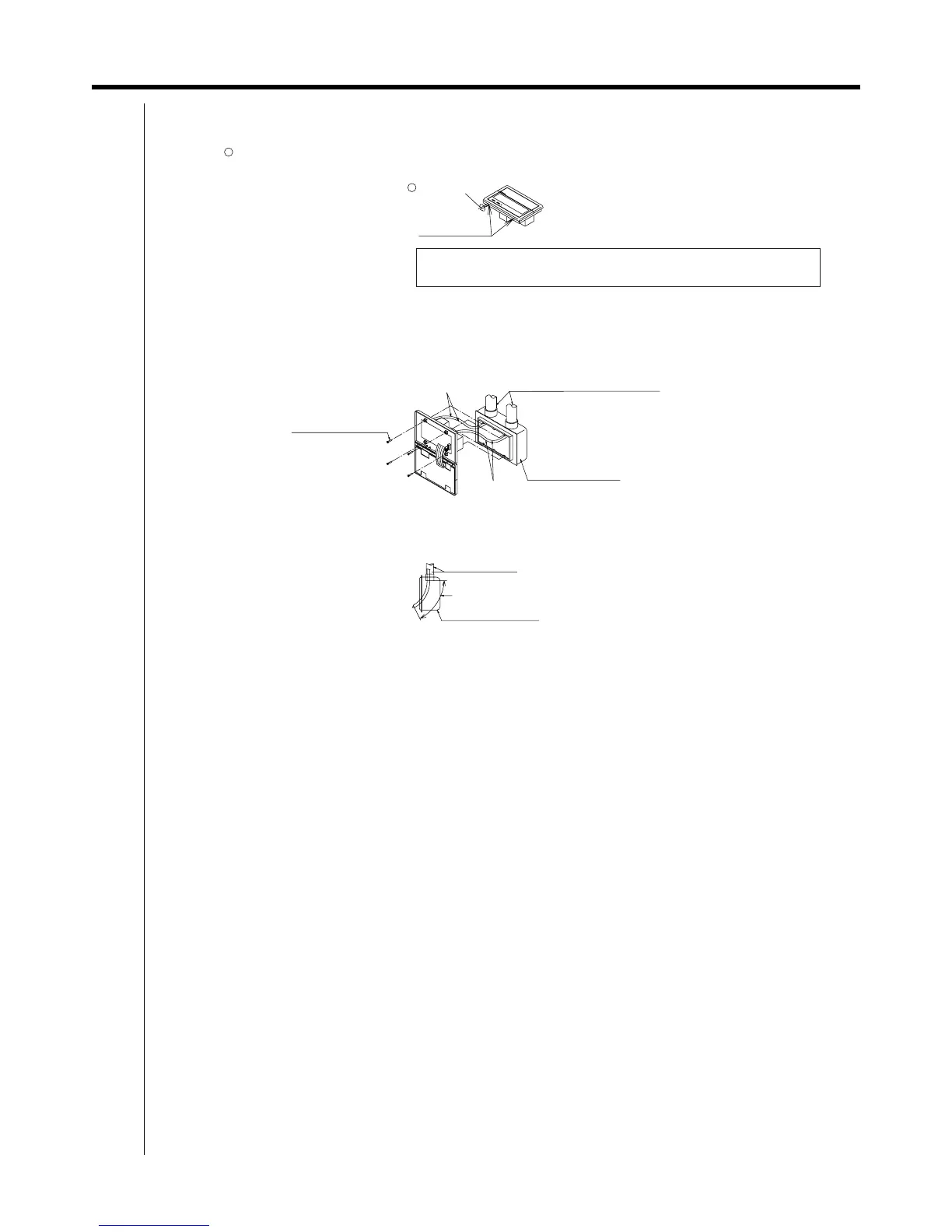

(1) Open the upper part of remote controller.
Insert a screwdriver (2 locations) into the recess between the upper part and the lower part of remote controller and
twist the screwdriver lightly.
(2) Open the upper part of remote controller and install the Electric parts box with the attached installation screws
(M4 × 16).
NOTE) Suitable length of the electric wire is about 160mm. (from electric parts box) If it is difficult to contain a long wiring,
strip the sheathed part of the wiring.
C: 2P162816
–
– screwdriver
(2 locations)
PC board is attached with both the upper and lower part of remote
controller. Do not damage the board with the screwdriver.
Power supply wire
Installation screws
(4)
Do not contain the strong
current electric wire and the
weak current electric wire in
the same conduit tube.
Weak current
electric wire
Electric parts box
(KJB311A)
Conduit tube
Electric parts box
Approx. 160mm
To Next Page
