6.1 Physical Appearance and Branch Connection 231
Interface for use in LONWORKS
®
6. Hardware

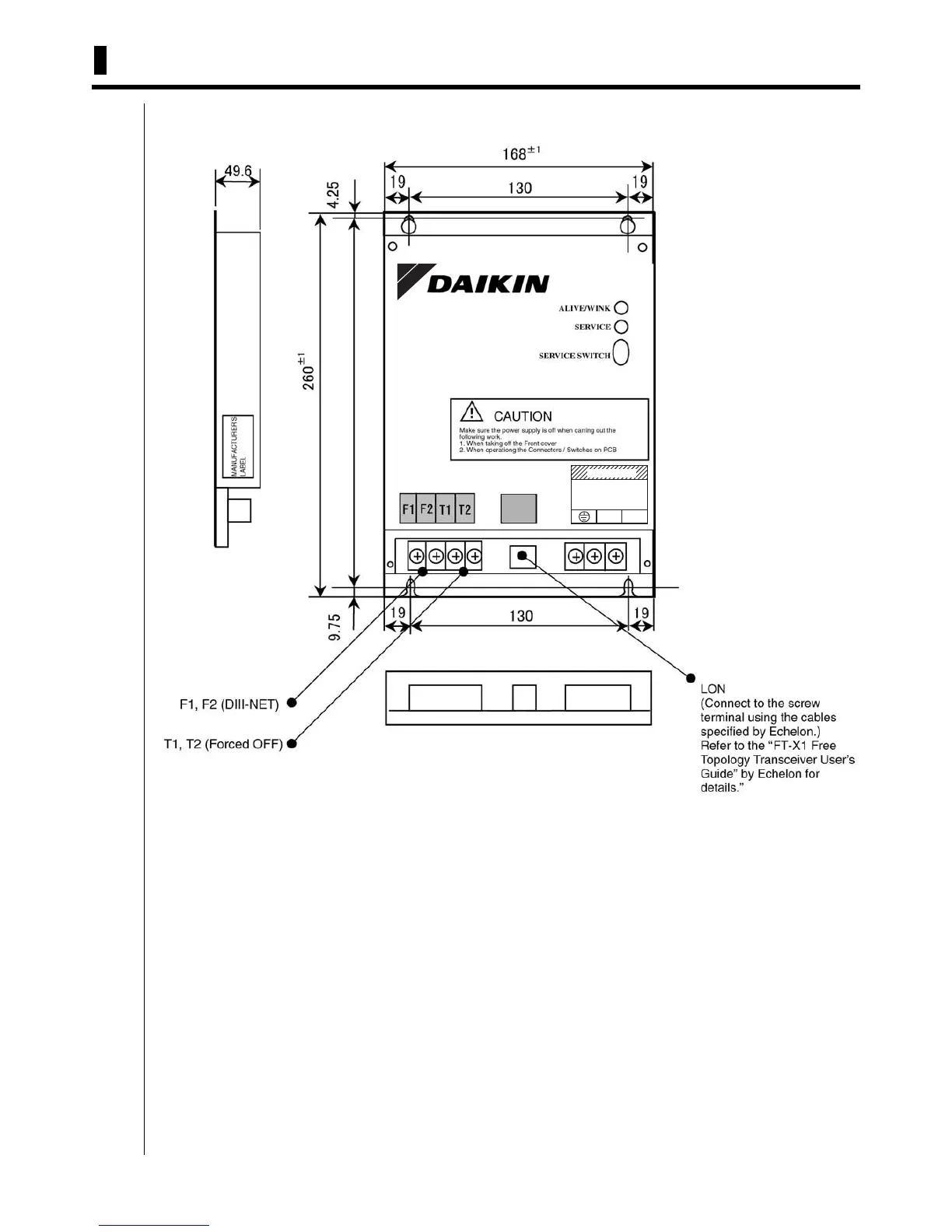

6.1 Physical Appearance and Branch Connection
6.2 Definition of LED and Switch
1. LED
ALIVE/WINK CPU normal monitor Green Normal Blinking every 0.4 sec.
Red WINK command reception Blinking every 0.2 sec.
SERVICE LON status Yellow Normal Light off
Unconfigurate state Blinking every 0.51 sec.
SERVICE SW on Light on
Error Blinking/flashing every 0.84 sec.
2. Switch
SERVICE SW Neuron ID is sent upon pushing this switch.
246
NL
100-240V
~
50 / 60Hz
POWER
L0
