136 1.5 Description of Functions
Control Devices
1.5.10 Monitor in zone unit
Operating and monitoring the system even in group or zone unit has become enabled from the DCS302C(A)61.
Monitoring in zone unit is conducted taking an indoor unit with a lower address within the zone as the Main Indoor Unit.

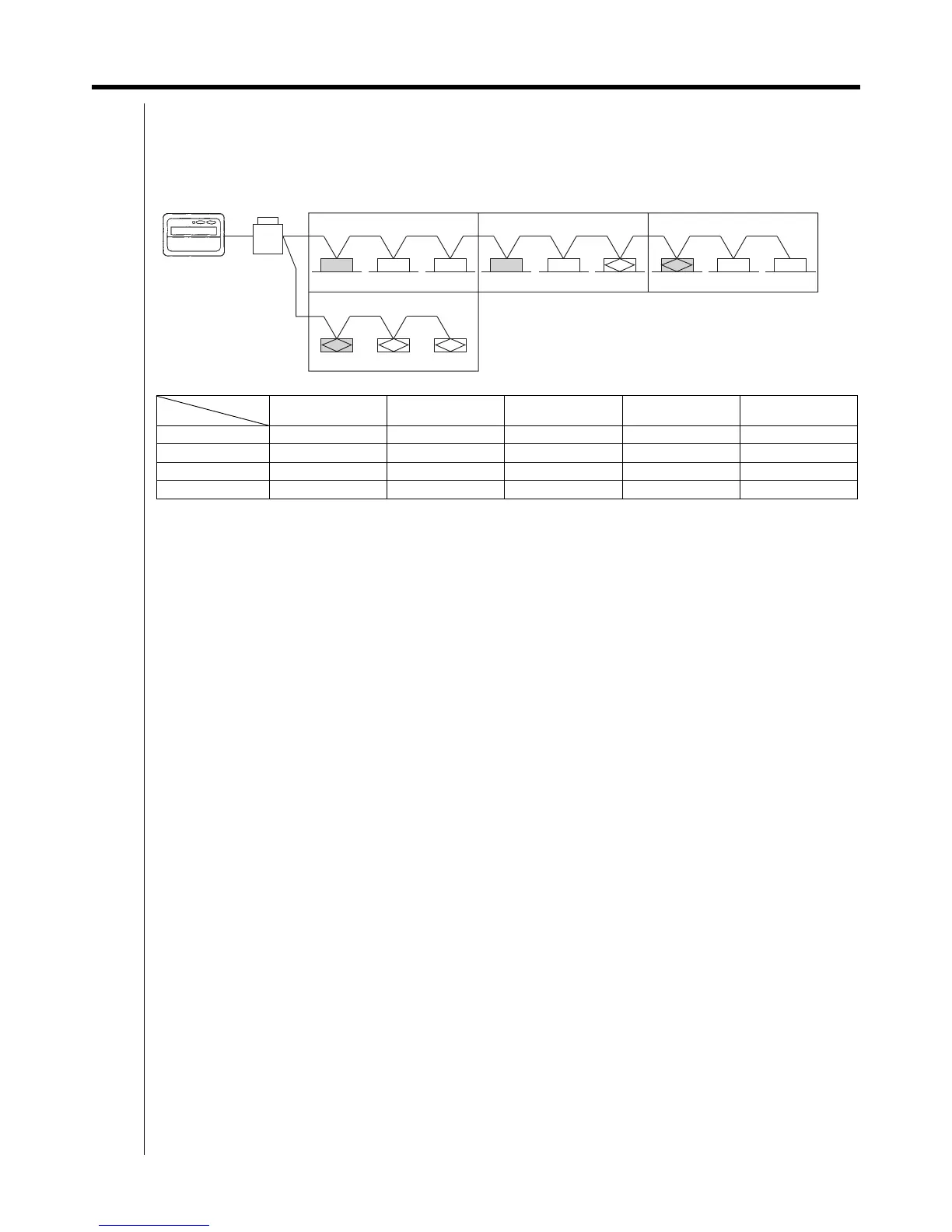

For monitoring the zone settings: The following screens are displayed.
If the system is operated on the Zone screen, one and the same setting will be made on all indoor units registered with
the zone.
On the Zone screen, ventilation mode is only monitored. In order to change ventilation mode, be sure to use the Individual
screen.
On the Batch screen, operating and monitoring is also enabled, thus monitoring an indoor unit with a lower address within
the scope of control.
Main Indoor Unit Operation Code
Timer No.
Temp. Display Operation Mode Ventilation Mode
Zone 1 1-00 1-00 1-00 1-00 N/A
Zone 2 1-03 1-03 1-03 1-03 1-05
Zone 3 1-06 1-06 1-07 1-07 1-06
Zone 4 2-00 2-00 N/A N/A 2-00
1-00 1-01 1-02
Zone 1
1-03 1-04 1-05
HRV
Zone 2
1-06 1-07 1-08
Zone 3
2-00 3-00 4-00
Zone 4
Central Remote
Controller
Outdoor Unit
Indoor Unit
