3.6.4 Connection to Public Telephone Line
3.6.5 Ethernet Communication Wiring
1P177853B
LINEPHONE
Connect to the telephone line in order to monitor
the air-conditioner via AIRNET service.

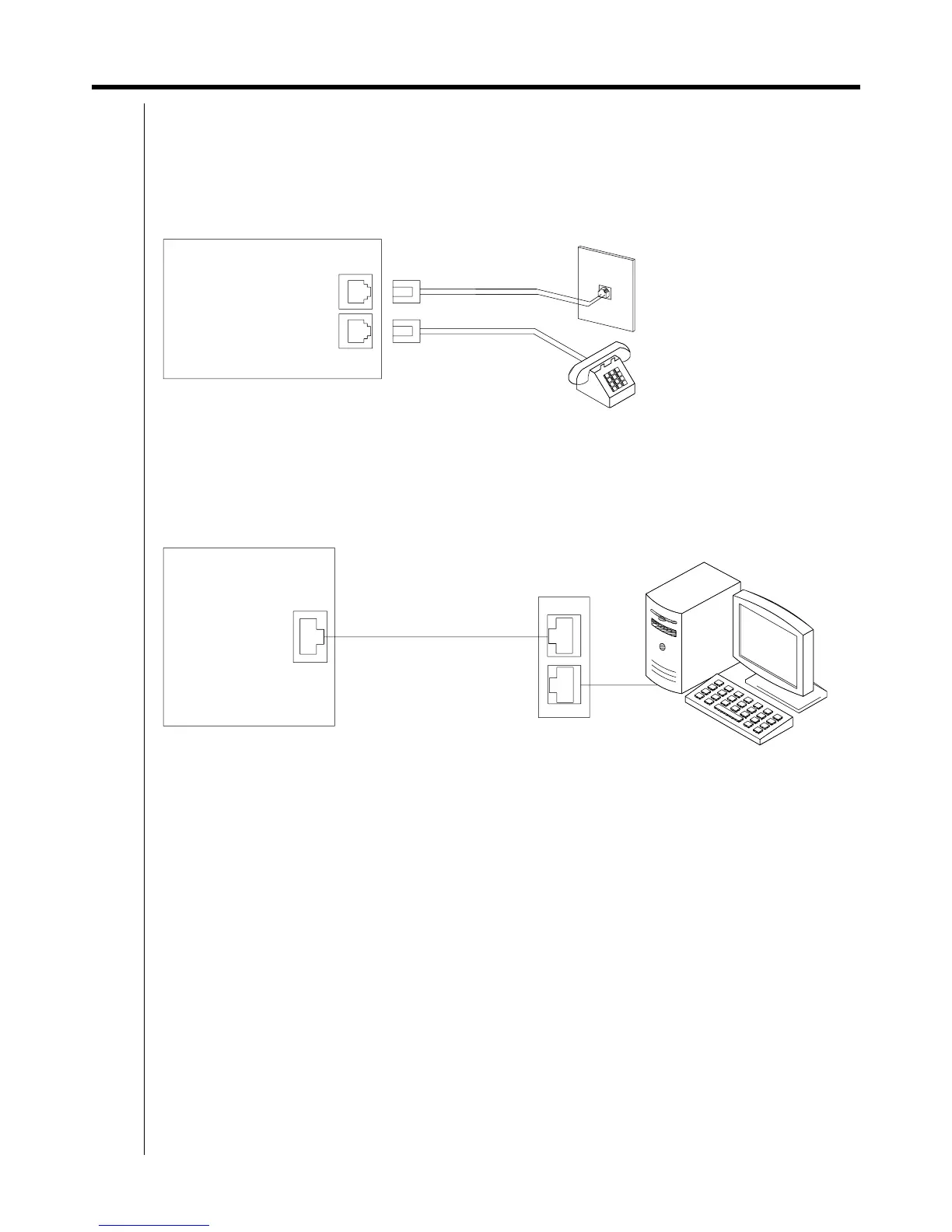

Connect to modular cable from the public telephone line to the upper connector
with a stamping of LINE, and connect the modular cable of the telephone
to the lower connector with a stamping of PHONE, as shown in the sketch below.
Cautions for wiring
1. Don't clamp these cables together with high voltage cables. Failure to observe this instruction would cause
control error.
2. When using AIRNET service, it is necessary to use a separate modem specified by us and enter into
Maintenance Agreement with charge.
DAM602B51, 52
Field supplied
PC
HUB
10BASE-T/100BASE-TX
straight cable
Cautions for wiring
Don't clamp these cables together with high voltage
cables. Failure to observe this instruction would
cause control error.
DAM602B51, 52
Ethernet
10BASE-T
100BASE-TX
To Next Page
