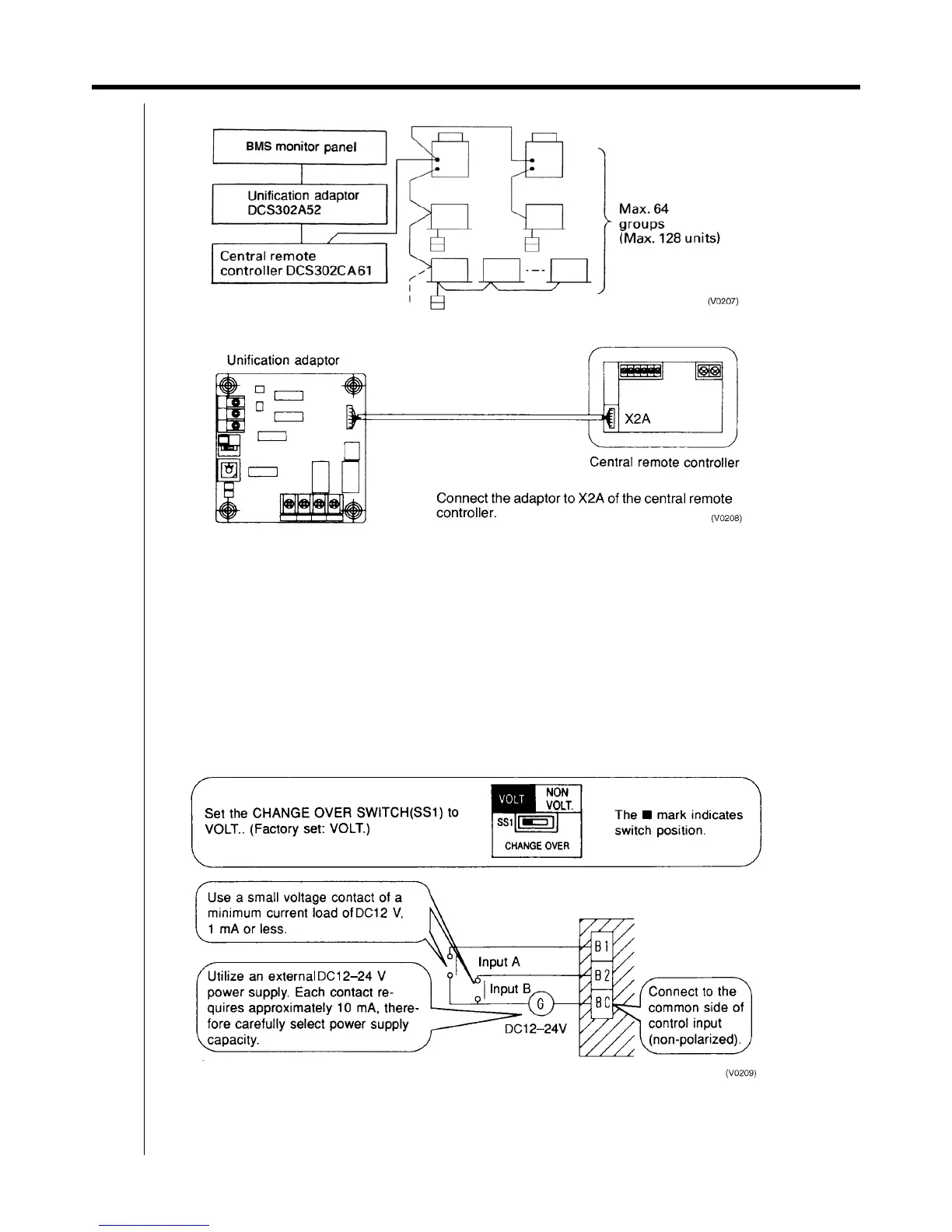

276 1.1 <DCS302A52> Unification Adaptor for Computerized Control
Adaptor
<Wiring to the adaptor>
C : 2PA53489
<Wiring to External Input Devices>
(Wire specifications)
0.75-1.25 mm
²
gauge sheathed vinyl cord or cable (2-wire)
Max. length: 150 m
4. Set the CHANGE OVER SWITCH (SS1) and CONTROL MODE SWITCH (RS1). And, wire to the BMS monitor panel
or other external input device.
Refer to WIRING TO EXTERNAL INPUT DEVICES
Control Input (Unified Operation/Stop) (SS1)
Wire as explained here following, depending on whether input carries a voltage (VOLT.) or not (NON VOLT.).
(1) Input with Voltage
To Next Page
