278 1.2 <KRP2A61 / KRP2A62 / KRP2A53> Wiring Adaptor for Electrical Appendices (1)
Adaptor

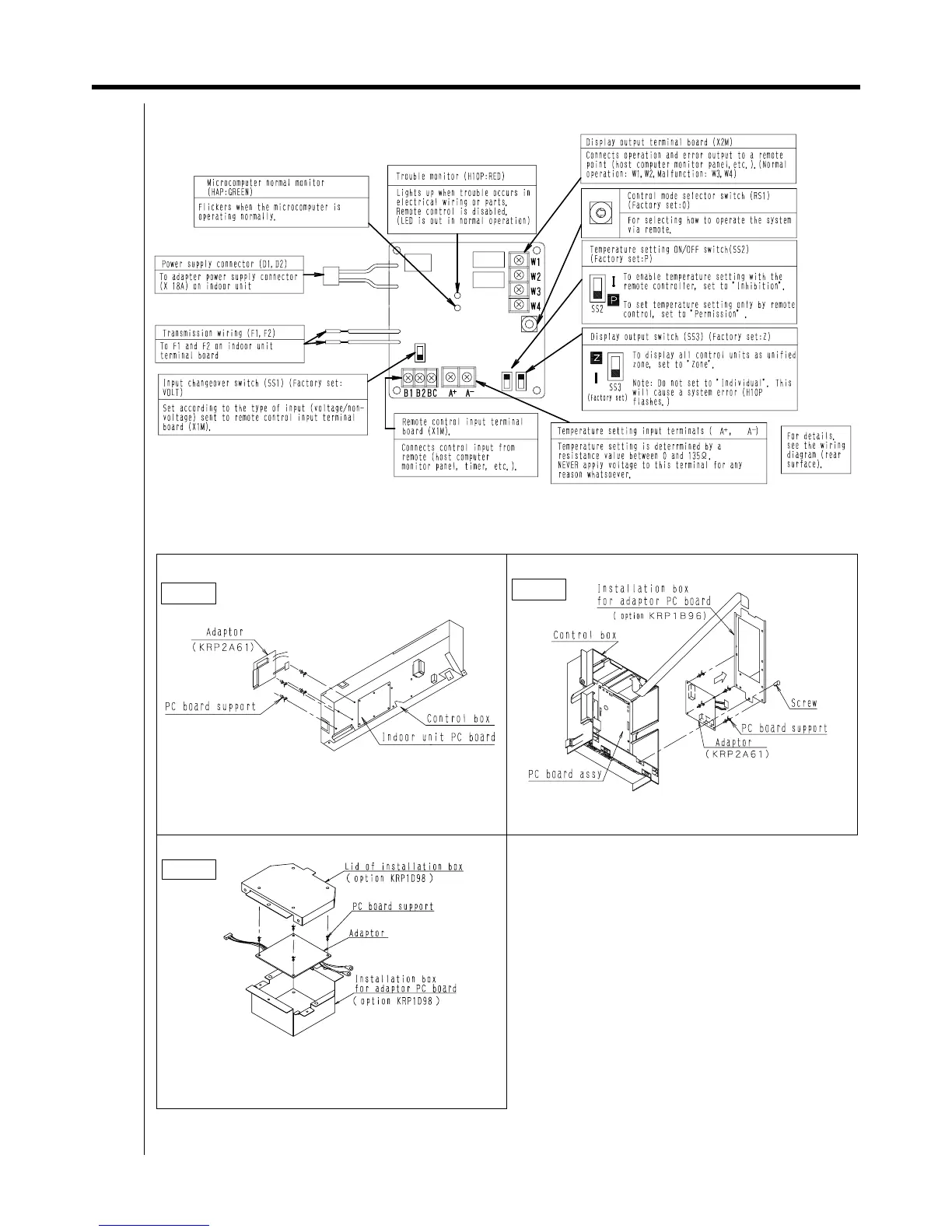

1.2.2 Part Names and Functions
1.2.3 Installation
C : 1PA63641G
Ceiling Mounted Cassette Corner Type Ceiling Mounted Cassette Type (Double-Flow)
NOTE :
Installation box for adaptor PC board is required to install
the adaptor.
Ceiling Mounted Cassette Type (Multi-Flow)
NOTE :
Installation box for adaptor PC board is required to install
the adaptor.
· Mount adaptor PC board on the lid of installation box
with PC board supports attached to the adaptor.
1PA63641G
FXK(Q)
FXC(Q)
(KRP2A62)
FXF(Q)
To Next Page
