Danfoss VACON NXP IP00 User Manual

Table 30: Mounting Dimensions, in
A
B
C
D
E
F
G
1.97
3.94
44.09
21.65 (11.42)
(1)
4.57 (1.73)
(2)
36.14
33.46 (23.23)
(1)
1
If the AC choke is installed in another location, the distance must not, however, be smaller than what is given in parentheses.
2
If the control unit is installed in any other location, the minimum distance from the door equals the number in parentheses.
12.3.2 Mounting Dimensions, FR13–FR14
A
B
C
e30bk599.10

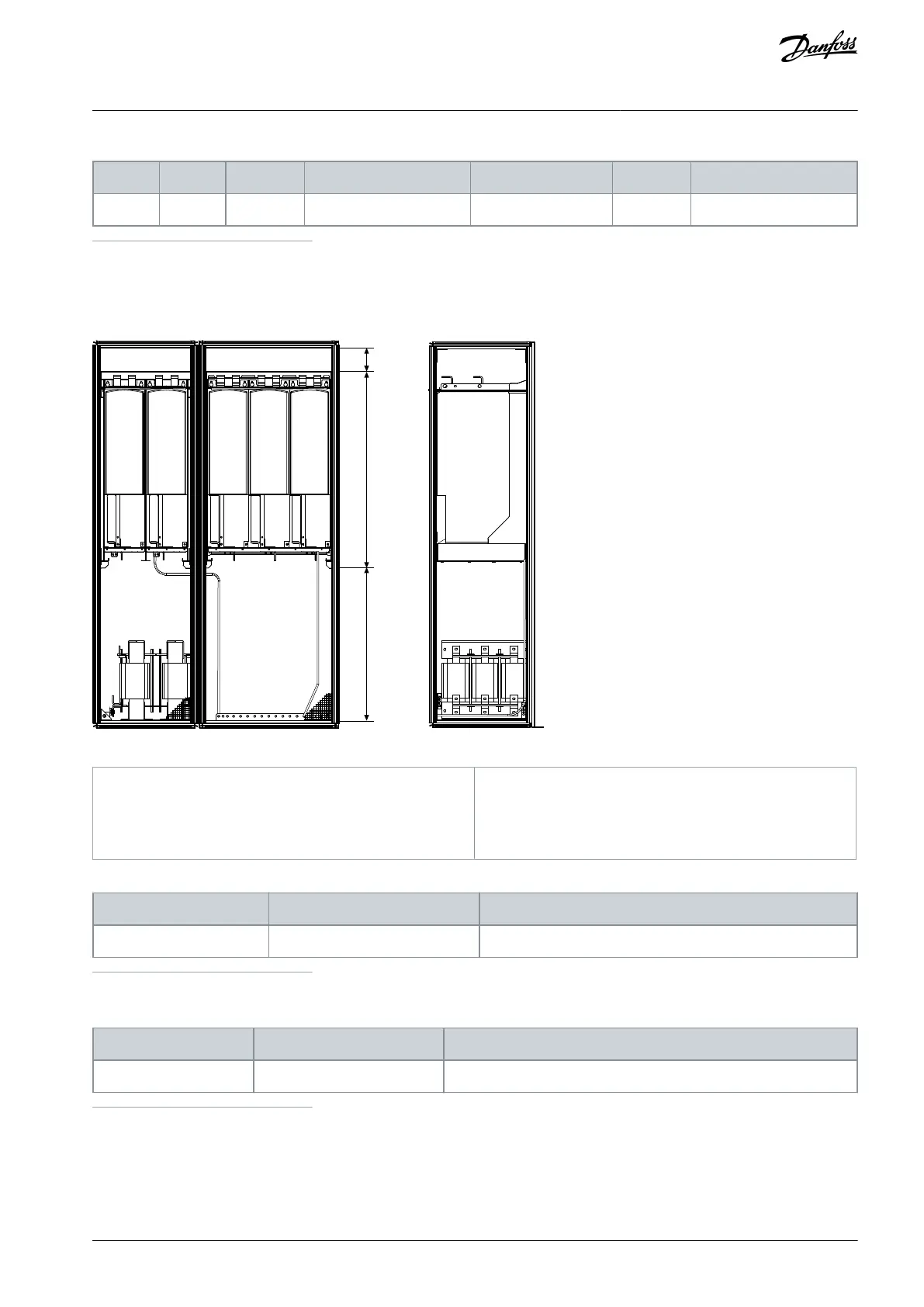

Illustration 76: Mounting Dimensions, FR13-FR14
A
Minimum distance from the top of the cabinet. This
space is needed for the fuses and busbars.
B
Unit height
C
Minimum distance from the bottom of the enclo-
sure if the AC choke is installed at the bottom of the
enclosure.
Table 31: Mounting Dimensions, mm
A
B
C
175
1050
600 (300)
(1)
1
If the AC choke is installed in another location, the distance must not, however, be smaller than what is given in parentheses.
Table 32: Mounting Dimensions, in
A
B
C
6.89
41.34
23.62 (11.81)
(1)
1
If the AC choke is installed in another location, the distance must not, however, be smaller than what is given in parentheses.
12.3.3 List of Dimension Information
This topic gives a list of dimension information for different types of VACON
®
NXP IP00 Drive Modules.
AQ351737303996en-000201 / DPD00888 | 121Danfoss A/S © 2023.09
Specifications
VACON® NXP IP00 Drive Modules
Operating Guide
