7.3.2.2 Jumper Selections on the OPTA1 Basic Board
The functions of the AC drive can be changed to make them better agree with local requirements. To do it, change some positions
for the jumpers on the OPTA1 board. The positions of the jumpers set the signal type of analog and digital inputs. Changing the
AI/AO signal contents requires also a change in the related board parameter in menu M7.
On the A1 basic board, there are 4 jumper blocks: X1, X2, X3, and X6. Each jumper block contains 8 pins and 2 jumpers. See the
possible jumper selections in Illustration 56.
X6
X2
X1
X3
e30bg016.10
X6
X2X1
A
B C
D A B C D A B C D
X3

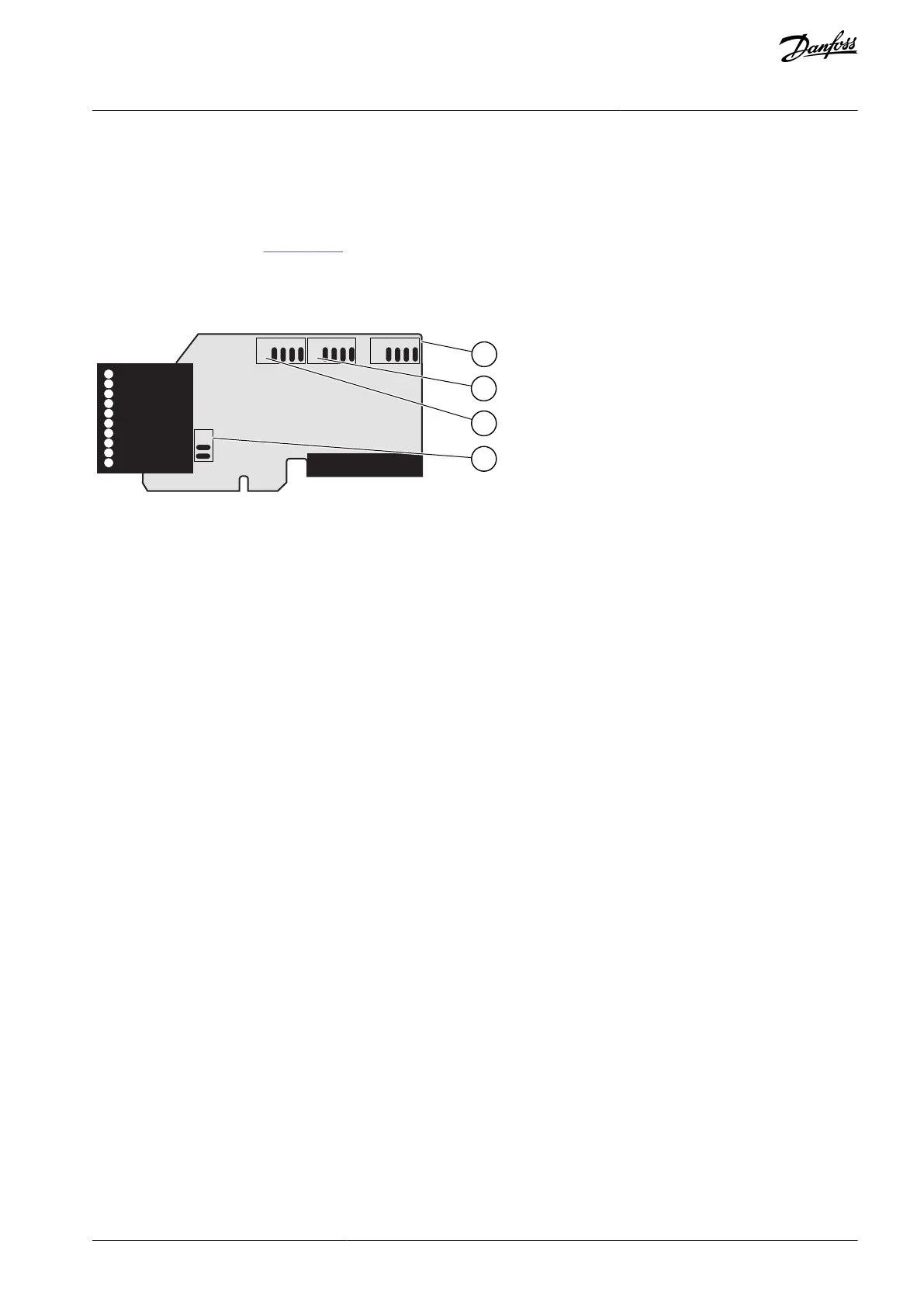

Illustration 56: Jumper Blocks on OPTA1
AQ351737303996en-000201 / DPD00888 | 73Danfoss A/S © 2023.09
Control Unit
VACON® NXP IP00 Drive Modules
Operating Guide
