Power units, see:
12.3.4.1 Dimensions for Power Unit, FR8
12.3.4.2 Dimensions for Power Unit, FR9
12.3.4.3 Dimensions for Power Unit, FR10
12.3.4.4 Dimensions for Power Unit, FR11
12.3.4.5 Dimensions for 2 NFE Units (FR13/FR14)
12.3.4.6 Dimensions for 3 NFE Units (FR13/FR14)
12.3.4.7 Dimensions for Inverter Unit (FR13/FR14)
For AC chokes, see:
12.3.5.1 Dimensions for AC Choke, CHK0650
12.3.5.2 Dimensions for AC Choke, CHK0520
12.3.5.3 Dimensions for AC Choke, CHK0400
12.3.5.4 Dimensions for AC Choke, CHK0261
For control unit, see:
12.3.6 Dimensions for Control Unit
12.3.4 Dimensions for Power Units
12.3.4.1 Dimensions for Power Unit, FR8
H2
W1
H1
D1
W2
Ø
e30bg001.20

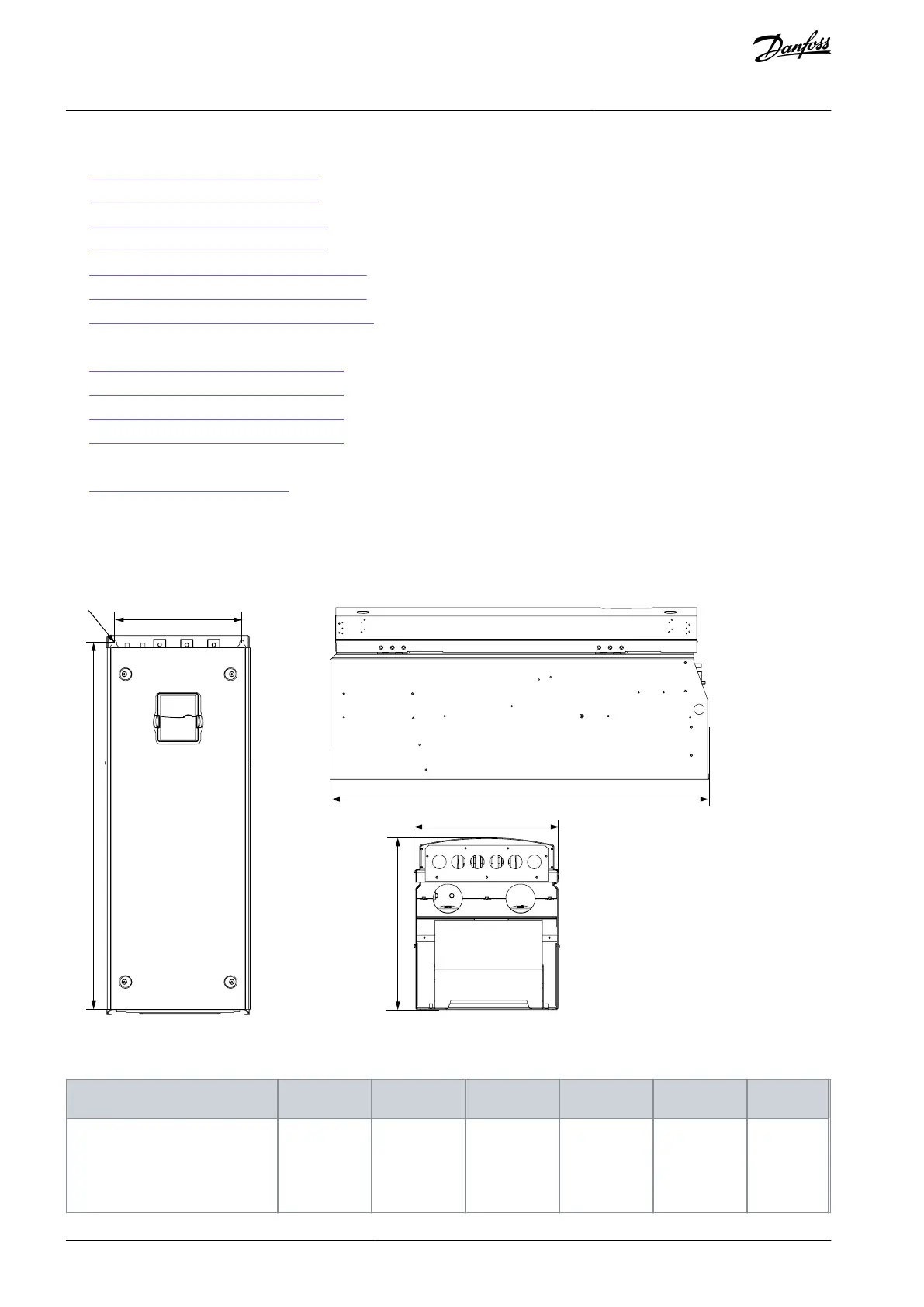

Illustration 77: Dimensions of the VACON® NXP IP00 AC Drive, FR8
Table 33: Dimensions in mm (in inch) of the VACON
®
NXP IP00 AC Drive, FR8
Drive type
W1
W2
H1
H2
D1
Ø
0140 2–0205 2
0140 5–0205 5
0062 6–0100 6
291
(11.47)
255
(10.04)
758
(29.88)
732
(28.81)
344
(13.54)
9
(0.35)
AQ351737303996en-000201 / DPD00888122 | Danfoss A/S © 2023.09
Specifications
VACON® NXP IP00 Drive Modules
Operating Guide
