X10
X2
1
2
3
4
5
e30bh484.10
1
2
3
4
5
6
7
1
2
3
4
5
6
7

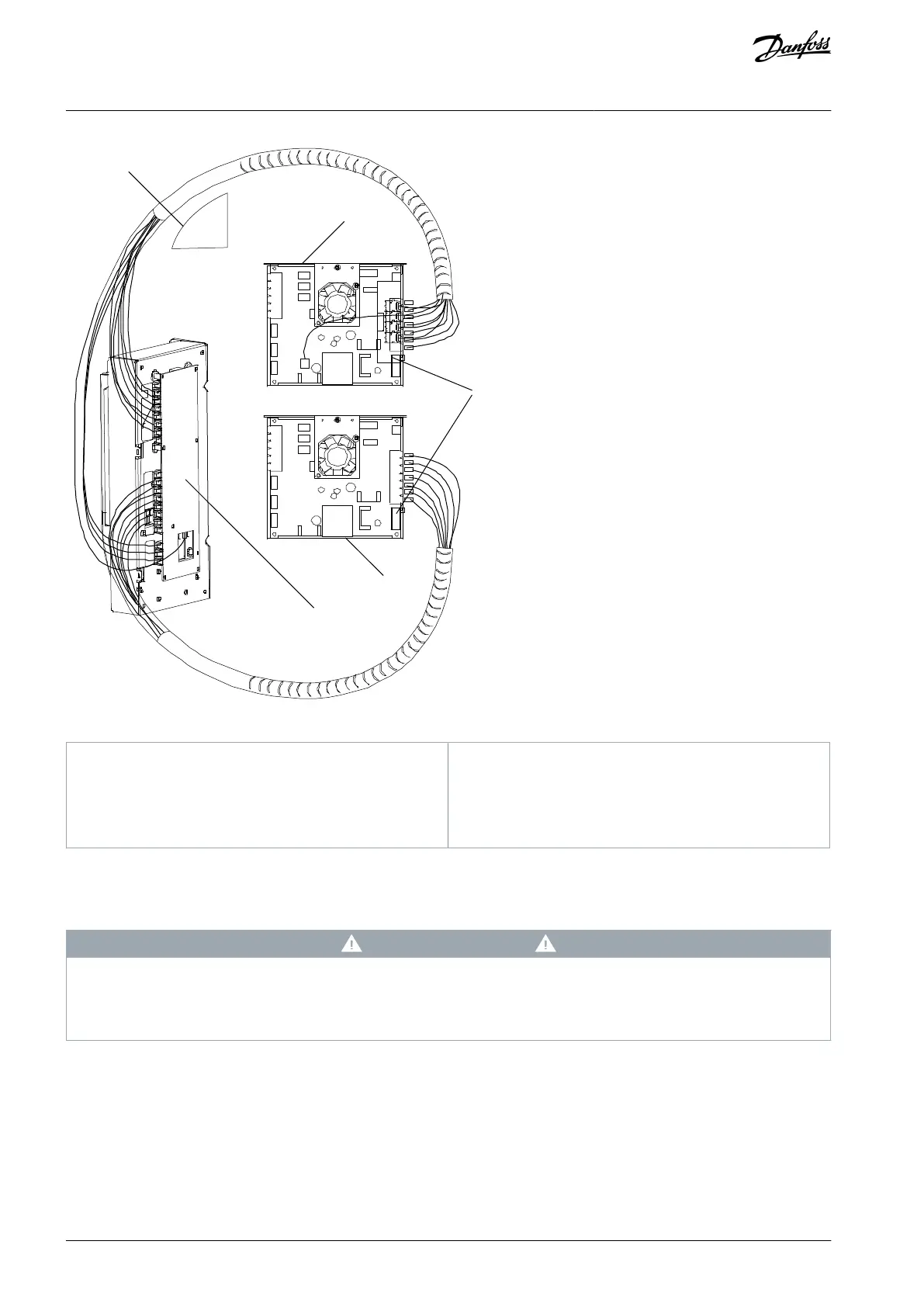

Illustration 66: Fiber Optic Cabling for FR12
1
Minimum bending radius 50 mm
2
Power module 1 ASIC board
3
Feedback board
4
Power module 2 ASIC board
5
Star-coupler board
7.4.2 Connecting the Optic Fiber Cables, FR13–FR14
In case the fiber cables are not connected, connect them from the optical fiber board (FR13) or star coupler board (FR14) to the
power module.
C A U T I O N
DAMAGE TO THE COMPONENTS FROM INCORRECT CONNECTIONS
Connecting the cables incorrectly damages power electronic components.
Be careful to connect the fiber optic cables according to instructions.
The maximum length of the optical cable is 8 m.
The minimum bending radius for optical cables is 50 mm.
AQ351737303996en-000201 / DPD0088880 | Danfoss A/S © 2023.09
Control Unit
VACON® NXP IP00 Drive Modules
Operating Guide
