Danfoss VACON NXP IP00 User Manual

M M M
M
M M
NFE NFE NFE
INU
NFE NFE NFE
INU INU IN U INU
NFE
NFE
NFE
NFE
du/dt du/dtdu/dt
du/dt du/dt du/dt du/dt du/dt
A
A A C
B
B
D
B
D
C C
D
e30bi454.10
A
Single input
B
Single output
C
Double input
D
Double output

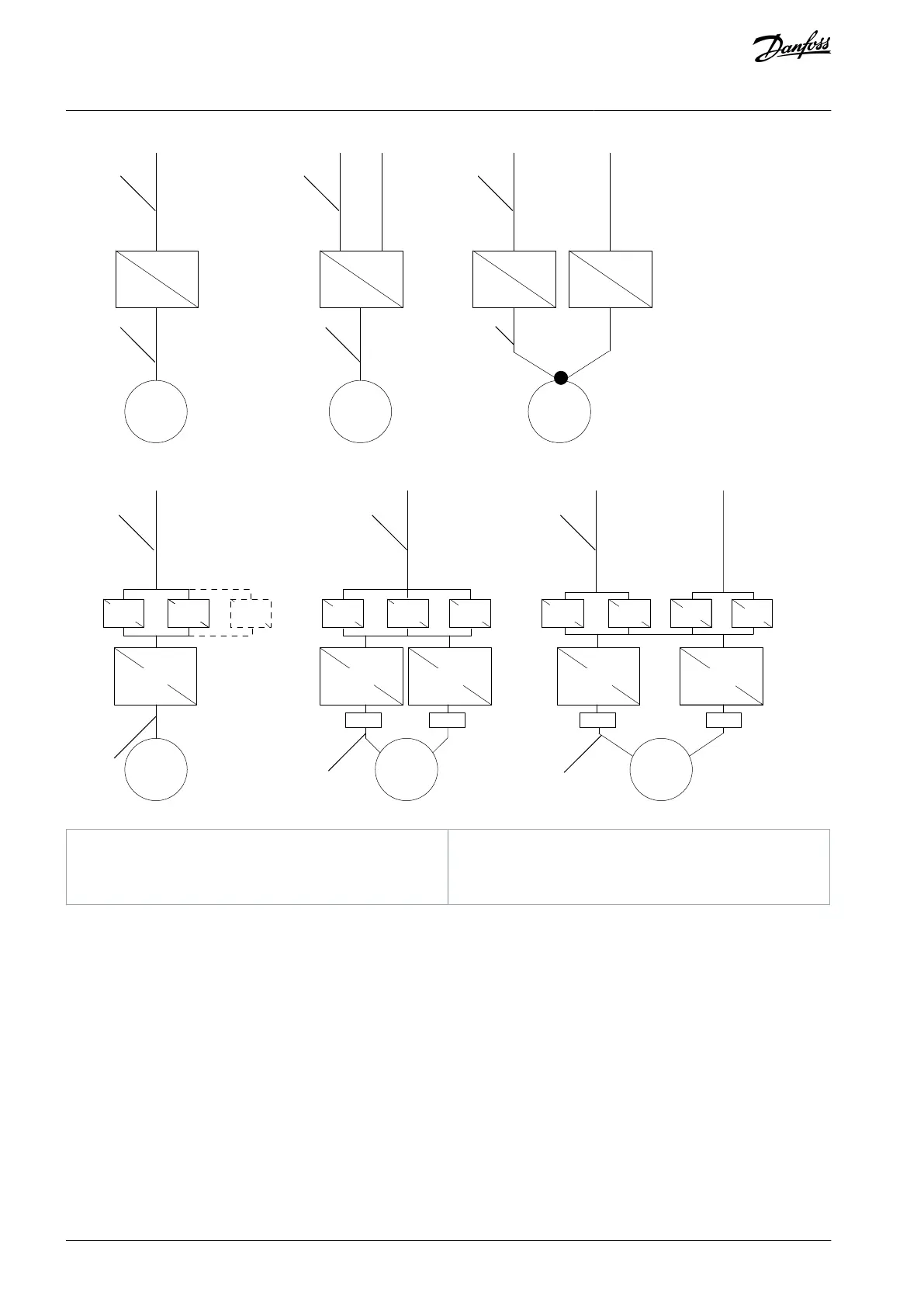

Illustration 24: Topology of Mechanical Sizes FR9–FR14, 6/12-pulse Supply
NOTE! Minimum cable length for double output without dU/dt filter is 5 meters (16.4 ft).
In FR13 units NXP1300 and NXP 1450 there are 3 NFE units.
NOTE! Minimum cable length for matched power units without dU/dt filter is 5 meters (16.4 ft). For unmatched power units, a min
of 40 m (131.2 ft) of cable length is required from each power unit if dU/dt or sine filters are not used.
NOTE! Some options affect the wiring direction and principle for power cables; always check delivery specific documentation for
exact information.
6.1.6 DC Supply and Brake Resistor Cables
VACON
®
6- and 12-pulse AC drives have terminals for the DC supply and an optional external brake resistor. These terminals are
identified with B–, B+/R+, and R–. The DC bus connection is made to terminals B– and B+ and the brake resistor connection to R+
and R–. The AC drive terminals can also optionally be wired to customer terminals in the cabinet. For additional information on
integrated brake chopper and resistor values, see the VACON
®
NXS/NXP Wall-mounted and Standalone Operating Guide.
AQ351737303996en-000201 / DPD0088846 | Danfoss A/S © 2023.09
Electrical Installation
VACON® NXP IP00 Drive Modules
Operating Guide
