Table 5: Available EMC Classes
EMC class in
IEC/EN
61800-3 + A1
VACON
®
equiva-
lent EMC
class
Description
Availa-
ble for
C4
T
These AC drives comply with the standard IEC/EN 61800-3 + A1 if they are used in IT
systems. In IT systems, the networks are isolated from ground, or connected to ground
through high impedance to decrease the leakage current.
N O T I C E
If the AC drives are used with other supplies, they do not comply with the EMC re-
quirements.
All prod-
ucts
No EMC emis-
sion protec-
tion
N
The AC drives of this category do not give EMC emission protection. These drives are
installed in enclosures.
N O T I C E
An external EMC filter is usually necessary to comply with the EMC emission require-
ments.
N O T I C E
RADIO INTERFERENCE
In a residential environment, this product can cause radio interference.
Take supplementary mitigation measures.
IP00
3.6 Control Panel
3.6.1 Keypad
The VACON
®
keypad has 9 buttons with which to control the AC drive (and motor), set parameters, and monitor values.
e30bf978.10
K
A B C
L
D
E
J
F
I H G
reset
ready
run
fault
select enter

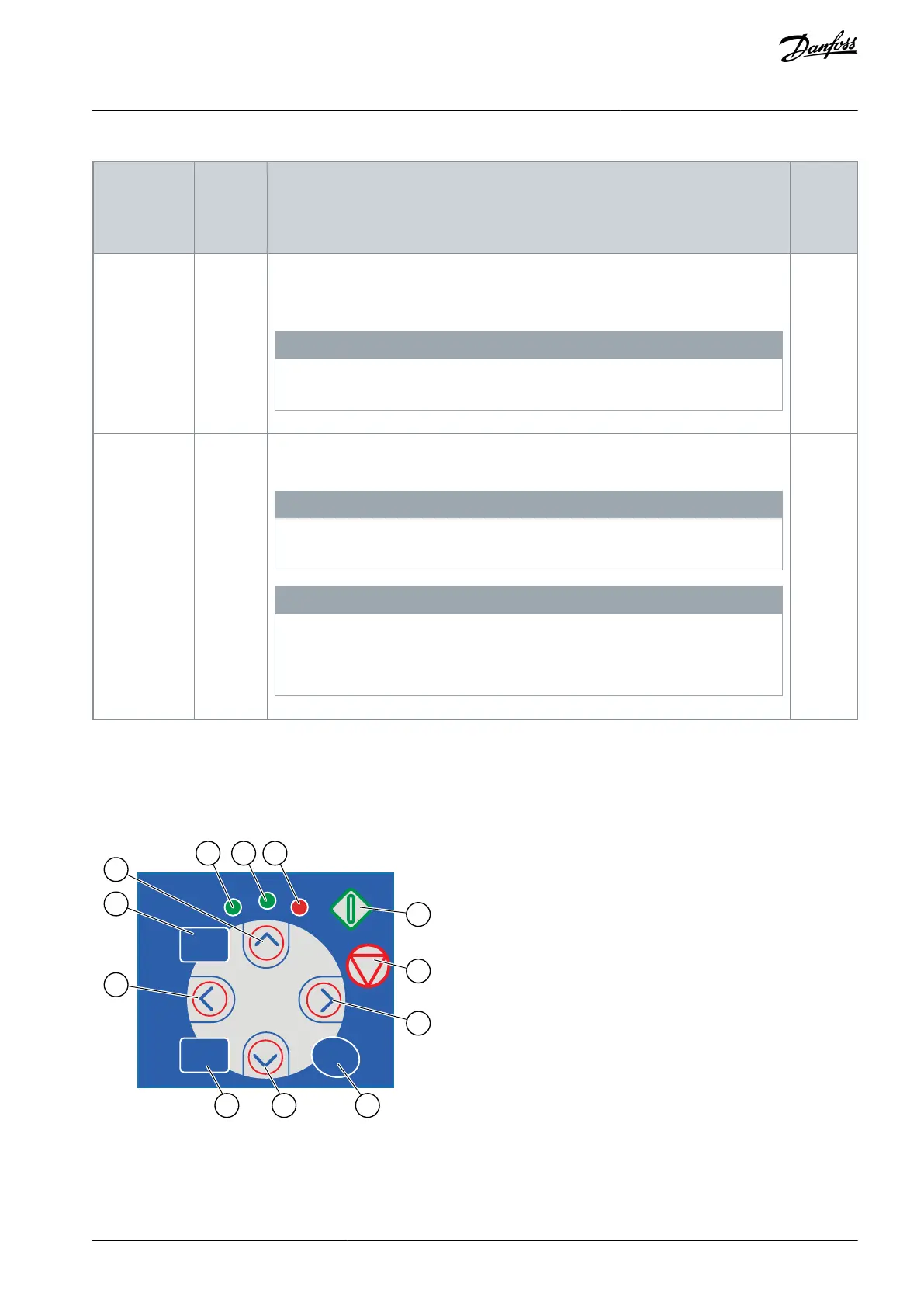

Illustration 2: Keypad Buttons for VACON
®
NXP
