12.3.4.2 Dimensions for Power Unit, FR9
400
(15.75)
480
(18.90)
257
(10.12)
1150
(45.28)
1120
(44.09)
9
(0.35)
9
(0.35)
362
(14.25)
340
(13.39)
Ø21
(0.83)
e30bk649.10

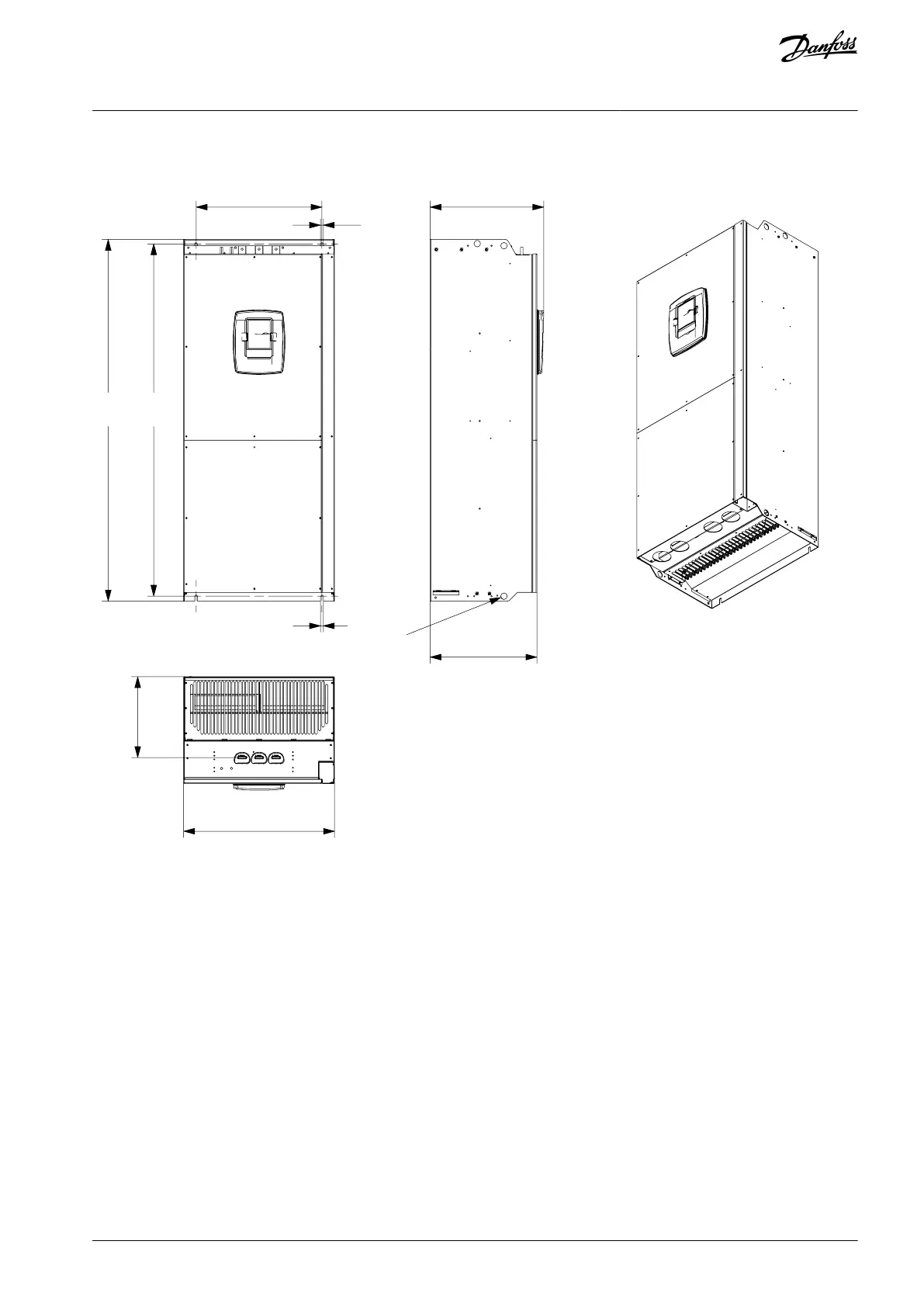

Illustration 78: Power Unit Dimensions, FR9
12.3.4.3 Dimensions for Power Unit, FR10
NOTE! VACON® NXP AC drive enclosure size FR12 is built of two FR10 units.
AQ351737303996en-000201 / DPD00888 | 123Danfoss A/S © 2023.09
Specifications
VACON® NXP IP00 Drive Modules
Operating Guide
