Danfoss VACON NXP IP00 User Manual

Example 5
A1A1
dUdt dUdt
A B C D
1
2 2 2 2
1 1 1
3 3
4 4
U V W U V W
PE
5 5 5 5
PE
e30bj132.10

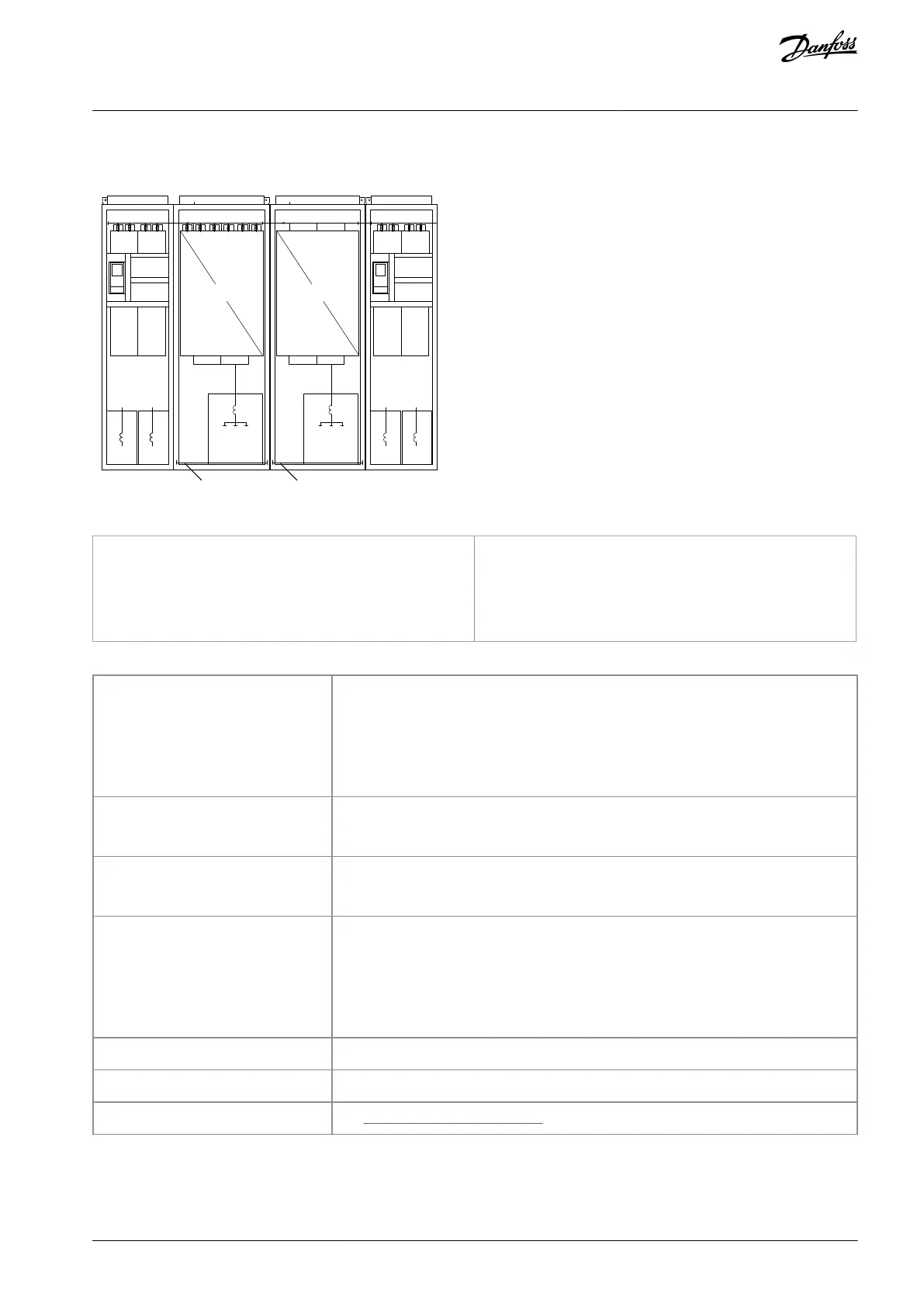

Illustration 15: Example Installation 5
1
NFE units
2
AC chokes
3
FI13 (inverter unit)
4
dU/dt filter
5
DC busbars
Table 15: Cabinet Data for Installation Example 4
This installation applies to drive types:
NXP1770 5
NXP2150 5
NXP1500 6 (12-pulse)
NXP1900 6
NXP2250 6
Minimum required cabinet width:
600 mm (Cab. A and D) + 800 mm (Cab. B and C)
(23.62 in (Cab. A and D) + 31.50 in (Cab. B and C))
Minimum required cabinet height:
2200 mm
(86.61 in)
Required weight carrying capacity:
NXP1500 6 (12-pulse): 450 kg (992.1 lb) (Cab. A and D); 540 kg (1190.5 lb) (Cab. B and C)
NXP1770 5: 450 kg (992.1 lb) (Cab. A and D); 540 kg (1190.5 lb) (Cab. B and C)
NXP1900 6: 450 kg (992.1 lb) (Cab. A and D); 540 kg (1190.5 lb) (Cab. B and C)
NXP2150 5: 480 kg (1058.2 lb) (Cab. A and D); 540 kg (1190.5 lb) (Cab. B and C)
NXP2250 6: 480 kg (1058.2 lb) (Cab. A and D); 540 kg (1190.5 lb) (Cab. B and C)
Protection rating:
This manual applies to IP21.
Construction:
According to EN60439-1
Ventilation openings:
See 5.2.1 Ventilation of the Cabinet.
AQ351737303996en-000201 / DPD00888 | 37Danfoss A/S © 2023.09
Mounting the Unit
VACON® NXP IP00 Drive Modules
Operating Guide
