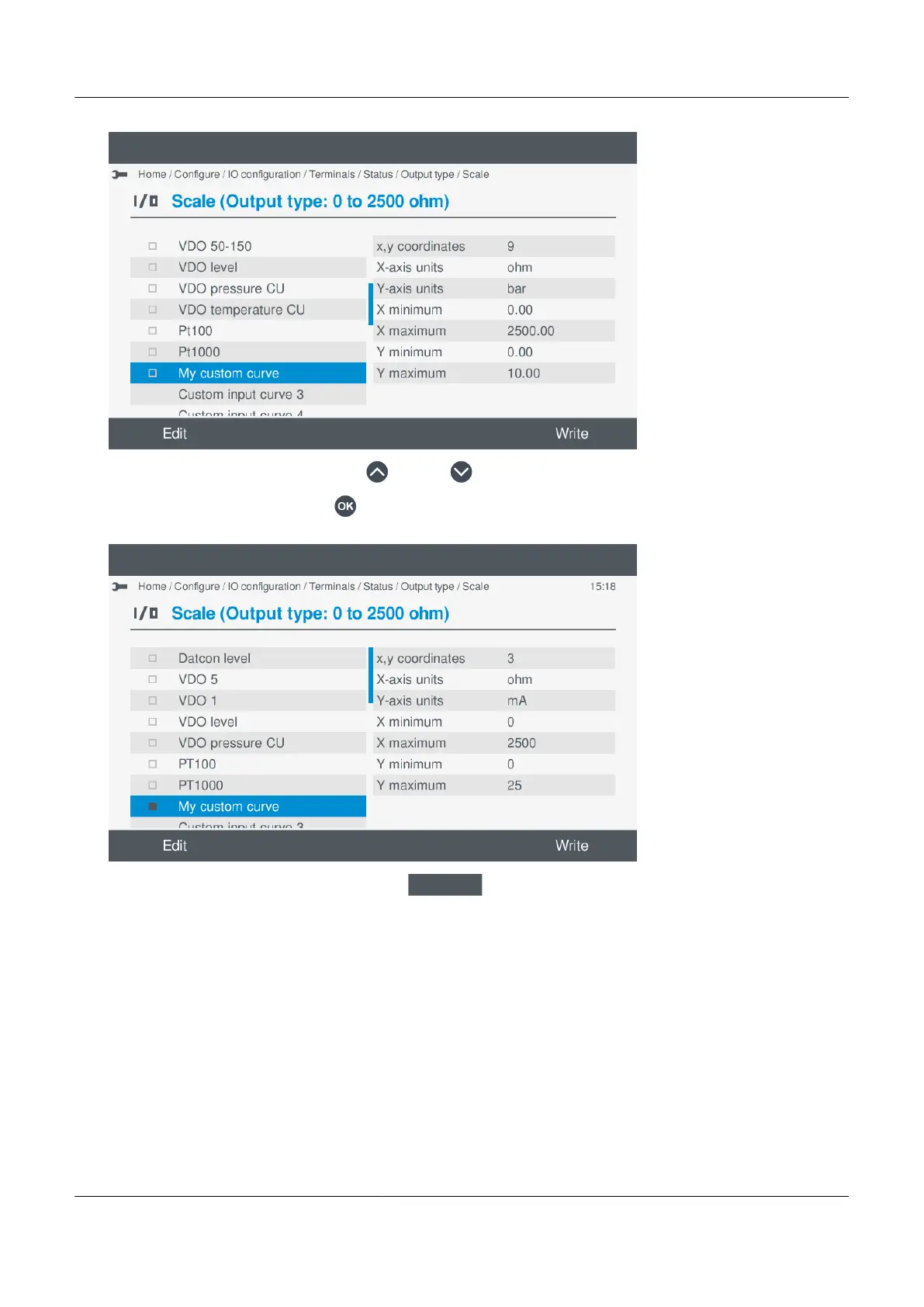

7. Highlight the custom curve, by pressing Up or Down .
8. Select the custom curve, pressing OK :
• The selected custom curve is marked with a solid box.
•
9. To save the settings to the controller, select Write
.
• You are returned to the terminals page.
7.9 Analogue output (AO) / Pulse width modulation (PWM)
7.9.1 Configure Analogue output (AO)
To configure the analogue output (AO):
1. Select the hardware module, terminal(s), for an Analogue output (AO) to be used.
2. If required, select the function input (x-axis).
PPM 300 Operator's manual 4189340910 UK
