SHORE connection controller push-buttons

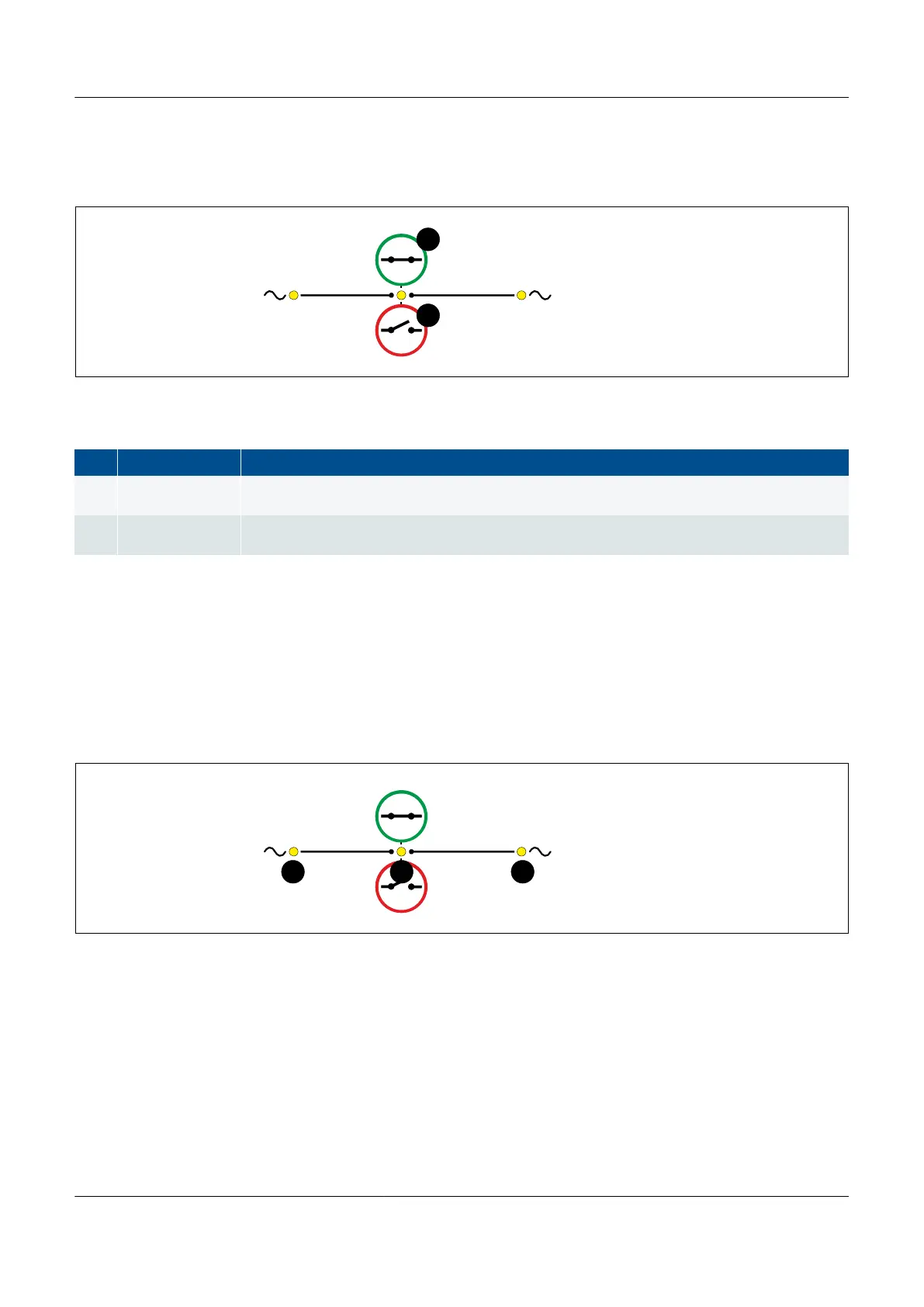

Figure 3.10 SHORE connection controller display unit push-buttons
1
2
Table 3.10 SHORE connection controller push-button functions
No. Name Function
1 Close breaker
PMS control: The controller starts the breaker close sequence.
Switchboard control: The controller ignores the input from this push-button.
2 Open breaker
PMS control: The controller starts the breaker open sequence.
Switchboard control: The controller ignores the input from this push-button.
3.1.7 BUS TIE breaker controller LEDs and push-buttons
The bottom strip of the front of the display unit is customised for the BUS TIE breaker controller. It includes LEDs that show
the equipment and controller status, as well as push-buttons for operator actions.
BUS TIE breaker controller LEDs
Figure 3.11
BUS TIE breaker controller display unit LEDs
1 2 3
