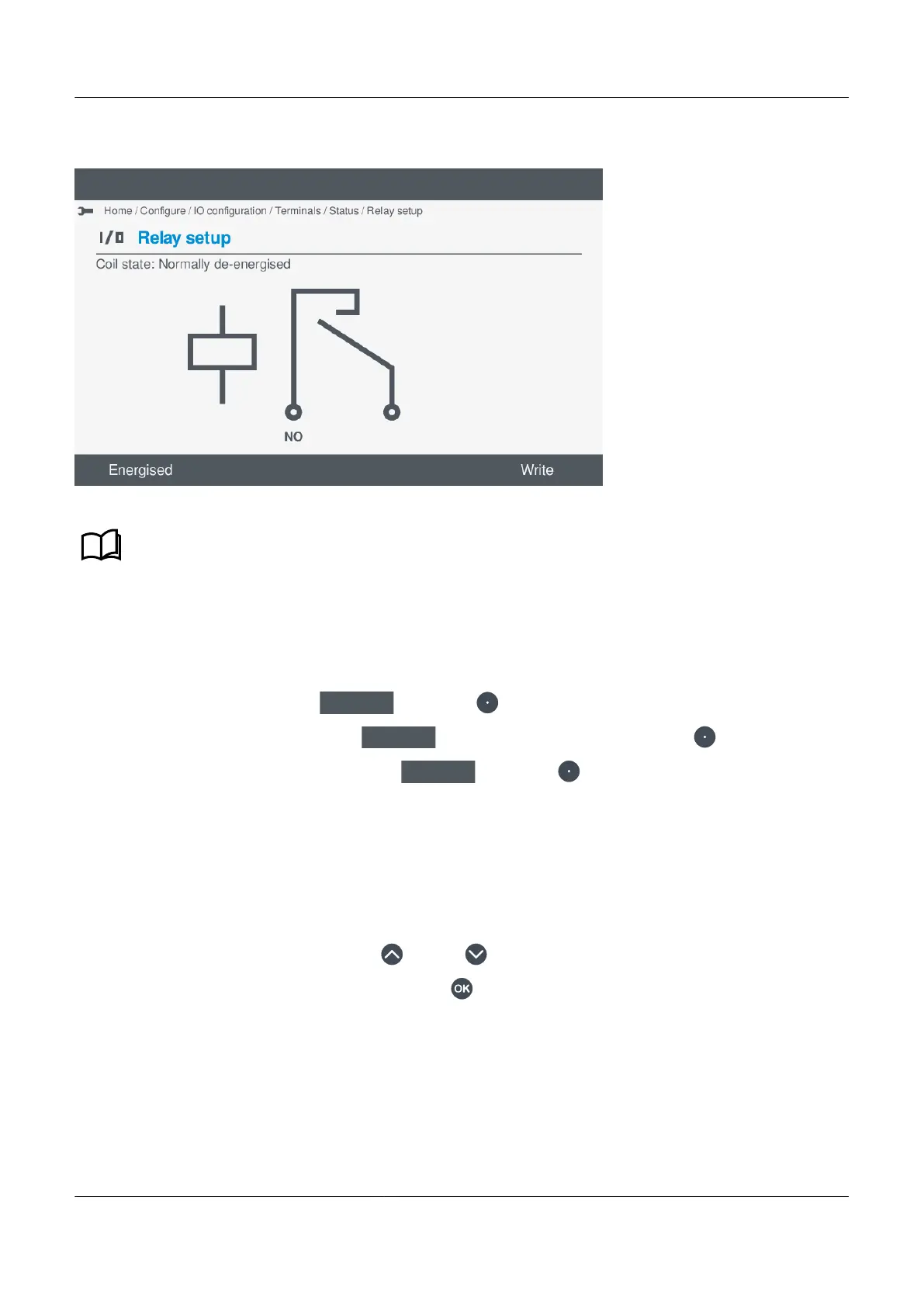

Figure 7.6 Example relay setup
See Hardware characteristics, in the Designer's handbook for more information about the hardware modules that
support relays.
Configure the relay
1. You can set the relay as either Energise or De-energise.
• The current setting is shown on the display.
2. You can set the relay as either Energise or De-energise.
3. To set as Energise select Energise
, by pressing .
4. To set as De-energise select De-energise
, by pressing the appropriate push-button .
5. To save the setting to the controller, select Write
, by pressing .
• You are returned to the terminal screen.
7.7.3 Configure function(s)
The functions available are organised in to categories and groups, which is similar to a tree structure view.
Selecting a function
1. Highlight a category or group, by pressing Up
or Down .
2. Select the highlighted category or group, by pressing OK .
• A further group may be shown or the function list to select the actual function.
• If a further group is shown, simply repeat step 1 to locate and open the required group.
PPM 300 Operator's manual 4189340910 UK
