6159930310_07_01/2016- 22 -

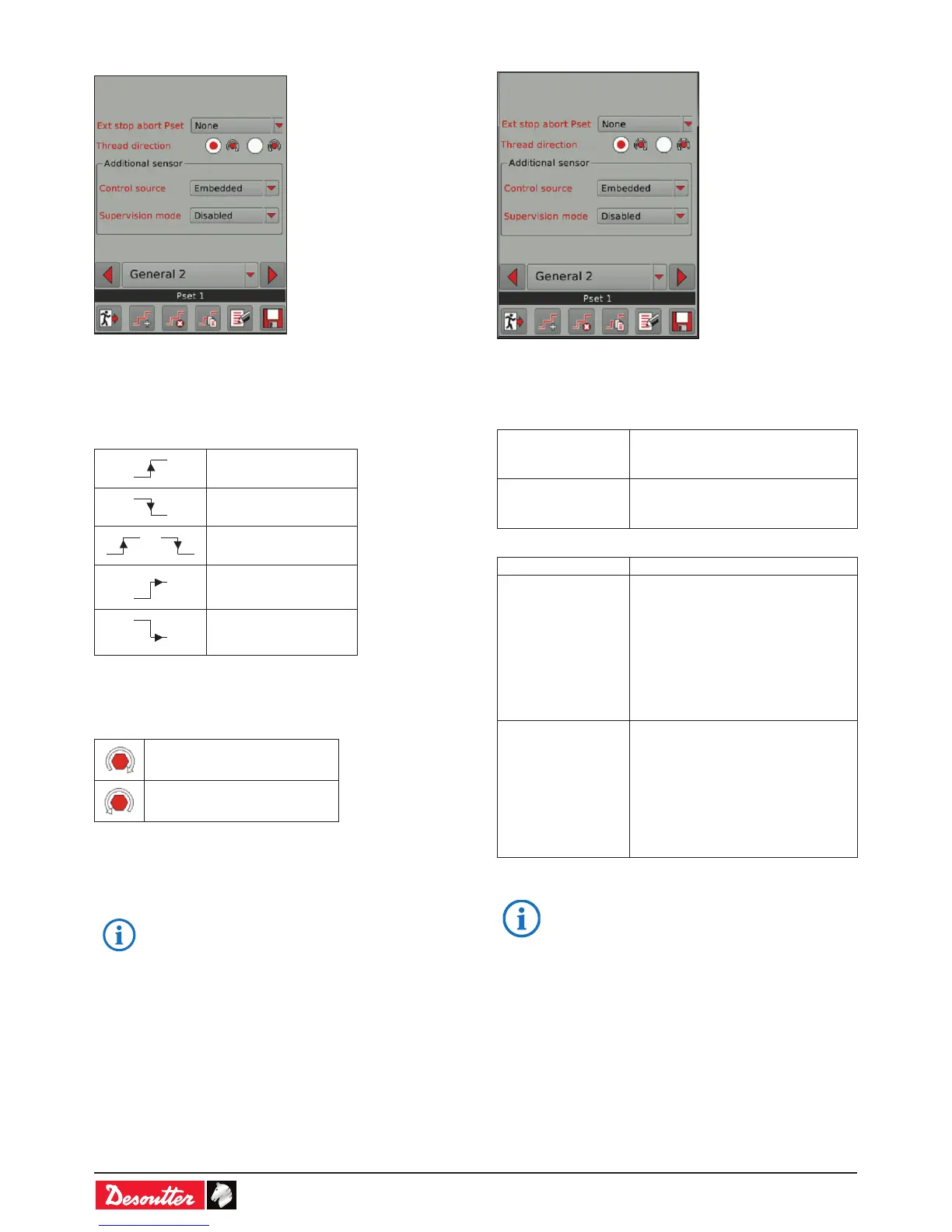

6.3 - General 2
6.3.1 - External stop abort Pset
When the input event «External stop abort Pset» is activated,
the Pset automatically stops.
The execution conditions can be as follows:
on rising edge
on falling edge
on change (rising or
falling)
on high level
on low level
6.3.2 - Thread direction
• Select the thread direction of the screw.
clockwise
counterclockwise
In the «Run reverse» mode, the tool rotates in the opposite
direction of the «Thread direction».
This selection has no effect on the rotation direction of the
tool motor in the Pset.
• Refer to chapter «7.6 - Motor control» to set up
the rotation direction of the motor.
• Go to the «Pset start / stop» screen by tapping the left or
right arrow.
6.3.3 - Additional sensor
When an additional transducer is detected on the tool, the tab
"Additional transducer" is automatically displayed.
• Select the transducer which will be used to control the
tightening operation during the Pset.
Embedded
transducer
The embedded transducer is the
main transducer of the tool and it is
assembled at the factory.
Additional transducer The additional transducer is an
accessory and is mounted by the
customer himself.
• Select the supervision mode:
Disabled No comparison is done.
Consistency mode The drift between both transducers
is measured during the tightening
operation.
The tightening process stops when
the drift is greater than the tolerance
values set.
Control transducer values are
highlighted on display.
Redundancy mode The tightening report comparison
is made between both transducers
when the tightening operation is
completed.
Two reports OK are required to
achieve a global result OK.
Monitoring transducer values are
highlighted on display.
The results and curves are displayed in "CVI
MONITOR" software.
• Refer to the user manual of CVI MONITOR
available at http://resource-center.desouttertools.
com.
