3 - CONTROLLER

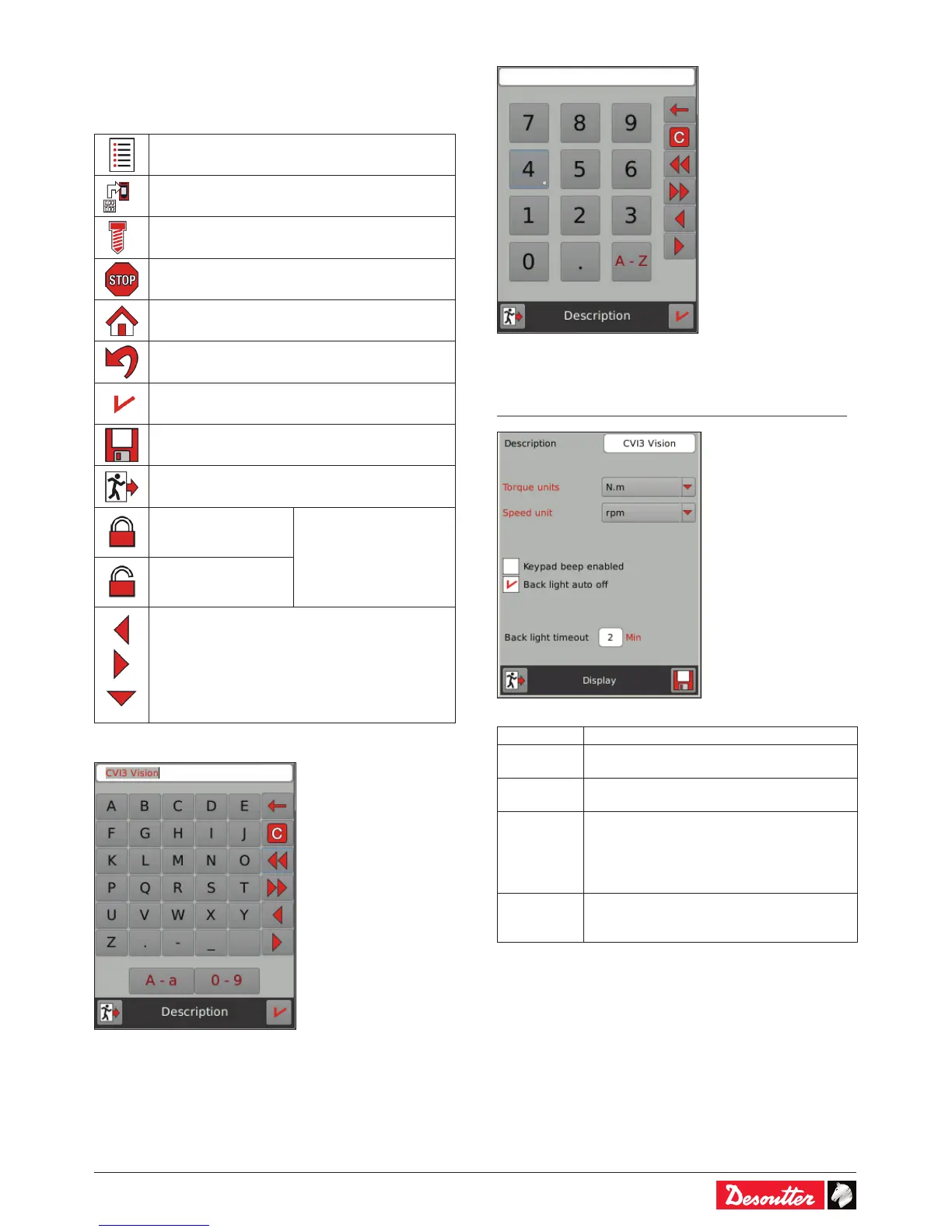

3.1 - Using icons and keyboards
to display the main menu.
to display the Monitoring view menu.
#
Selected Pset number.
The tool is locked.
• Tap the icon to show why the tool is locked.
to quit and return to the Monitoring screen.
to quit and return to the previous screen
to validate
to save in the controller memory
to quit without saving
the screen is locked
• Refer to chapter
"Access manager".
the screen is unlocked
• Use the left, right or down arrow keys:
- to navigate from one screen to another
- to change the tool
• Use the text keyboard to write and customize the texts.
• Use the digital keyboard to enter the gures.
3.2 - Display
Path: Main menu / Conguration / Controller / User interface
• Enter a description (up to 40 characters).
Torque unit Nm, ft lb, in lb, kg m, kg cm, oz in.
Speed unit rpm
% of max tool speed
Keypad beep
enabled
If selected, this function enables a "Beep"
sound each time a button is pressed.
Back light
auto off
The screen will be automatically turned off
after the timeout.
The screen will turn on as soon as:
- the screen is touched
- when a tightening result is displayed.
Back light
timeout
The timeout value for the automatic back
light switching off can be set between 1 and
60 min.
