7.4 - Monitoring & options
For all control strategies, torque and angle are systematically
monitored.
For torque and angle monitoring, it is possible to choose
either the peak value or the nal value to be monitored.
Generally, the peak value is used for the torque and the nal
value for the angle.

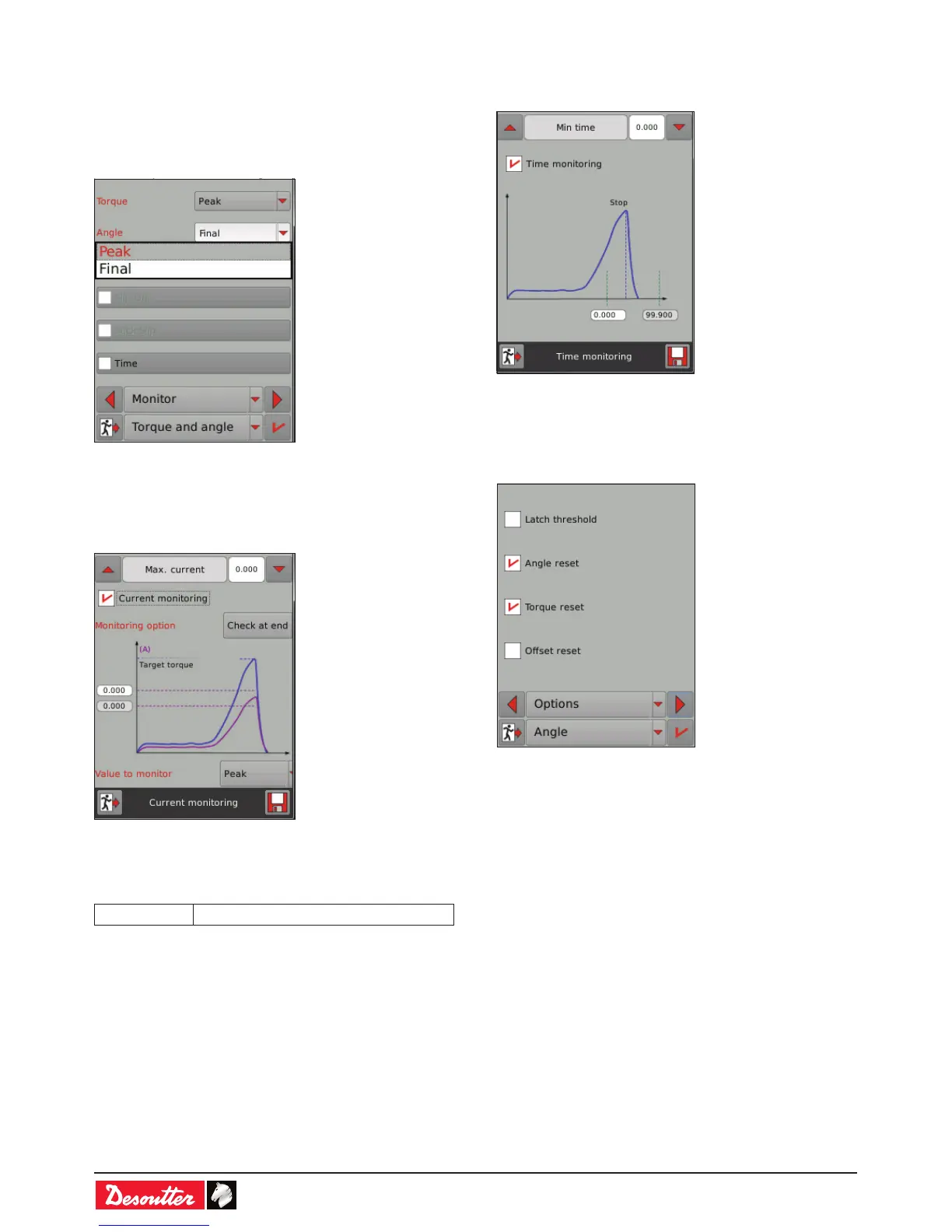

• Select torque and angle monitorings: peak/nal
• Tick one or more monitorings.
7.4.1 - Current monitoring
The «Current / check at end» monitoring checks the current
value when the target torque is achieved depending on Peak
or Final torque monitored.
The monitored value can be «Peak» or «Final».
Report OK IF Min current < Current < Max current.
• Fill in the values.
7.4.2 - Time monitoring
The time monitoring is made to frame the tightening operation
duration.
A step duration can last from 0 to 600 sec.
• Fill in the values.
7.5 - Step options
7.5.1 - Angle reset
• Tick this option to reset the angle measurement at the
beginning of the step.
7.5.2 - Torque reset
• Tick this option to reset the torque measurement at the
beginning of the step.
7.5.3 - Offset reset
• Tick this option to reset the «Prevailing torque offset» at the
beginning of this step.
