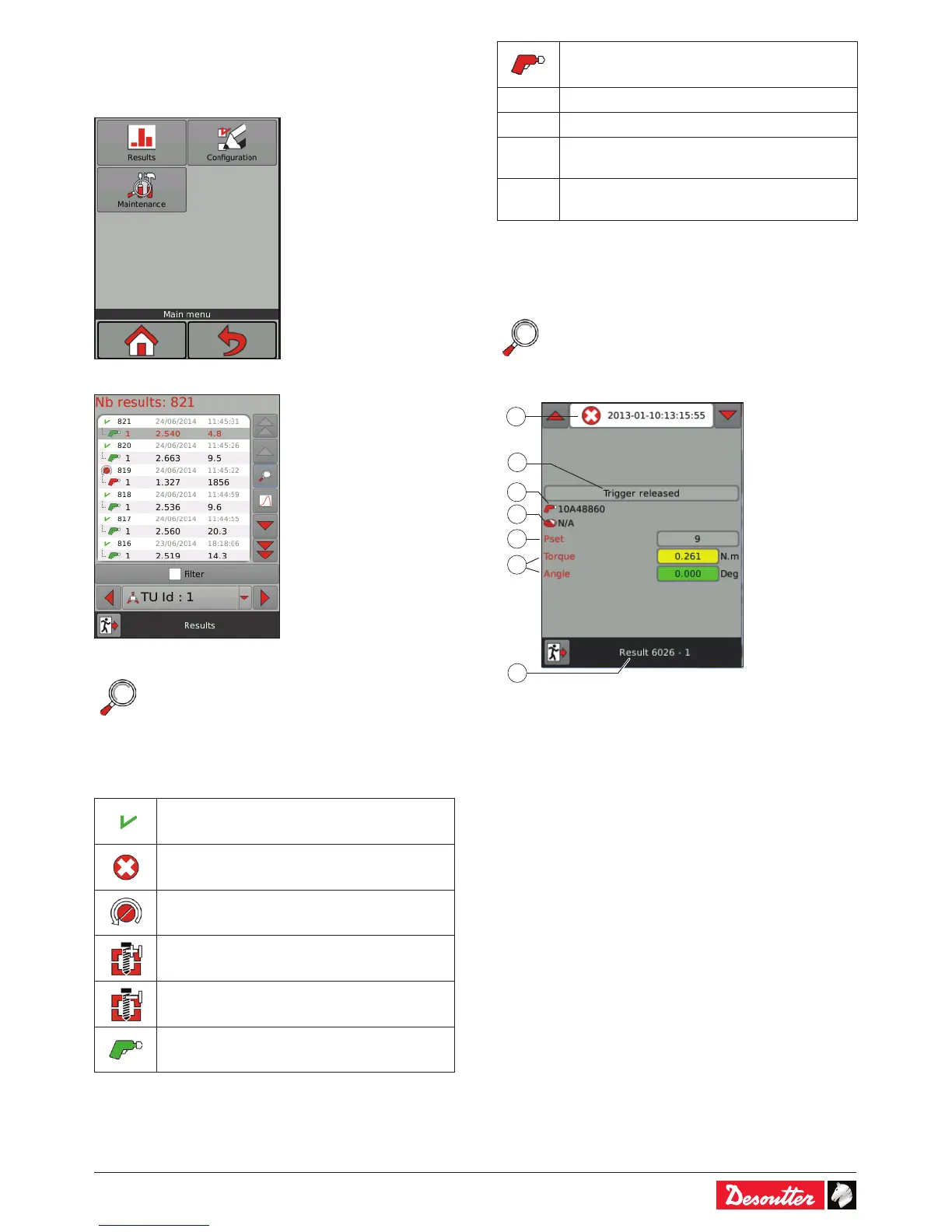

10 - RESULTS
• Tap «Results» on the main menu.
The following screen is displayed:
Up to 10,000 results can be saved.
• Select and tap one result, then tap this icon to
display its details
• Use the arrow buttons to scroll through the list.
10.1 - Main screen description
Report OK - The operation is complete
Report NOK - The operation is not sucessful.
Run reverse
Batch increment
Batch decrement
Tool report OK
Tool report NOK
1 Tool no. 1
2 Tool no. 2
1st
column
Torque value
2nd
column
Angle value
10.2 - Detailed view
• Use the arrow buttons to scroll through the list.
• Select and tap one result, then tap this icon to
display its details
For example:
1
2
3
4
5
6
7
Legend
1 Report status and date/time
2 Stop source
3 Tool serial number
4 Cable serial number
5 Pset ID
6 Torque & angle values - Monitoring status
7 Result ID - Tool ID
