6159930310_07_01/2016- 44 -

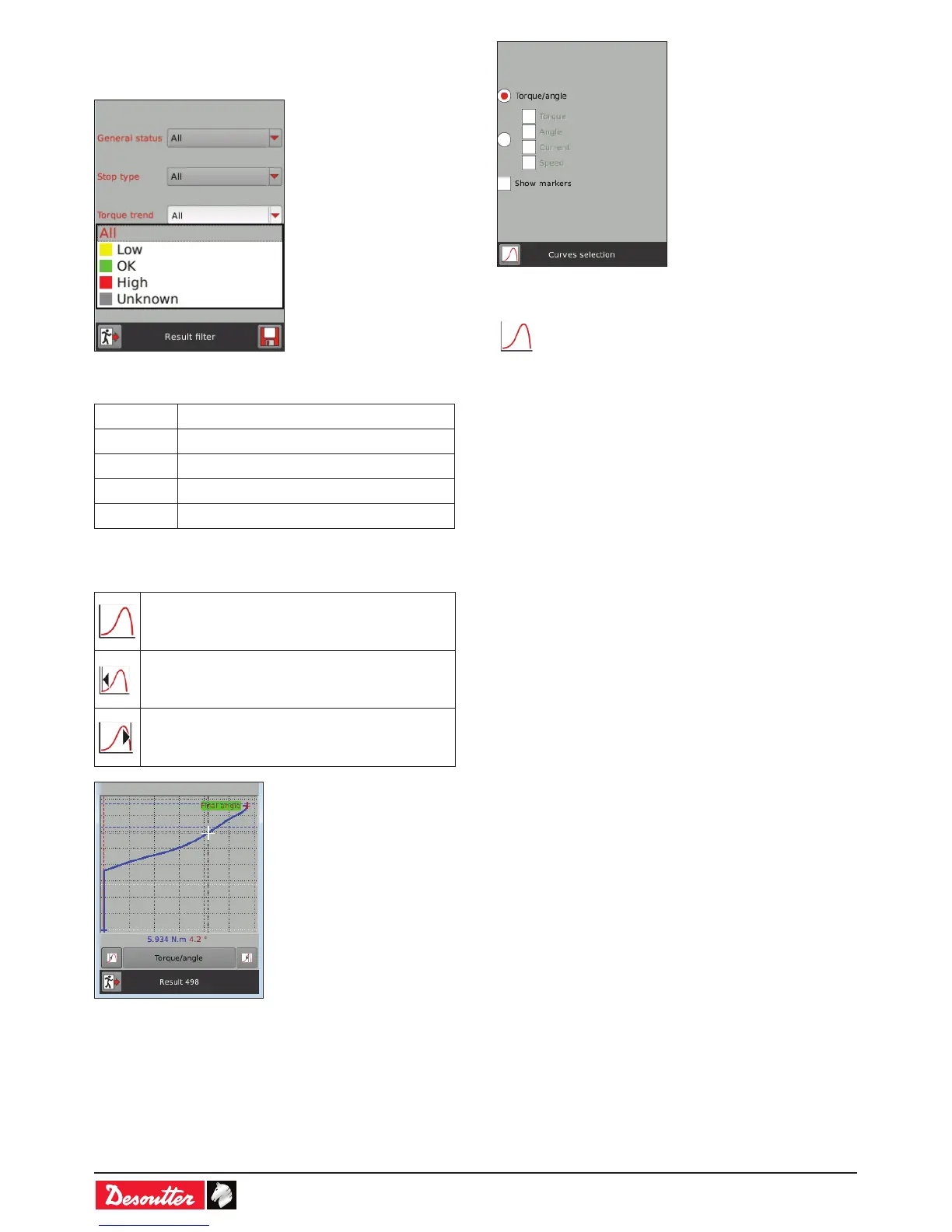

10.3 - Filter
• Tick «Filter» to display this screen:
• Select the lters, tick «Filter enabled» and press the
«Save» icon to save the selection.
Color Trend
yellow Low torque, low angle
green Torque OK, angle OK
red High torque, high angle
grey Unknown
10.4 - Curve
• Select a result and tap on this icon to display
its curve. It may happen that there is no curve
because the results are not representative.
• Use this icon to zoom the rst value.
• Use this icon to zoom the last value.
• Touch and slide from top left to bottom right to zoom in a
particular area.
• Tap the middle of the screen to zoom out.
• Tap «Torque Current» eld to select the display parameters
Ticking «Show markers» will allow you to better interpret the
curve.
• Tap this icon to view the new curve display.
