Desoutter CVI3 Vision User Manual

6159930310_07_01/2016 - 23 -

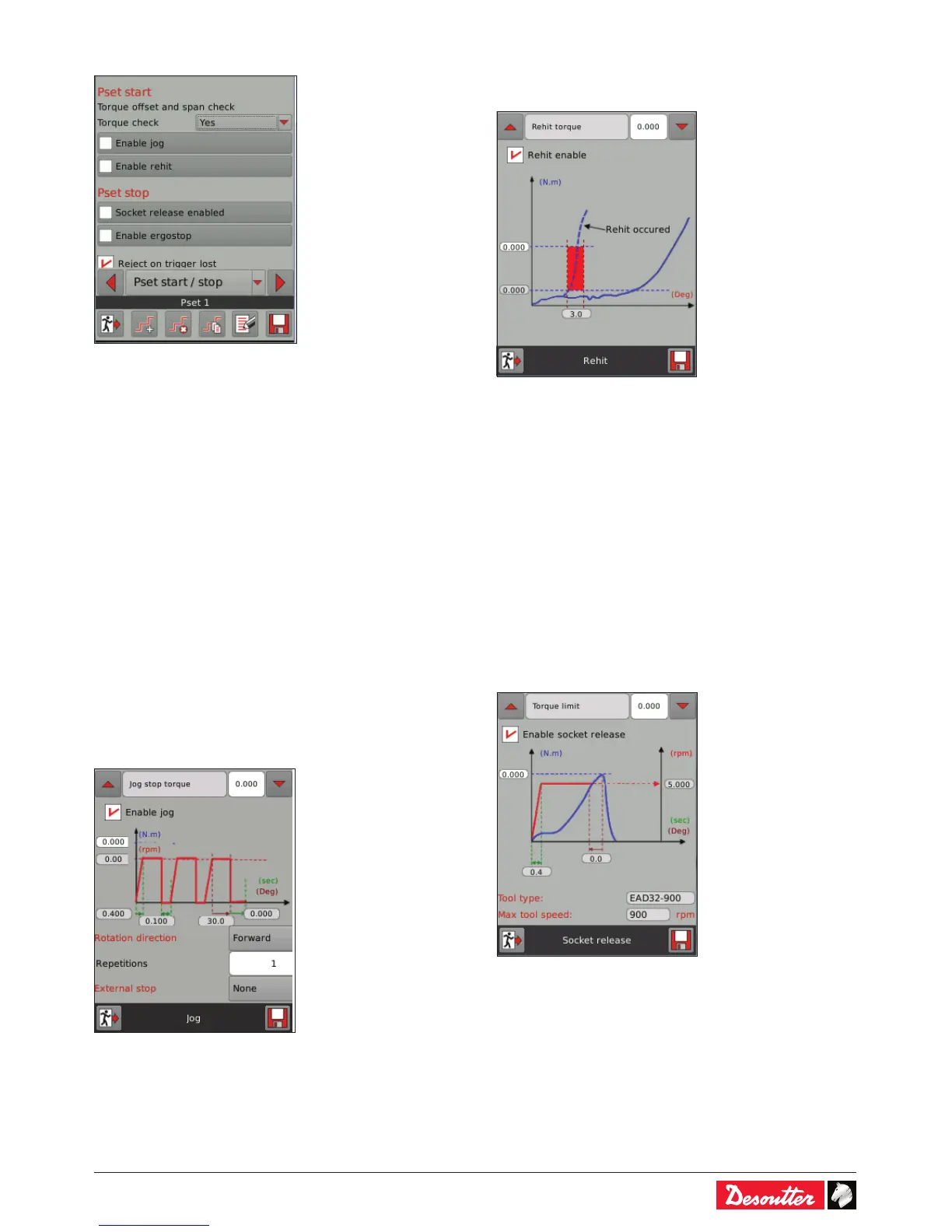

6.3.4 - Pset start/stop
6.3.5 - Torque transducer offset and span check
If yes, the torque transducer offset value will be checked
at each Pset start and a span test will be performed. It is
recommended to set this parameter to «Yes» to clear the
torque transducer offset and to check the span drift.
6.3.6 - Reject on trigger lost
The tightening report will be declared as NOK if the start
signal is released before the target is reached.
• Tick this option: yes / no.
If yes, the Pset is rejected if the start signal is released before
the end of the tightening operation.
If no, the report is only based on trend (the start signal is not
taken into account in the report calculation).
6.3.7 - Jog
This function helps to t the tool socket onto a bolt.
When enabled, the tool turns a given «rotation angle»
in a specic direction (forward, reverse or alternate) and
repeatedly (n times).
• Tick the box on the top left to activate the function.
6.3.8 - Rehit
This function is used to detect that a joint has been re-
tightened.
The conditions for rehit are:
- the «Rehit» function is enabled
AND
- the Rehit torque is reached before having reached the
Rehit angle.
i.e.: Angle* ≤ Rehit angle
* angle = angle
rehit torque
- angle
rehit threshold
• Tick the box on the top left to activate the function.
6.3.9 - Socket release
This function is used to release the constraint between the
socket and the screw. When relaxation is enabled, the tool
rotates in reverse a few degrees in order to easily remove the
socket.
• Tick the box on the top left to activate the function.
