9.6.3 - Workgroup

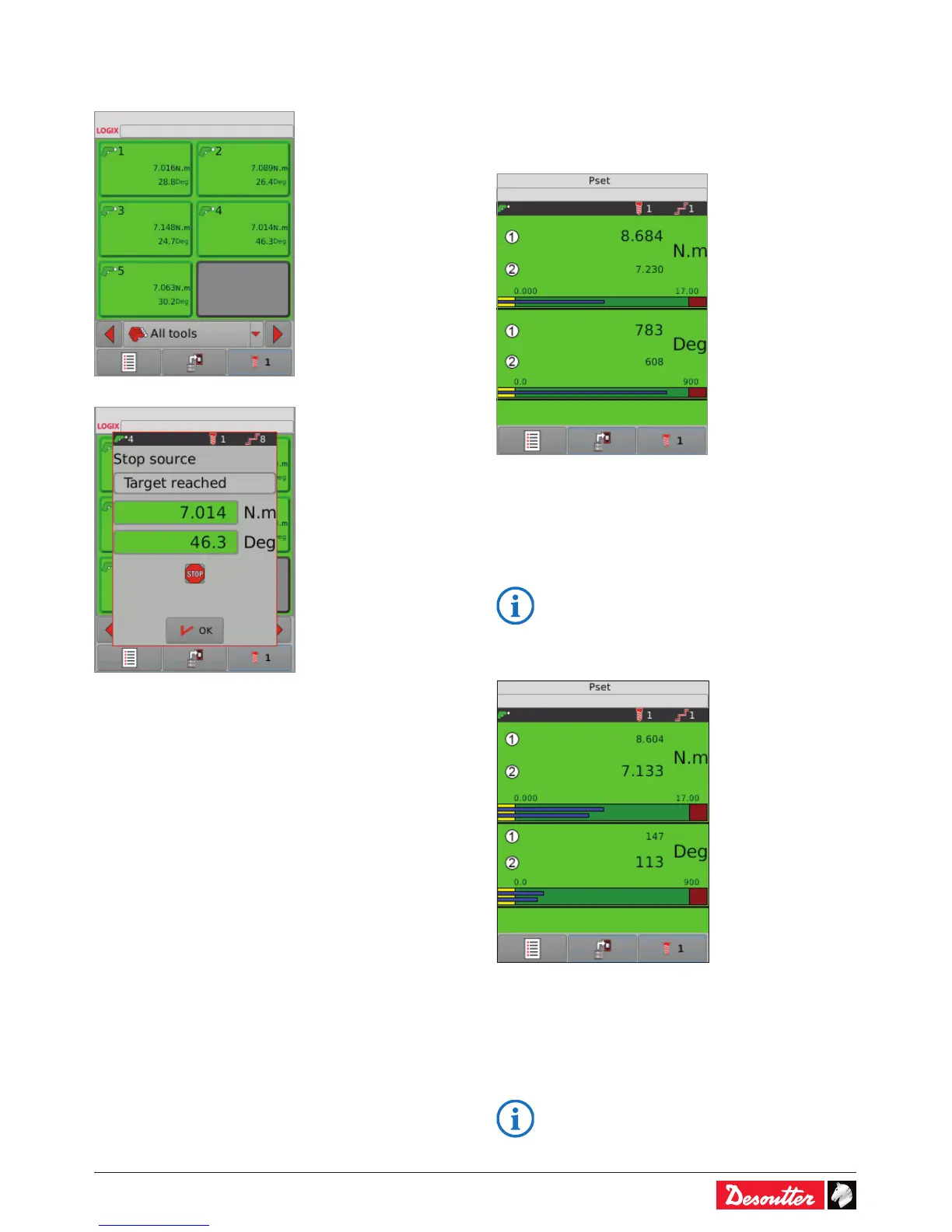

This screen shows several tiles corresponding to each tool of
the workgroup.
• Click any tile to display its detailed information.
9.7 - Additional transducer
When an additional transducer is detected on the tool, the
display of the results changes accordingly to the supervision
mode set in «CVI CONFIG» software.
9.7.1 - Consistency mode
In this example, the global result is declared «OK».
The drift between both transducers is within the tolerances
set in «CVI CONFIG».

Embedded transducer

Additional transducer
The torque and angle values of the control
transducer are in bold type.
9.7.2 - Redundancy mode
In this example, the global result is declared «OK».
The drift between both transducers is within the tolerances
set in «CVI CONFIG».

Embedded transducer

Additional transducer
The torque and angle values of the monitoring
transducer are in bold type.
