6159930310_07_01/2016 - 39 -
The batch report will be OK or NOK according to the
programming of the «batch count type» and «Forced batch
status» features.
Refer to CVI CONFIG user manual, chapter «11.5
- Assembly action».

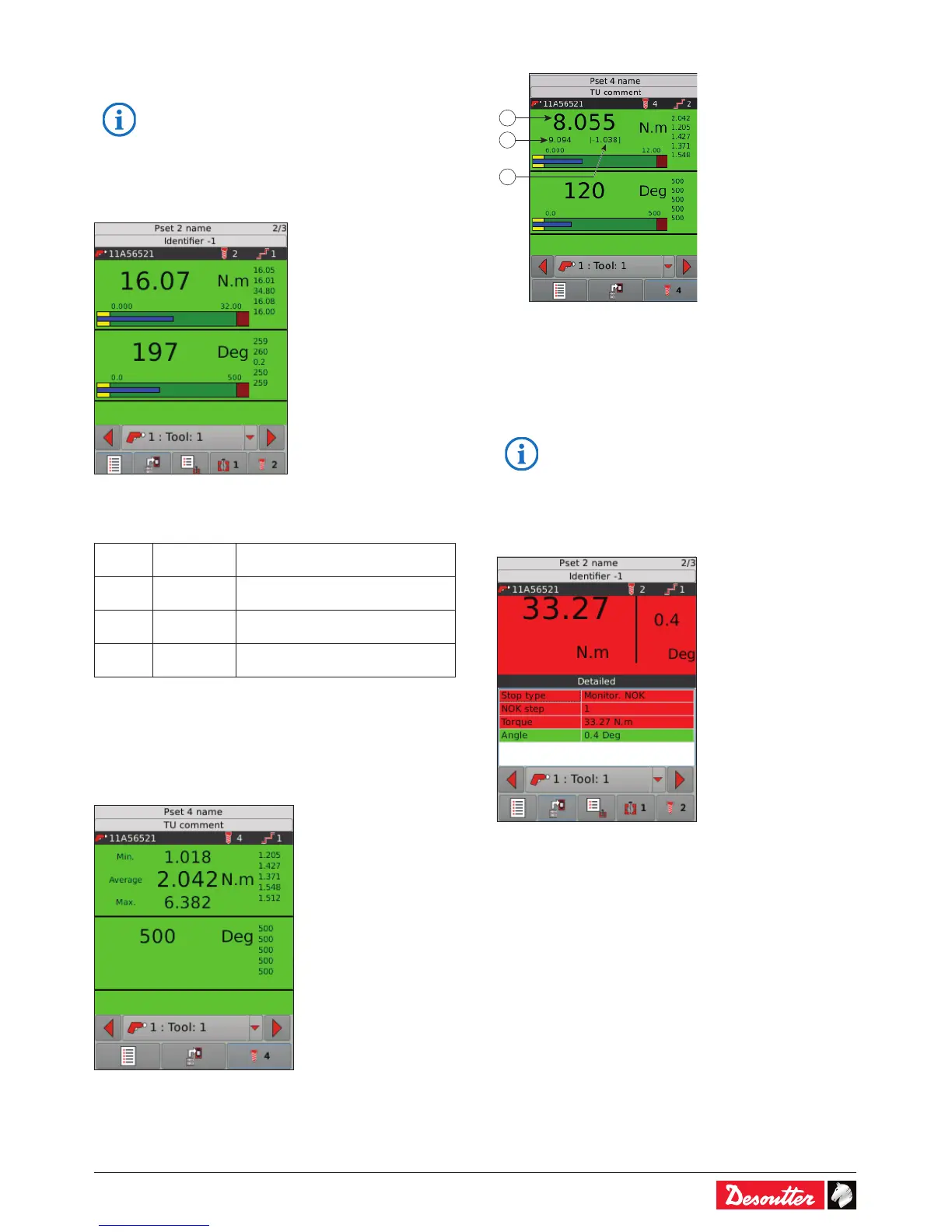

9.5.2 - Simple view
Tap «Simple» to display the screen:
The following values are displayed:
- Min. and max. torque
- Min. and max. angle
yellow low zone
Torque/angle below torque min/
angle min.
green zone OK
Torque/angle within acceptance
window
blue result Measured values
red high zone
Torque/angle above torque max/
angle max.
The torque and angle values are displayed as well as the last
5 torque and angle values.
Tap the screen to return to the monitoring view menu.
9.5.3 - Simple view - prevailing step
Last step - prevailing
The following measurements are displayed:
- Min. prevailing torque
- Average prevailing torque
- Max. prevailing torque
Prevailing and tightening
1
2
3
Legend
1 Target torque
2 Real torque
3 Offset applied
Refer to chapter to «7.10 - Prevailing» get more
information about the prevailing step.
9.5.4 - Detailed view
Tap «Detailed» to display the screen:
When the report is NOK, the following information is
displayed:
- stop source
- NOK step number
- monitorings NOK
Tap the screen to return to the monitoring view menu.
