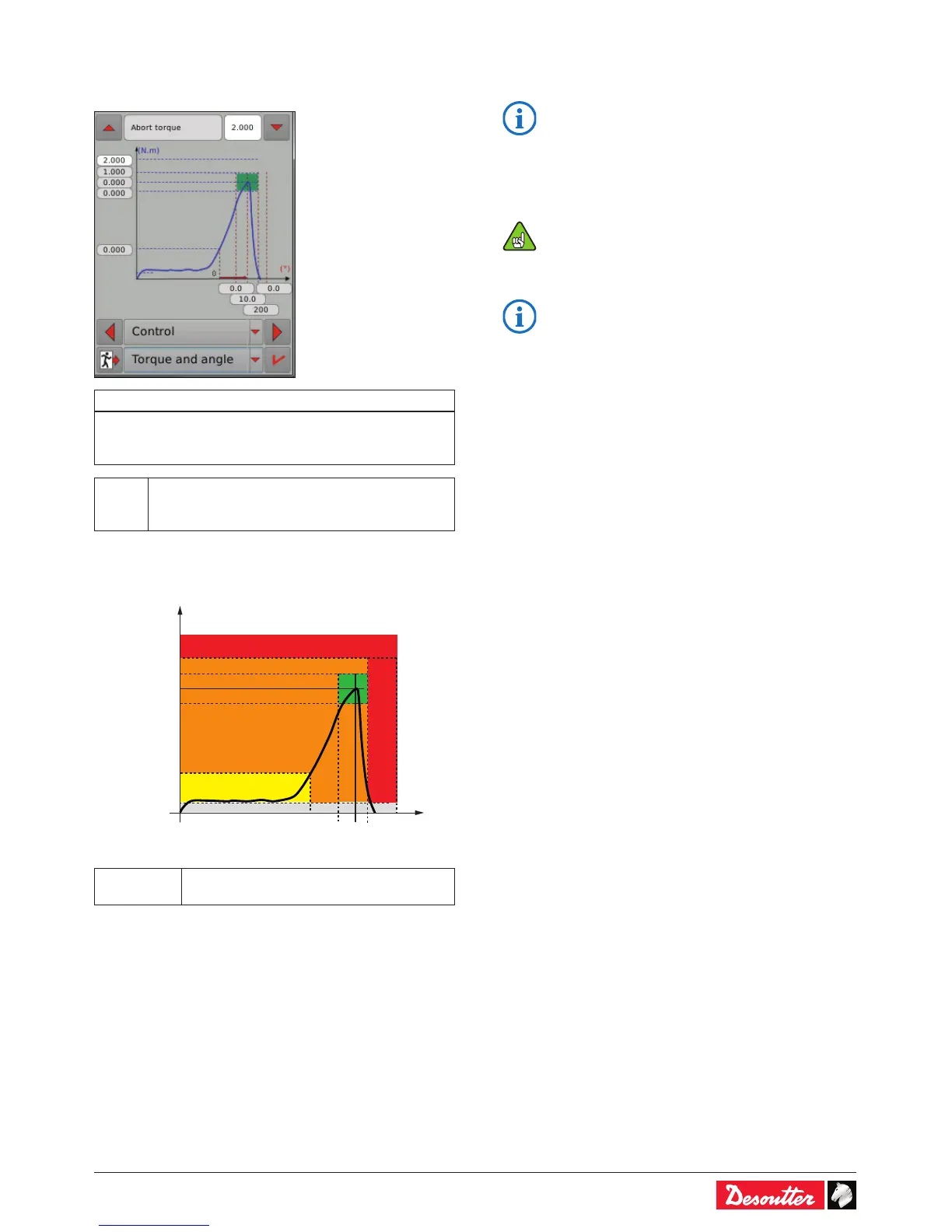

7.3.4 - Torque AND angle control
The tightening torque AND angle control strategy is adapted
for assemblies requiring tension accuracy.
Stop conditions
IF Torque ≥ Target torque AND Angle ≥ Target angle
OR IF Torque ≥ Abort torque
OR IF Angle ≥ Abort angle
Report
OK
IF Min torque < Peak or Final Torque < Max torque
AND
IF Min angle < Peak or Final Angle < Max angle
For each channel, the 3 report controller LEDs will light
according to the following diagram.
(Nm)
Remove and
remplace fastener
Max torque
Abort torque
Target torque
Min torque
Max
angle
Target
angle
Abort
angle
Min
angle
Start torque
Angle threshold
(°)
Result data Peak OR Final torque
Peak OR Final angle
7.3.5 - Yield point control
• Launch CVI CONFIG software to setup this
strategy.
• For more information, refer to the CVI
CONFIG user manual at http://resource-center.
desouttertools.com.
7.3.6 - Seating detection
• Check an ePOD2 is connected to the controller.
• Launch CVI CONFIG software to setup this
strategy.
• For more information, refer to the CVI
CONFIG user manual at http://resource-center.
desouttertools.com.
