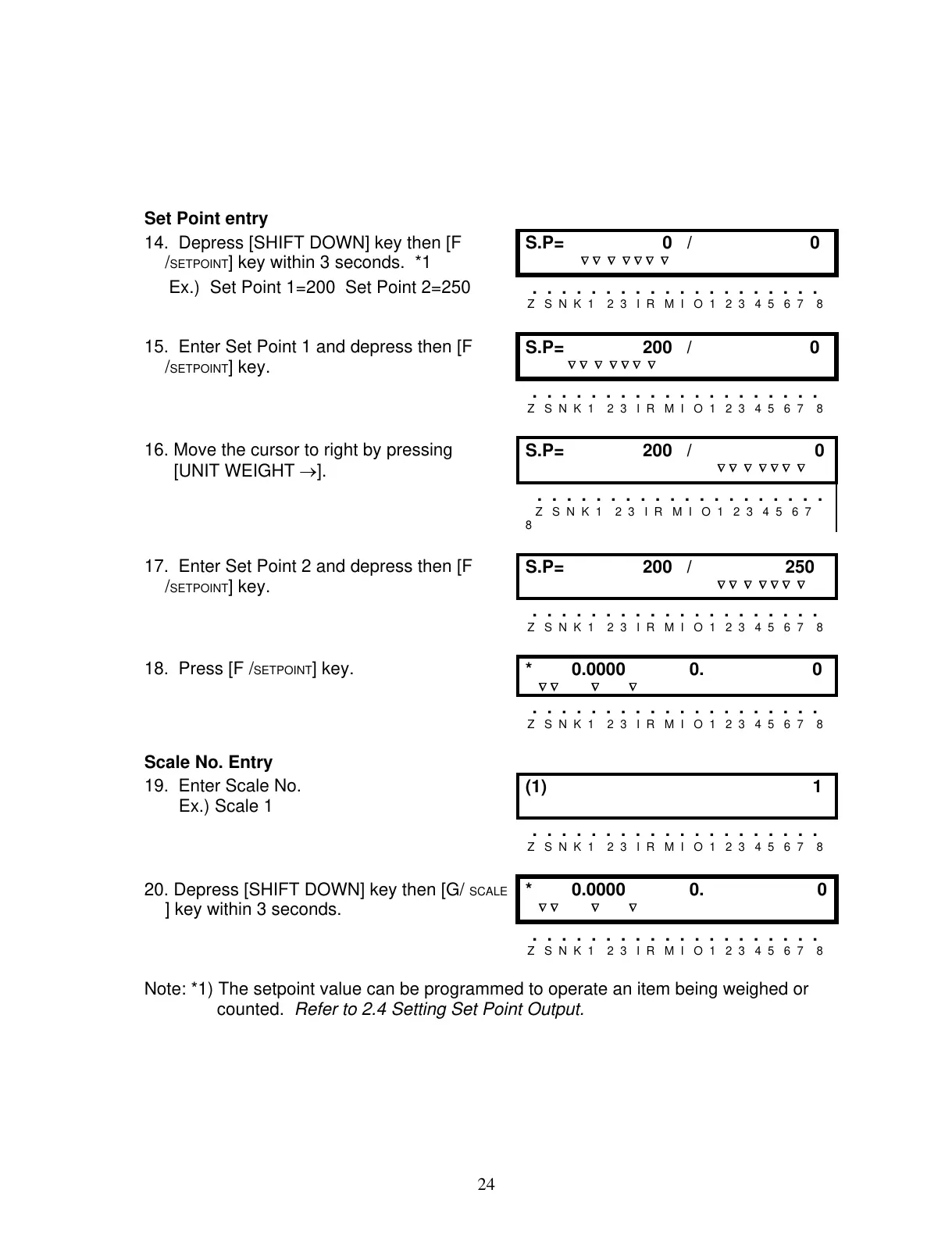

Set Point entry
14. Depress [SHIFT DOWN] key then [F
/SETPOINT] key within 3 seconds. *1
S.P= 0 / 0
∇ ∇ ∇ ∇ ∇ ∇ ∇
Ex.) Set Point 1=200 Set Point 2=250
. . . . . . . . . . . . . . . . . . . .
Z S N K 1 2 3 I R M I O 1 2 3 4 5 6 7 8
15. Enter Set Point 1 and depress then [F
/SETPOINT] key.
S.P= 200 / 0
∇ ∇ ∇ ∇ ∇ ∇ ∇
. . . . . . . . . . . . . . . . . . . .
Z S N K 1 2 3 I R M I O 1 2 3 4 5 6 7 8
16. Move the cursor to right by pressing
[UNIT WEIGHT →].
S.P= 200 / 0
∇ ∇ ∇ ∇ ∇ ∇ ∇
. . . . . . . . . . . . . . . . . . . .
Z S N K 1 2 3 I R M I O 1 2 3 4 5 6 7
8
17. Enter Set Point 2 and depress then [F
/SETPOINT] key.
S.P= 200 / 250
∇ ∇ ∇ ∇ ∇ ∇ ∇
. . . . . . . . . . . . . . . . . . . .
Z S N K 1 2 3 I R M I O 1 2 3 4 5 6 7 8
18. Press [F /SETPOINT] key.
* 0.0000 0. 0
∇ ∇ ∇ ∇
. . . . . . . . . . . . . . . . . . . .
Z S N K 1 2 3 I R M I O 1 2 3 4 5 6 7 8
Scale No. Entry
19. Enter Scale No.
Ex.) Scale 1
(1) 1
. . . . . . . . . . . . . . . . . . . .
Z S N K 1 2 3 I R M I O 1 2 3 4 5 6 7 8
20. Depress [SHIFT DOWN] key then [G/ SCALE
] key within 3 seconds.
* 0.0000 0. 0
∇ ∇ ∇ ∇
. . . . . . . . . . . . . . . . . . . .
Z S N K 1 2 3 I R M I O 1 2 3 4 5 6 7 8
Note: *1) The setpoint value can be programmed to operate an item being weighed or
counted. Refer to 2.4 Setting Set Point Output.
