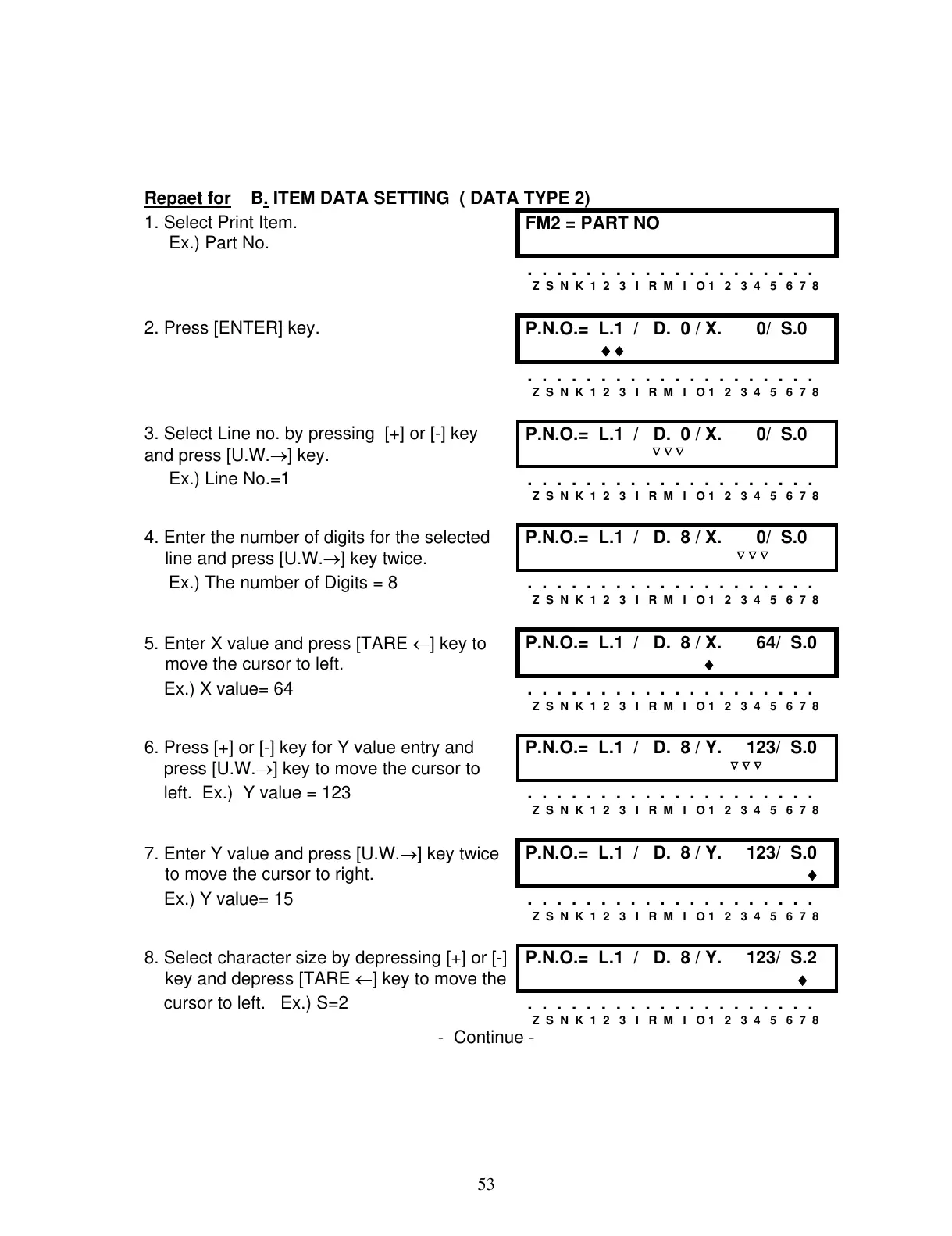

Repaet for B. ITEM DATA SETTING ( DATA TYPE 2)
1. Select Print Item.
Ex.) Part No.
FM2 = PART NO
. . . . . . . . . . . . . . . . . . . .
Z S N K 1 2 3 I R M I O 1 2 3 4 5 6 7 8
2. Press [ENTER] key.
P.N.O.= L.1 / D. 0 / X. 0/ S.0
♦♦
. . . . . . . . . . . . . . . . . . . .
Z S N K 1 2 3 I R M I O 1 2 3 4 5 6 7 8
3. Select Line no. by pressing [+] or [-] key
and press [U.W.→] key.
P.N.O.= L.1 / D. 0 / X. 0/ S.0
∇ ∇ ∇
Ex.) Line No.=1
. . . . . . . . . . . . . . . . . . . .
Z S N K 1 2 3 I R M I O 1 2 3 4 5 6 7 8
4. Enter the number of digits for the selected
line and press [U.W.→] key twice.
P.N.O.= L.1 / D. 8 / X. 0/ S.0
∇ ∇ ∇
Ex.) The number of Digits = 8
. . . . . . . . . . . . . . . . . . . .
Z S N K 1 2 3 I R M I O 1 2 3 4 5 6 7 8
5. Enter X value and press [TARE ←] key to
move the cursor to left.
P.N.O.= L.1 / D. 8 / X. 64/ S.0
♦
Ex.) X value= 64
. . . . . . . . . . . . . . . . . . . .
Z S N K 1 2 3 I R M I O 1 2 3 4 5 6 7 8
6. Press [+] or [-] key for Y value entry and
press [U.W.→] key to move the cursor to
P.N.O.= L.1 / D. 8 / Y. 123/ S.0
∇ ∇ ∇
left. Ex.) Y value = 123
. . . . . . . . . . . . . . . . . . . .
Z S N K 1 2 3 I R M I O 1 2 3 4 5 6 7 8
7. Enter Y value and press [U.W.→] key twice
to move the cursor to right.
P.N.O.= L.1 / D. 8 / Y. 123/ S.0
♦
Ex.) Y value= 15
. . . . . . . . . . . . . . . . . . . .
Z S N K 1 2 3 I R M I O 1 2 3 4 5 6 7 8
8. Select character size by depressing [+] or [-]
key and depress [TARE ←] key to move the
P.N.O.= L.1 / D. 8 / Y. 123/ S.2
♦
cursor to left. Ex.) S=2
. . . . . . . . . . . . . . . . . . . .
Z S N K 1 2 3 I R M I O 1 2 3 4 5 6 7 8
- Continue -
