(8) Remove overdrive accumulator and springs
(Fig. 19) (Fig. 20).
CAUTION: Tag the springs for the Overdrive Accu-
mulator so that they are not confused with the
springs in the Low/Reverse Accumulator.
(9) Remove the low/reverse accumulator snap ring
(Fig. 21).
(10) Remove the low/reverse accumulator plug
(Fig. 22).

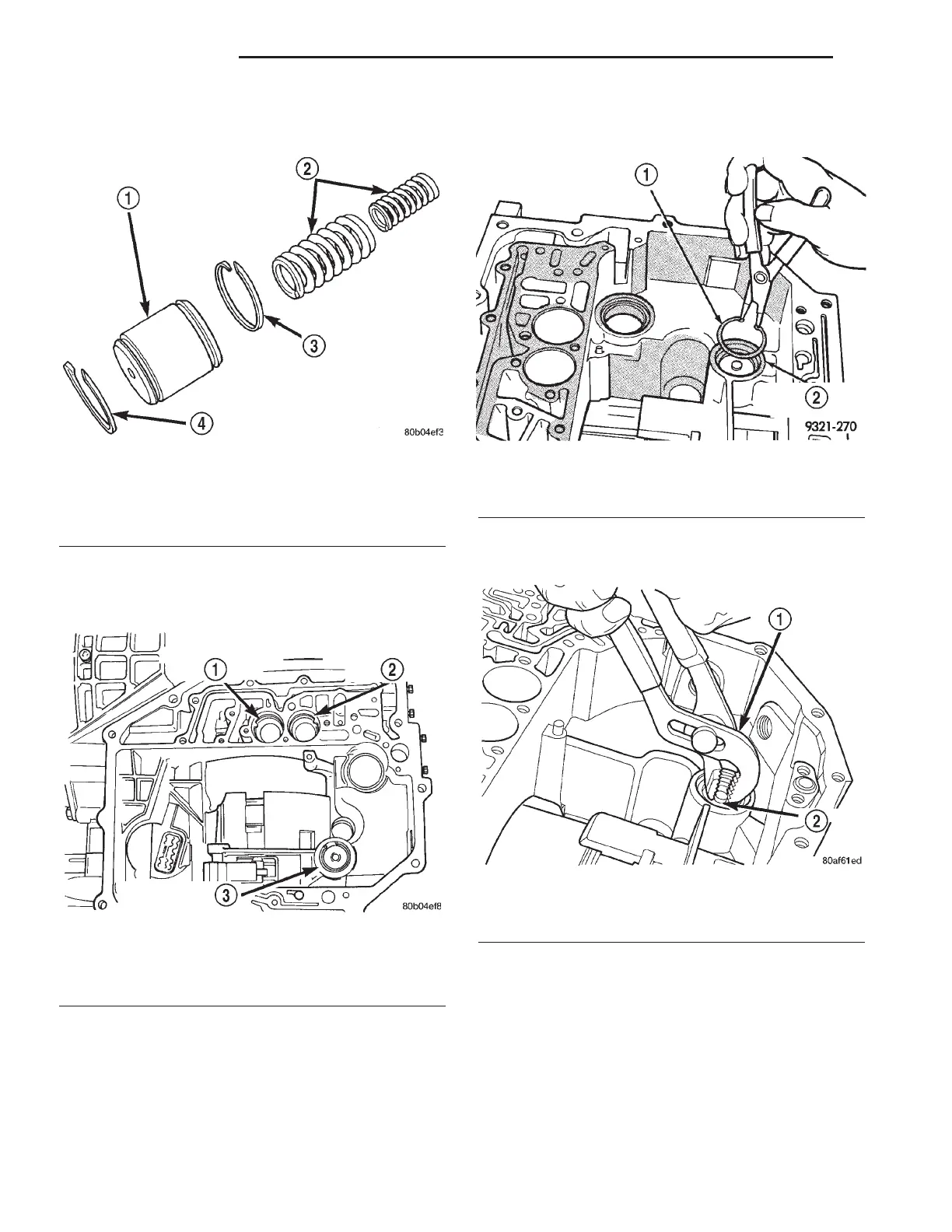

Fig. 19 Remove Overdrive Accumulator and Springs
1 - OVERDRIVE ACCUMULATOR PISTON
2 - RETURN SPRINGS
3 - SEAL RING
4 - SEAL RING
Fig. 20 Accumulator Location
1 - OVERDRIVE ACCUMULATOR LOCATION
2 - UNDERDRIVE ACCUMULATOR LOCATION
3 - LOW/REVERSE ACCUMULATOR
Fig. 21 Remove Low/Reverse Accumulator
1 - SNAP RING
2 - LOW/REVERSE ACCUMULATOR
Fig. 22 Remove Low/Reverse Accumulator Plug
1 - ADJUSTABLE PLIERS
2 - PLUG
21 - 14 TRANSAXLE LH
42LE AUTOMATIC TRANSAXLE (Continued)
