Dodge Intrepid - Page 564

(18) Remove cooler by-pass valve (Fig. 31).
(19) Remove #1 caged needle bearing (Fig. 32).
(20) Remove input clutch assembly (Fig. 33).
(21) Remove #4 thrust plate (Fig. 34).

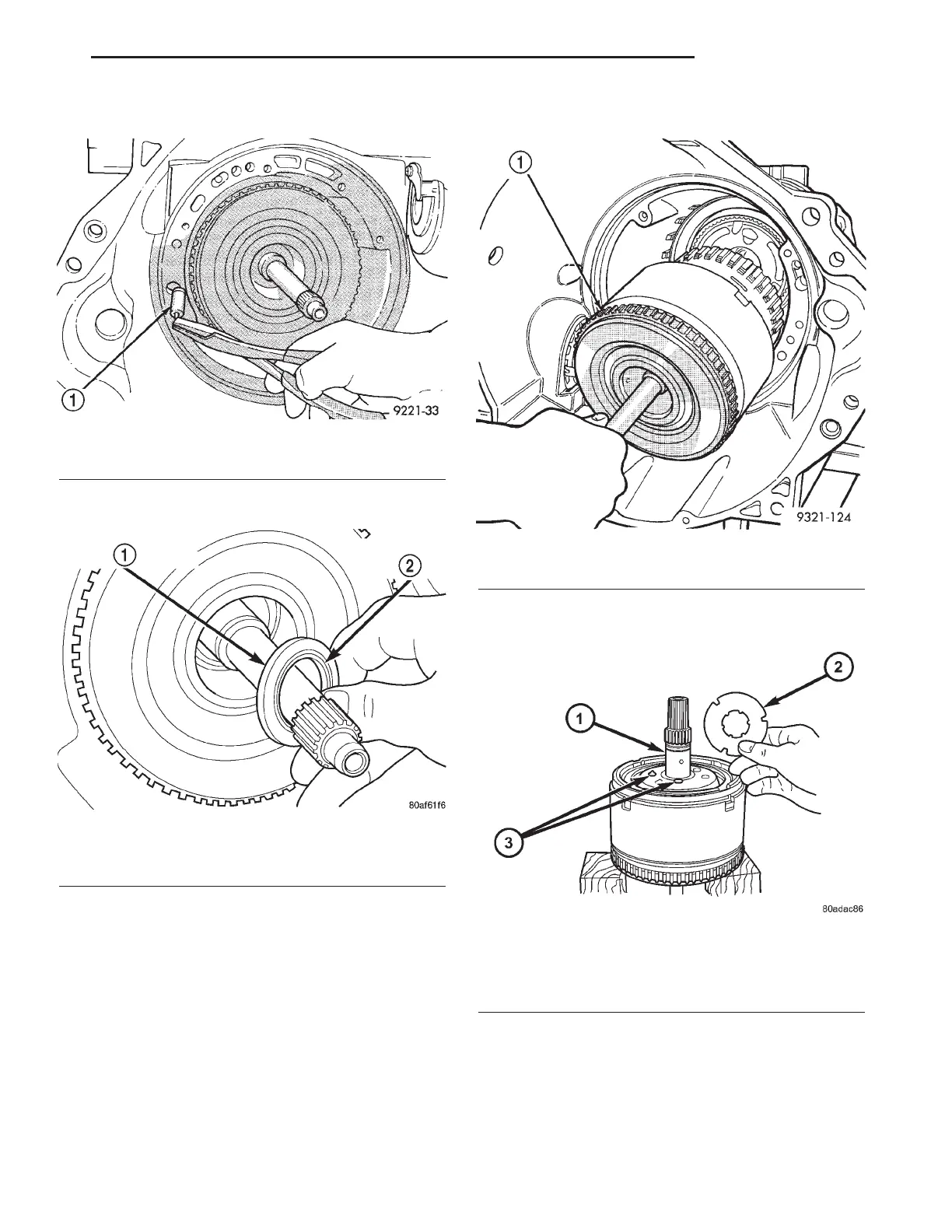

Fig. 31 Remove By-Pass Valve
1 - BYPASS VALVE
Fig. 32 Remove No. 1 Caged Needle Bearing
1 - #1 CAGED NEEDLE BEARING
2 - NOTE: TANGED SIDE OUT
Fig. 33 Remove Input Clutch Assembly
1 - INPUT CLUTCH ASSEMBLY
Fig. 34 No. 4 Thrust Plate
1 - OVERDRIVE SHAFT ASSEMBLY
2 - #4 THRUST PLATE (SELECT)
3 - PETROLATUM (FOR RETENTION)
LH TRANSAXLE 21 - 17
42LE AUTOMATIC TRANSAXLE (Continued)
