(14) Apply Mopart ATF RTV (MS-GF41) as shown
in (Fig. 99). Install main sump baffle to transaxle
case (Fig. 100) and torque screw to 5 N·m (45 in.
lbs.).
CAUTION: When reinstalling drive chains, the blue
link must face outward.
(15) Install output sprocket spacer (Fig. 101).

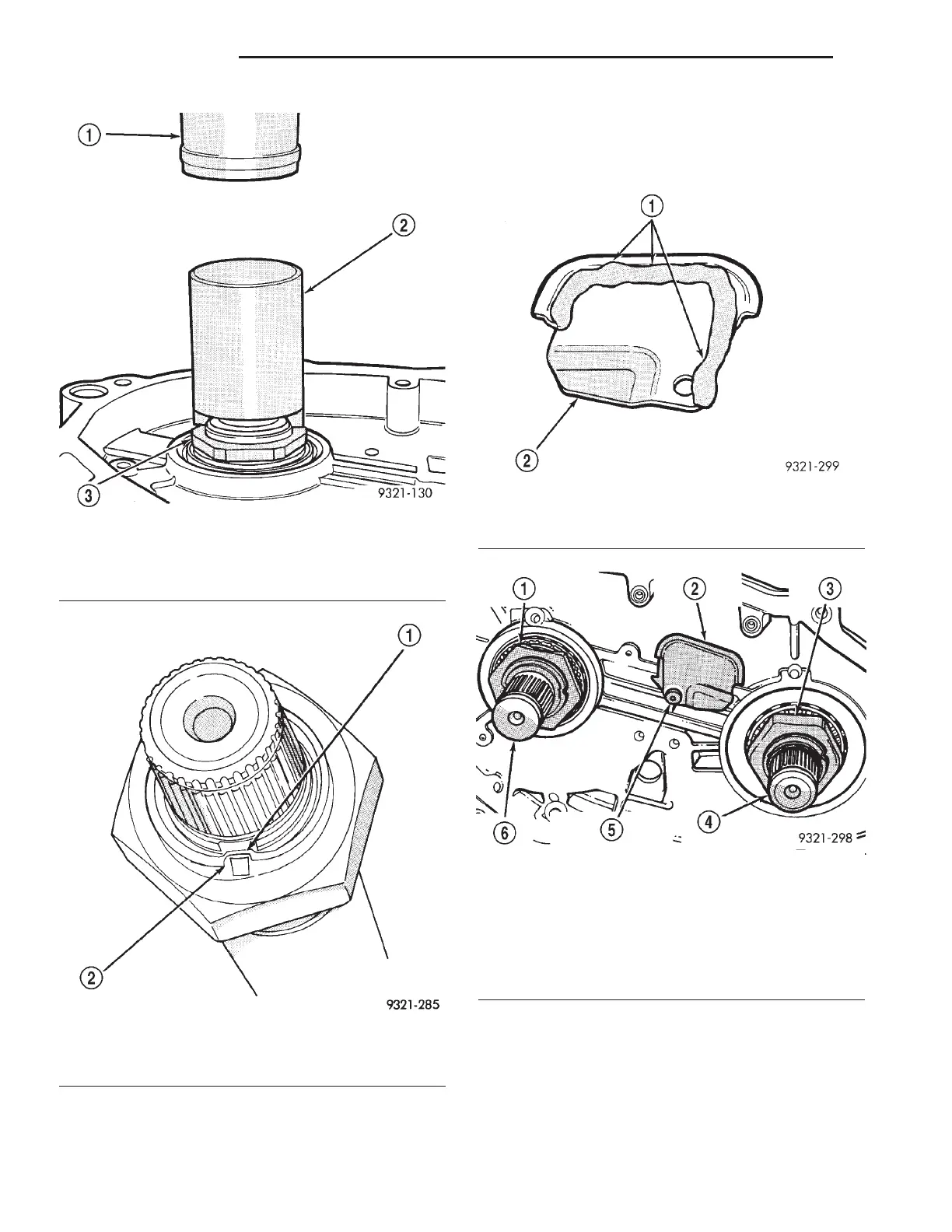

Fig. 97 Staking Output Shaft Nut
1 - ARBOR PRESS
2 - STAKING TOOL
3 - NEW NUT
Fig. 98 Properly Staked Nut
1 - BOTTOMED IN SLOT
2 - CORRECTLY STAKED NUT
Fig. 99 Properly Applied Sealant
1 - SEALANT
2 - BACK SIDE OF VENT BAFFLE
Fig. 100 Main Sump Vent Baffle Location
1 - OUTPUT SHAFT NUT
2 - MAIN SUMP VENT BAFFLE
3 - TRANSFER SHAFT NUT
4 - TRANSFER SHAFT
5 - VENT BAFFLE RETAINING SCREW
6 - OUTPUT SHAFT
21 - 34 TRANSAXLE LH
42LE AUTOMATIC TRANSAXLE (Continued)
