CAUTION: The chain sprockets have a slip fit onto
the shafts. Apply only a slight amount of pressure
to the chain spreader to release the chain pressure.
If chain sprockets are not spread slightly, installa-
tion will be difficult.
(16) Install transfer chain and sprockets to trans-
fer shaft and output shaft (Fig. 102).
(17) Remove chain spreader (Fig. 103).
(18) Install transfer shaft sprocket snap rings and
wave washers (Fig. 104) (Fig. 105).
CAUTION: Be sure to reinstall the chain snubber
and chain oiler when reassembling.

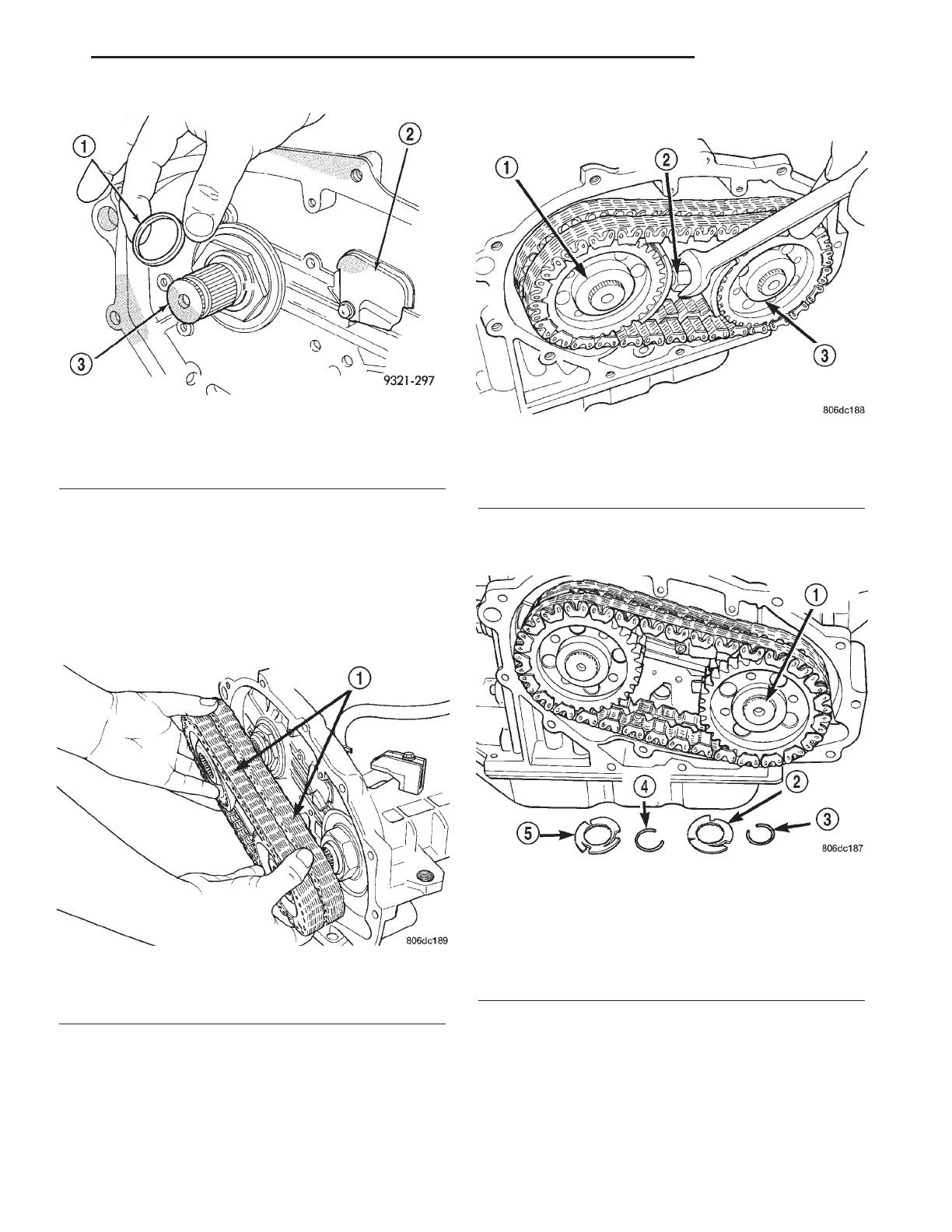

Fig. 101 Output Sprocket Spacer
1 - OUTPUT SPROCKET SPACER
2 - VENT BAFFLE
3 - OUTPUT SHAFT
Fig. 102 Install Chains and Both Sprockets as an
Assembly
1 - CHAINS
Fig. 103 Remove Chain Spreader
1 - OUTPUT SPROCKET
2 - SPECIAL TOOL 6550
3 - TRANSFER SPROCKET
Fig. 104 Install Transfer Shaft Sprocket Snap Ring
and Wave Washer
1 - TRANSFER SHAFT
2 - WAVE WASHER
3 - SNAP RING
4 - SNAP RING
5 - WAVE WASHER
LH TRANSAXLE 21 - 35
42LE AUTOMATIC TRANSAXLE (Continued)
