(19) Install transfer chain snubber (Fig. 106) and
torque screws to 5 N·m (45 in. lbs.).
(20) Install chain oiler (Fig. 107) and torque screw
to 5 N·m (45 in. lbs.).
(21) Stand trans upright on bellhousing
(22) Install chain cover (Fig. 108). Chain cover
must be free of old sealant, dirt and oil before
applying new sealant. Apply a 1/8 inch bead of
Mopart ATF RTV (MS-GF41) to flange of cover.

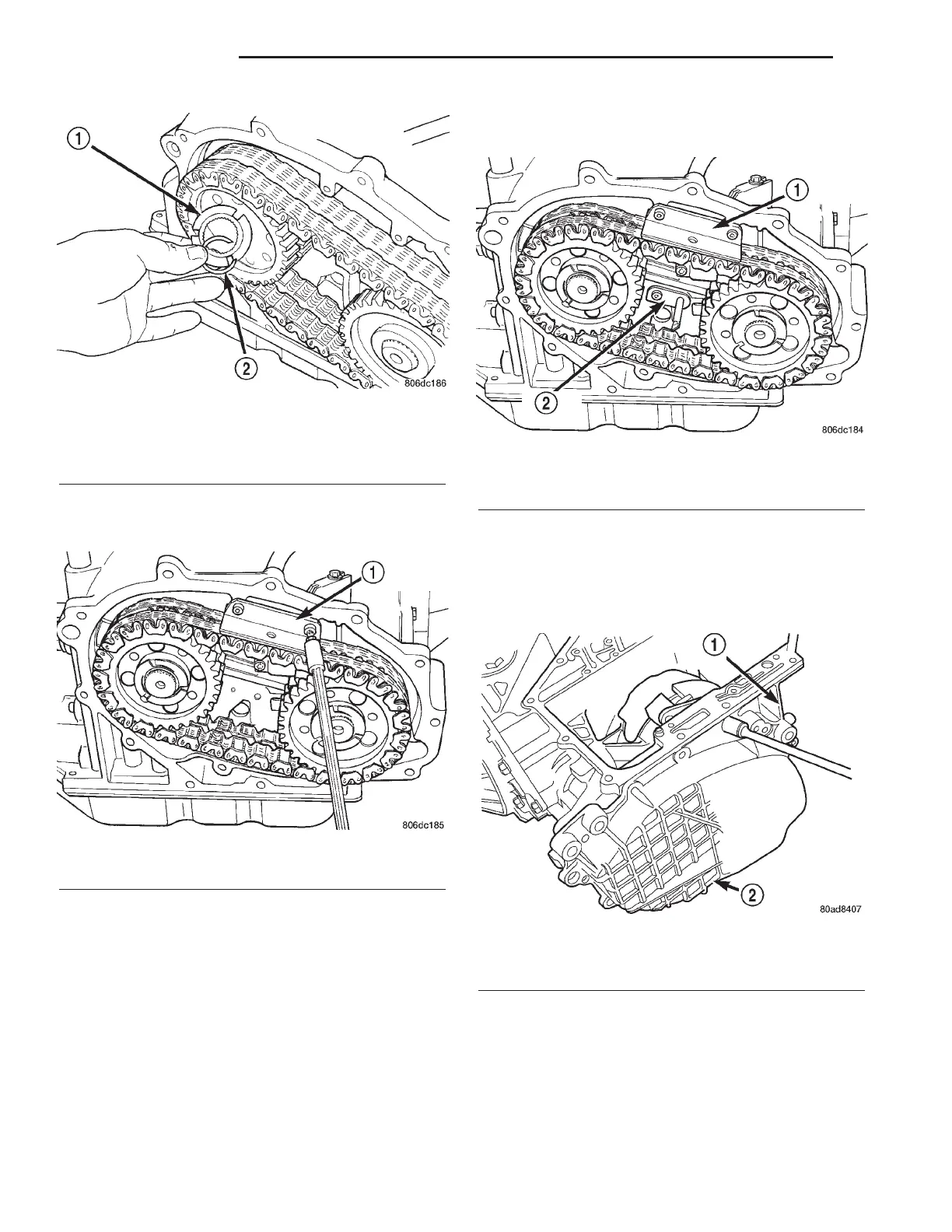

Fig. 105 Install Output Shaft Sprocket Snap Ring
and Wave Washer
1 - WAVE WASHER
2 - SNAP RING
Fig. 106 Install Chain Snubber
1 - CHAIN SNUBBER
Fig. 107 Install Chain Oiler
1 - CHAIN SNUBBER
2 - CHAIN OILER
Fig. 108 Install Chain Cover
1 - TRANSAXLE CASE
2 - CHAIN COVER
21 - 36 TRANSAXLE LH
42LE AUTOMATIC TRANSAXLE (Continued)
